A Guide to the 1998-2014 Chevrolet Corvette Starter Motor
Everything C5 and C6 owners need to know about choosing the right new aftermarket starter.
- Heat soak is the most common starter-related problem for 1998-2014 Corvettes; a slow or no-start condition when the engine is hot.
- Aftermarket high-torque, gear-reduction starters from brands like Powermaster are a popular upgrade to combat heat soak and provide more cranking power.
- Replacement is a moderately difficult DIY job because a section of the exhaust pipe usually must be removed to access the starter.
- Symptoms like a single click, rapid clicking, or a slow crank all point toward a failing starter, but you should always check the battery and cables first.
Common Symptoms of a Failing Corvette Starter
When your Corvette's starter begins to fail, it will usually give you a few warning signs. Ignoring them can leave you stranded. Here’s what to look and listen for:
- Single Loud Click: You turn the key, hear one loud "click," but the engine doesn't crank. This often points to a bad starter solenoid, which is part of the starter assembly.
- Rapid Clicking Noise: A fast clicking or chattering sound when trying to start usually means the starter isn't getting enough power. While this is often a sign of a weak or dead battery, it can also be caused by a failing starter solenoid or poor electrical connections.
- Slow Engine Crank: If the engine turns over much slower than usual, it can indicate a weak starter motor that is struggling to spin the engine.
- No Sound at All: If there's no sound when you try to start the car, it could be a completely dead starter, a bad ignition switch, or a failed starter relay.
- Grinding Noise: A grinding sound during or after the engine starts can mean the starter gear is not disengaging correctly from the flywheel, which can cause serious damage.
The Corvette "Hot Start" Problem (Heat Soak)
A very common issue for C5 (1997-2004) and C6 (2005-2013) Corvettes is "heat soak." This happens when the starter gets so hot from the nearby exhaust manifolds or headers that it fails to work properly. The primary symptom is the car starting perfectly when cold, but cranking very slowly or not at all after it has been driven and is fully warmed up. The heat increases electrical resistance in the starter's components, particularly the solenoid, preventing it from functioning until it cools down.
🎬 Watch this detailed explanation of how heat soak affects your Corvette.Choosing the Right Aftermarket Starter
When replacing your starter, you have several options. While an OEM starter from the dealer is available, the aftermarket offers a wider variety of choices that can provide better performance, especially for solving the heat soak issue.
OEM-Style vs. High-Torque & Gear Reduction Starters
ACDelco is the original equipment manufacturer for GM and offers both new and remanufactured starters that are a direct fit. Their "Gold" line is a popular professional-grade aftermarket option. These are a reliable choice for a stock vehicle. However, many aftermarket brands like Powermaster, MSD, and Proform offer high-torque, gear-reduction starters. These starters use a different internal design to produce more cranking power with less electrical draw. They are often smaller and lighter than the stock unit and are specifically designed to overcome the compression of modified engines and resist heat soak.
For Corvettes with aftermarket headers or those that suffer from heat soak, a high-torque gear-reduction starter with a heat shield or thermal wrap is highly recommended. Brands like Powermaster are frequently mentioned by owners as a solution to this problem.
Brand Tiers for Aftermarket Corvette Starters
- Premium Performance (High-Torque/Heat Resistant): Brands like Powermaster and MSD are considered top-tier choices for performance and durability, especially for modified cars or those with heat issues. They often feature adjustable mounting blocks and encapsulated solenoids to fight heat.
- Quality Aftermarket (OEM-Equivalent): ACDelco (Gold/Professional series) and MPA offer new starters that meet or exceed original specifications. They are a solid choice for daily drivers or stock Corvettes looking for reliable, straightforward replacement.
- Value-Oriented: Brands like Proform and Mr. Gasket can offer functional replacements at a more budget-friendly price point, sometimes including performance features like gear reduction.
Cost to Replace a 1998-2014 Corvette Starter
The cost can vary significantly based on the part you choose and who does the labor. The job is more complex than on many cars because a portion of the exhaust system often needs to be removed for access.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter | $97 - $550 |
| New OEM Starter | $258 - $484 |
| Shop Labor | $161 - $236 |
| Total Professional Replacement | $419 - $720+ |
Frequently Asked Questions
Is replacing the starter a DIY job?
For an experienced DIY mechanic, yes. However, it is a challenging job. The car must be safely lifted on jack stands, and on most models, a section of the exhaust (like the X-pipe or intermediate pipe) must be unbolted and lowered to access the starter. This can be difficult without a vehicle lift. 🎬 Follow this step-by-step guide to replacing your Corvette's starter motor. The job typically takes a professional mechanic 1-2 hours.
Do I need to replace anything else with the starter?
It's a good idea to inspect the battery cables and ground connections for corrosion or damage, as this can cause similar starting problems. When the exhaust is removed, you may also need to replace the exhaust gaskets. Some owners also upgrade the main power and ground wires with a "hot start kit" to ensure maximum voltage reaches the starter.

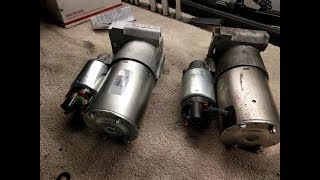

🎬 See a C6 Z06 starter installation and heat soak theory explained.Are there any recalls for the Corvette starter?
As of early 2026, there are no specific NHTSA recalls for starter motor failure on the 1998-2014 Chevrolet Corvette. However, individual owner complaints have been filed related to starter issues.
What is a gear reduction starter and do I need one?
A gear reduction starter uses internal gears to multiply the motor's torque, allowing it to spin the engine with more force while drawing less power. They are often smaller and more efficient. You don't necessarily need one for a stock Corvette, but they are an excellent upgrade for cars with high-compression engines or those suffering from heat soak, as they overcome resistance more easily.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10465385 19338752 323-1625 337-1201
The starter is a 12-volt, high-current electric motor. For the C5/C6 Corvette, it is typically a PG260-series permanent magnet gear reduction (PMGR) design. Aftermarket options often feature higher torque ratings (e.g., 1.7kW to 2.0kW) and may have adjustable mounting blocks for improved clearance with aftermarket headers.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
