Volkswagen Beetle Engine Cooling Fan Module Guide (1998-2015)
Is your Beetle overheating or are the fans acting strange? Here’s what you need to know about the cooling fan module.
- A bad module can cause overheating, a dead battery, or poor A/C performance.
- Before replacing the module, ALWAYS check the fuses on top of the battery for melting or corrosion.
- It is normal for fans to run for up to 15 minutes after the car is turned off.
- Aftermarket quality varies greatly; compare brands and check the part number (1J0 919 506 K is common) before buying.
Is Your Beetle's Cooling Fan Module Failing?
A bad cooling fan module on a 1998-2015 Volkswagen Beetle can cause some very noticeable problems. Because this part controls the fans that pull air across your radiator, a failure can quickly lead to engine overheating. Understanding the symptoms can help you figure out if the module is the problem.
Key Failure Symptoms
- Engine Overheating at Idle: The most serious symptom. If your temperature gauge climbs in stop-and-go traffic but returns to normal on the highway, it’s a classic sign your fans aren't working.
- Fans Run Constantly: The fans stay on at full speed even when the engine is cold or after you've turned the car off. This can drain your battery overnight.
- Fans Don't Turn On: You never hear the fans kick on, even when the engine is hot or the A/C is running. This will lead to overheating.

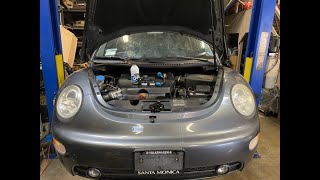

- A/C Blows Warm Air at Stops: 🎬 Watch this diagnosis and repair for Beetle A/C and fan issues. The A/C needs airflow over the condenser to work properly. If the fans aren't running, your A/C might get warm when you're not moving but cool down once you start driving again.
Check This First: The Fuse Box on the Battery
Before you replace the fan module, inspect the fuse box located on top of your battery. The plastic can melt, and the fuses can develop bad connections, causing fan problems that mimic a failed module. A visual check for melted plastic or corroded, crusty fuses can save you from buying a part you don't need.
Choosing the Right Aftermarket Fan Module
When shopping for a new aftermarket fan module for your Beetle, you have several options. The quality can vary, so it's important to know what you're buying.
OEM vs. Aftermarket Quality
An Original Equipment (OEM) module from a Volkswagen dealer is the safest bet for fit and function but comes at a high price. Aftermarket parts are much more affordable, but quality can be inconsistent. Some aftermarket brands may use lower-quality components that don't last as long. For a critical part like this, it's often a trade-off between cost and peace of mind. Some owners have had success with aftermarket parts, while others report they fail quickly or don't work correctly from the start.
Aftermarket Brand Tiers
- Higher-Tier Aftermarket (Beck Arnley, Gates, Standard Ignition): These brands often have a better reputation. Gates is well-known for quality cooling system components, and Standard Ignition (SMP) is a major electronics supplier. Beck Arnley aims to provide OE-quality parts, but as a re-boxer, the actual manufacturer can vary; sometimes you get a high-quality part, and other times it might be a cheaper unit.

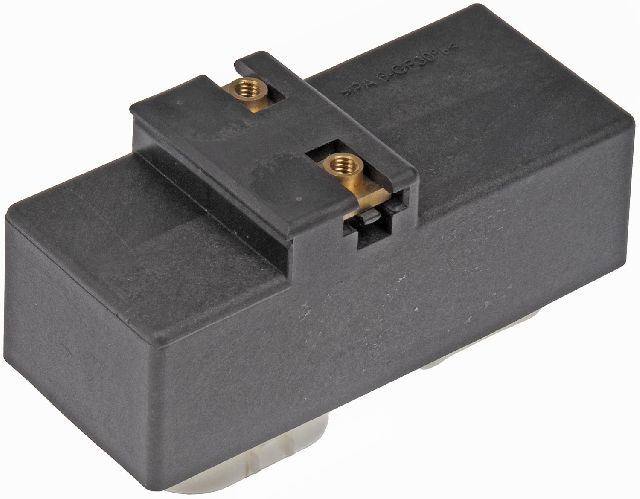

- Value-Priced Aftermarket (Dorman, Skyward): Dorman is a very common brand with wide availability. Their parts usually fit correctly, but long-term reliability can be a mixed bag according to owner forums. They are a budget-friendly option that can solve the problem. Skyward and other lesser-known brands are typically entry-level choices where cost is the primary focus.
Pro Tip: Check the Part Number
The most common OEM part number for the 1998-2010 Beetle is 1J0 919 506 K. Always verify the part number on your old module before ordering. Different engines and model years can use different modules, and getting the wrong one means it won't work at all.
Cost of Replacing a VW Beetle Fan Module
| Part Type | Estimated Part Cost | Estimated Labor Cost |
|---|---|---|
| New Aftermarket | $52 - $290 | $120 - $250 |
| New OEM (Dealer) | $300 - $450+ |
Costs are estimates and can vary by location and the specific part chosen.
Frequently Asked Questions
Can I drive with a bad cooling fan module?
It is not recommended. If your fans are not working, your engine will overheat in traffic, which can cause severe and expensive damage like a blown head gasket. If the fans are stuck on, you risk draining your battery and being stranded.
Is it normal for the fans to run after I turn the car off?
Yes, this can be normal. According to a Volkswagen Technical Service Bulletin (TSB), the fans can continue to run for up to 15 minutes after shutting the engine off to help cool it down. This is called the "after-run" cycle. If they run for longer than that or drain your battery, you may have a problem.
Can I replace the fan module myself?
Yes, this is a DIY-friendly job for someone with moderate mechanical skills. On most 1998-2010 Beetles, the module is located under the battery tray. You will need to remove the battery and its tray 🎬 Watch a step-by-step walkthrough of the fan module replacement process. to access the two bolts holding the module. Some owners have successfully replaced it from underneath the car to save time. 🎬 See this clever hack for replacing the module from underneath. You'll need basic tools like a ratchet, sockets, and possibly Torx bits.
My new module didn't fix the problem. What else could it be?
The cooling fan system has several parts that can fail. Besides the module, check the fuses on the battery, the fan motors themselves (especially the low-speed resistor), the coolant temperature sensor, and the wiring connectors for corrosion or damage.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1J0919506K 1J0919506M 1J0919506H

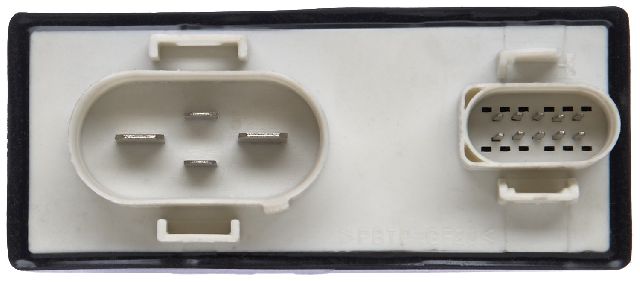

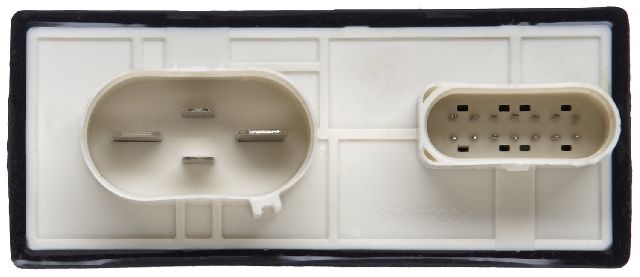

Controls the speed and operation of one or two radiator cooling fans based on inputs from the ECM, coolant temperature sensor, and A/C system. Typically features one 14-pin and one 4-pin connector for the 1998-2010 models.
