Engine Coolant Thermostat Guide for the 1999-2003 Lexus RX300
Keep your RX300's engine from overheating by understanding its thermostat.
- A failing thermostat on the RX300 will likely cause overheating, slow warm-up, or a P0128 check engine light code.
- For reliability, choose an OEM-supplier brand like Aisin or Beck Arnley.
- The correct thermostat for the RX300 opens at 180°F (82°C); using a different temperature can cause issues.
- Always replace the thermostat gasket and the water inlet O-ring to prevent leaks.
Symptoms of a Failing Thermostat
A bad thermostat can cause problems that are easy to spot. The most common issues are related to engine temperature. If the thermostat fails in the closed position, your engine will overheat. If it fails while open, your engine will take a very long time to warm up, especially in cold weather. 🎬 Watch this video to see common symptoms of a stuck thermostat. This can also trigger a check engine light.
Check Engine Light Codes
A failing thermostat on the RX300 often causes the check engine light to come on. Common trouble codes include P0128 (Coolant Temperature Below Thermostat Regulating Temperature) and P0125 (Insufficient Coolant Temperature for Closed Loop Fuel Control). While P0125 can sometimes be related to other sensors, it frequently points to a thermostat that is stuck open.

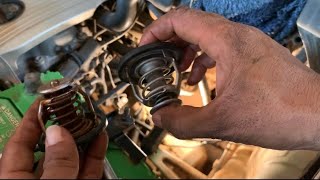

🎬 See how to diagnose a P0128 code on your RX300.Choosing the Right Aftermarket Thermostat
When replacing the thermostat on your RX300, you have a choice between Original Equipment (OE) and aftermarket parts. For a critical part like the thermostat, quality matters.
OEM vs. Aftermarket Quality
The original thermostat on your Lexus was made to a very high standard. Many owners and mechanics prefer to use an OEM or an OEM-supplier part to ensure reliability. Aftermarket parts can be a good value, but quality can vary significantly between brands. Some lower-quality aftermarket thermostats may not be as durable or may not regulate temperature as precisely as the original part.
Aftermarket Brand Tiers for Your RX300
Based on owner feedback and brand reputation, here is a breakdown of the available aftermarket brands:
- Top Tier (OEM Supplier Quality): Aisin is an OEM supplier to Toyota/Lexus, and their thermostats are considered equivalent to the original part. Beck Arnley often repackages OEM parts, so there is a high chance you are getting an original quality part in their box. Calorstat by Vernet is also noted as an OE supplier for Toyota and Lexus. These are your best choices for a reliable, long-lasting replacement.
- Mid Tier (Reputable Aftermarket): Gates is a well-known brand in the aftermarket and offers thermostats that meet OE temperature specifications. They are a solid choice if a top-tier brand is not available.
- Entry Tier (Budget-Focused): Brands like Motorad and Facet are more budget-friendly. However, some owners have reported inconsistent quality and shorter lifespans with these brands compared to OEM or top-tier options. For a critical component like a thermostat, it is often worth spending a little more for a higher-quality part to avoid future issues.
- Specialty: Mishimoto offers racing thermostats that open at a lower temperature. These are designed for modified or high-performance vehicles and are not necessary for a stock RX300. Using a thermostat that opens too early can lead to poor engine performance and check engine lights.
Pro Tip: Always Replace the Gasket
The thermostat uses a rubber gasket to create a seal. Always use a new gasket when replacing the thermostat to prevent coolant leaks. Most quality thermostat kits will include a new gasket.
Common Ordering Mistakes
The most common mistake is not getting the correct temperature rating. For the 1999-2003 RX300, the standard OE temperature is 180°F (82°C). Using a thermostat with a different temperature rating can affect engine performance and fuel economy. Also, ensure the thermostat you purchase comes with the small "jiggle pin," which is important for allowing trapped air to escape the cooling system.
Frequently Asked Questions (FAQ)
Q: Where is the thermostat located on the 1999-2003 Lexus RX300?
A: The thermostat is located on the driver's side of the engine, behind the air filter box. You need to follow the large coolant hose from the bottom of the radiator to the engine block to find the thermostat housing.
Q: Is replacing the thermostat a difficult job?
A: It is considered a moderately difficult job for a DIY mechanic. Access is tight, and you will need to remove the air filter box and battery to get to it. It typically takes 2-3 hours. If you are not comfortable working in tight spaces, it may be best to have a professional mechanic do the job.
🎬 Follow this step-by-step guide to replace your thermostat.Q: Are there any recalls for the thermostat on the RX300?
A: No, there are no specific recalls or Technical Service Bulletins (TSBs) from Lexus or the NHTSA for the engine coolant thermostat on the 1999-2003 RX300.
Q: Should I flush the coolant when I replace the thermostat?
A: Yes, since you will lose a significant amount of coolant during the replacement, it is a perfect time to drain the old coolant and refill the system with new, manufacturer-approved coolant.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90916-03129 90916-A3003
Opening Temperature: 180°F (82°C). Must include jiggle pin.
