Lexus RX300 (1999-2003) Engine Intake Manifold Gasket Replacement Guide
Address vacuum leaks and poor engine performance by understanding how to choose the right intake manifold gasket set for your RX300.
- A Check Engine Light with codes P0171 or P0174 is the most common sign of a failed intake manifold gasket on your RX300.
- High-quality aftermarket brands like Beck Arnley and Victor Gaskets are excellent alternatives to expensive OEM parts.
- Labor is the most expensive part of this repair; expect a total cost of $876-$1,076 at a shop.
- While replacing the gaskets, it's cost-effective to also service other accessible parts like the PCV valve and spark plugs.
Signs of a Failing Intake Manifold Gasket on Your RX300
When the intake manifold gaskets on the 1MZ-FE engine begin to fail, they typically create a vacuum leak. This is the most common issue for the 1999-2003 RX300. Unlike some engines, major coolant leaks from this gasket are less common, but not impossible. You should watch for a collection of symptoms that point toward a bad gasket.
Key Failure Symptoms
- Check Engine Light: A vacuum leak will often trigger a Check Engine Light with lean codes like P0171 (System Too Lean Bank 1) or P0174 (System Too Lean Bank 2). 🎬 Watch: How to diagnose these lean codes and vacuum leaks. This is the most frequent and definitive sign for RX300 owners.
- Rough Idle: The engine may idle poorly or shake because the unmetered air is confusing the engine computer, making it hard to maintain a stable air-fuel ratio.
- Reduced Performance & Fuel Economy: Your Lexus may feel less powerful and you'll notice you're visiting the gas station more often. The engine's computer tries to compensate for the extra air by adding more fuel, which hurts efficiency.
- Hissing Sounds: You might hear a distinct whistling or hissing noise coming from the engine bay, which is the sound of air being sucked through the failed gasket.
Choosing the Right Aftermarket Gasket Set
For the RX300, you don't necessarily need to buy an expensive OEM gasket from the dealer. High-quality aftermarket brands offer reliable performance, and some are even made by the same companies that supply Lexus. Here’s a breakdown of the available brands:
- Victor Gaskets (Victor Reinz): Often considered an OEM-quality supplier for many European and some Japanese brands. Their gaskets are known for excellent material quality and fitment. This is a top-tier choice for a reliable, long-lasting repair.

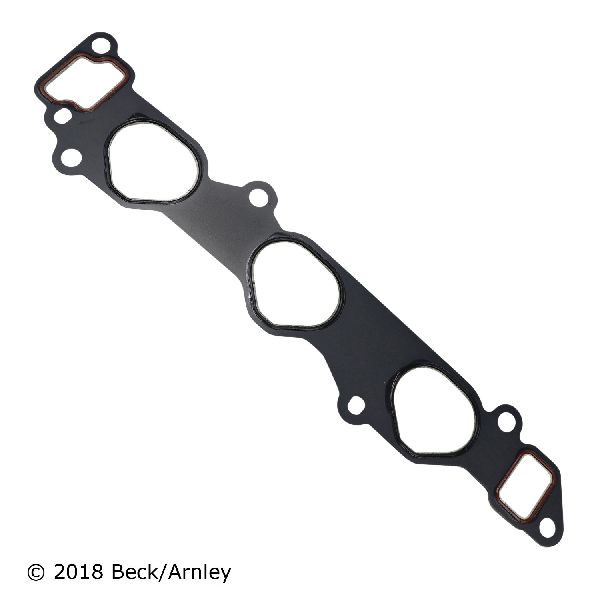

- Beck Arnley: This brand is well-known for often repackaging original equipment manufacturer (OEM) parts from Japan. When you buy a Beck Arnley gasket, there's a good chance you're getting the same part that Lexus would have used, but in a different box. This makes them a very strong and reliable option.

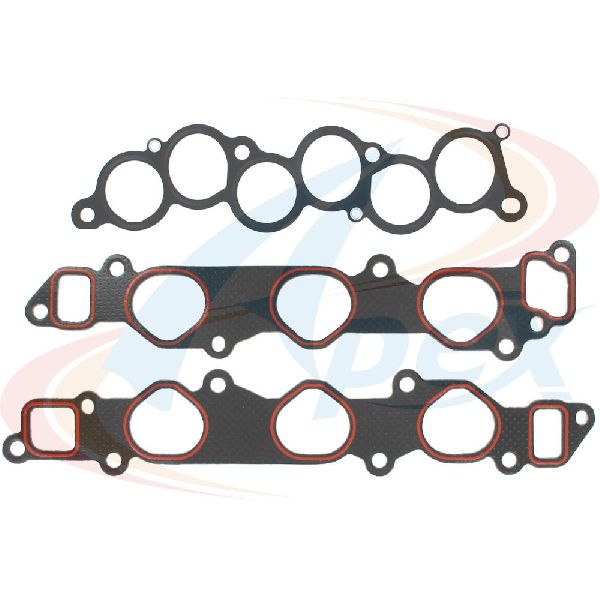

- Apex: Generally viewed as a budget-friendly option. While they can be a viable choice for a quick repair on a tight budget, their long-term durability may not match that of Victor Gaskets or Beck Arnley. For a critical component like an intake gasket, investing a little more in a premium brand is often wise.
Pro Tip: While You're In There
The intake manifold gasket replacement requires significant disassembly. This is the perfect time to inspect and replace other nearby components like vacuum hoses, the PCV valve, and even the spark plugs and valve cover gaskets if they are due for service. Addressing these items at the same time saves you from paying for the same labor twice 🎬 Watch: How to replace the valve cover gaskets while disassembled. down the road.
Cost of Replacing the Intake Manifold Gasket Set
The cost can vary significantly between doing it yourself and having a professional shop perform the work. The labor is the most expensive part of the job due to the location of the manifold.
| Expense | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $58 - $147 |
| Shop Labor | $427 - $627 |
| Total Professional Replacement | $876 - $1,076 |
Frequently Asked Questions (FAQ)
Are there any recalls for the RX300 intake manifold gasket?
No, there are no specific recalls from Lexus or the NHTSA for the intake manifold gaskets on the 1999-2003 RX300. There was a well-known TSB for engine oil sludge on the 1MZ-FE engine, but this is a separate issue from the intake gaskets.
Is this a difficult DIY job?
For an experienced home mechanic, this job is feasible. It requires removing the air intake system, throttle body, and various electrical connectors and hoses to access the manifold bolts. However, it is detailed work. If you are not comfortable with this level of disassembly, it is best left to a professional. The difficulty is moderate, estimated at 3-5 hours.
🎬 See this walkthrough for an easier way to remove the plenum.Can I reuse the old gaskets?
No. Intake manifold gaskets are a one-time-use part. They crush and deform to create a seal when tightened. Once removed, they will never seal properly again. Always use a new gasket set for this repair.
What's the difference between the upper and lower intake gaskets?
The 1MZ-FE engine in your RX300 has a two-piece intake manifold. There is a large gasket for the upper intake manifold (plenum) and a set of two gaskets for the lower intake manifold where it meets the cylinder heads. A complete aftermarket 'set' should include all necessary gaskets for the job. Be sure to verify the contents of the kit you purchase.
Helpful Videos
Technical Specifications
OEM Part Numbers: 17171-20010 17176-62040
The 1999-2003 Lexus RX300 uses a 3.0L 1MZ-FE V6 engine. The intake manifold is a two-piece design, requiring both upper (plenum) and lower manifold gaskets for a complete replacement.
