Engine Coolant Thermostat Guide for 1999-2003 Mazda B2300
Keep your B2300's engine at the right temperature by understanding, diagnosing, and choosing the correct new aftermarket thermostat.
- A failing thermostat can cause overheating (stuck closed) or an engine that runs too cool with no heat (stuck open).
- The 2001.5-2003 B2300 with the 2.3L Duratec engine uses a complex and expensive electrically heated thermostat housing that is prone to leaking.
- The 1999-2001 B2300 with the 2.5L engine has a thermostat that is more difficult to access, potentially increasing labor time.
- For reliability, choose a premium aftermarket brand like Gates or an OEM Motorcraft part, especially given the labor involved in replacement.
Is Your 1999-2003 Mazda B2300 Thermostat Failing?
A bad thermostat can cause problems ranging from annoying to engine-damaging. The key is to recognize the signs early. The thermostat can fail in two ways: stuck open or stuck closed. Each has its own set of symptoms.
Symptoms of a Thermostat Stuck Open
- Engine Takes Too Long to Warm Up: The temperature gauge on your dashboard stays on 'C' or takes a very long time to move to the normal operating range.
- No Cabin Heat: Because the engine isn't getting hot enough, the coolant can't provide sufficient heat for your cabin, which is most noticeable in winter.
- Check Engine Light (P0128 Code): The most common code for a stuck-open thermostat is P0128, which means the engine coolant temperature is below what the computer expects. 🎬 Watch: Diagnosing the P0128 code on a Ford Ranger.
- Poor Fuel Economy: An engine that runs too cool uses more fuel because the computer keeps it in a 'warm-up' mode.
Symptoms of a Thermostat Stuck Closed
- Engine Overheating: This is the most dangerous symptom. The temperature gauge will climb into the red 'H' zone because coolant is blocked from reaching the radiator.
- Coolant Leaks: Extreme pressure from overheating can force coolant out of the reservoir or cause leaks from the thermostat housing itself.
- Gurgling or Rumbling Noises: You might hear sounds from the engine bay as the coolant begins to boil. 🎬 Watch: 5 main symptoms of a thermostat stuck closed.
Engine Differences Matter
The 1999-2001 B2300 uses the 2.5L Lima engine, while the 2001.5-2003 models use the 2.3L Duratec. The 2.3L Duratec from 2001.5-2003 uses an electrically heated thermostat, which is more complex and expensive than the conventional thermostat on the 2.5L. You can use a simpler, non-electric thermostat from a 2004+ model on the 2.3L Duratec, but it will trigger a check engine light.
Choosing the Right Aftermarket Thermostat
When shopping for a new aftermarket thermostat, you'll find several options. Since the B2300 is a rebadged Ford Ranger, parts are widely available. Quality is key, as a failed thermostat can leave you stranded.
Brand Quality Tiers
- Premium Aftermarket (Gates, Motorcraft): Gates is a well-respected brand known for making parts that meet or exceed OEM standards. Motorcraft is Ford's OEM parts brand and is a guaranteed fit and quality choice for your truck. Many owners and mechanics prefer to stick with OEM or premium brands for this critical part.
- Performance (Mishimoto): Mishimoto offers thermostats, sometimes with lower opening temperatures, for performance applications. While high-quality, a lower-temperature thermostat is generally not necessary or recommended for a stock daily-driven truck, as it can affect performance and efficiency.
- Standard Aftermarket (Calorstat, Duralast, etc.): Brands like Calorstat by Vernet are common in the aftermarket. While often more affordable, quality can be inconsistent. For a part this critical and labor-intensive to access (especially on the 2.5L engine), spending a little more for a premium brand is a wise investment to avoid doing the job twice.
For 2.3L Duratec engines, the thermostat is part of a plastic housing that can become brittle and leak. When replacing the thermostat, it is highly recommended to replace the entire housing assembly.

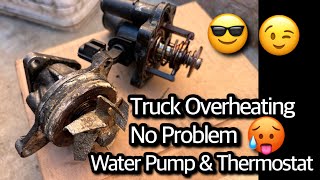

🎬 See this walkthrough for replacing the 2.3L thermostat and housing.Cost of Replacing a 1999-2003 Mazda B2300 Thermostat
Costs can vary based on your engine type and whether you do the work yourself or hire a professional.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $40 - $150 |
| New Aftermarket | $52 - $268 |
| Shop Labor | $150 - $400 |
Note: The 2.3L Duratec's electrically heated thermostat assembly is significantly more expensive than the conventional thermostat for the 2.5L engine. Labor costs can also be higher for the 2.5L model, as the A/C compressor may need to be moved to access the thermostat housing.
Frequently Asked Questions
Can I replace the thermostat myself?
Yes, this is a DIY-feasible job for someone with basic mechanical skills. On the 2.3L Duratec, it is relatively easy, involving the removal of a few bolts and hoses. On the 2.5L Lima engine, access is much tighter, and may require moving the A/C compressor (without disconnecting the lines) to reach the housing bolts. Always ensure the system is cool before starting and be prepared to drain and refill the coolant.
What temperature thermostat do I need?
You should use a thermostat with the OEM-specified temperature, which is typically around 180°F for the 2.3L Duratec and 192°F for the 2.5L Lima engine. Using a thermostat with a different temperature can negatively affect engine performance, fuel economy, and emissions.
Are there any recalls for the thermostat on my B2300?
There are no specific recalls for the engine coolant thermostat on the 1999-2003 Mazda B2300. However, Ford issued a Technical Service Bulletin (TSB 99-16-2) for 2.5L engines regarding casting sand from the engine block clogging the thermostat, causing a stuck-open condition (no heat, P0125 code). The fix requires a full cooling system flush when replacing the thermostat.
My temperature gauge is fluctuating, is it the thermostat?
Erratic temperature gauge readings are a classic sign of a failing thermostat. It could also be caused by air in the cooling system or a faulty coolant temperature sensor. However, the thermostat is the most common culprit.
Helpful Videos
Technical Specifications
OEM Part Numbers: F87Z-8575-AA YS4Z-8575-AA 1L5Z-8575-A 1L5Z-8592-AA
Standard opening temperatures are typically 192°F-195°F for the 2.5L Lima engine and 180°F for the 2.3L Duratec engine. The 2001.5-2003 2.3L Duratec uses an electrically-assisted thermostat integrated into the housing.
