Engine Coolant Thermostat Guide for the 1999-2003 Mazda Protege
Keep your Protege's engine from overheating or running too cold by understanding and choosing the right thermostat.
- A failing thermostat can cause overheating (stuck closed) or a cold-running engine with no heat (stuck open).
- A stuck-open thermostat is the most common cause of a P0128 check engine light code.
- Always replace the rubber O-ring gasket with the thermostat and make sure to bleed all air from the cooling system after the repair.
- For most owners, a standard aftermarket brand like Stant or Gates is a good, cost-effective choice over the more expensive OEM part.
Is Your Protege's Thermostat Failing?
A thermostat is a simple part, but when it fails, it can cause major problems. It can get stuck in two ways: stuck closed or stuck open. Both have clear symptoms you should watch for.
🎬 Watch: A visual guide to common bad thermostat symptoms.Symptoms of a Bad Thermostat
- Engine Overheating: This is the most serious symptom. If the thermostat is stuck closed, coolant can't get to the radiator to cool down. Your temperature gauge will climb into the red, and you might see steam or notice coolant boiling out of the overflow tank.
- Engine Running Cold: If the thermostat is stuck open, coolant flows to the radiator all the time. The engine will take a very long time to warm up, or it may never reach its normal operating temperature, especially in cold weather or on the highway.
- Check Engine Light: A thermostat stuck open will often trigger the Check Engine Light with error code P0128 (Coolant Temperature Below Thermostat Regulating Temperature).
- Poor Heater Performance: If your engine can't get warm, the air blowing from your heater vents will be lukewarm or cold.
- Erratic Temperature Gauge: The needle on your temperature gauge may swing back and forth unpredictably.
Choosing the Right Aftermarket Thermostat
For the 1999-2003 Mazda Protege, the original factory (OEM) thermostat is a reliable choice. However, many aftermarket brands offer good quality at a lower price. Here’s a breakdown of available brands to help you decide.
Brand Quality Tiers
- Premium Aftermarket (OEM Equivalent): Brands like Beck Arnley aim to provide parts that match original equipment form and function, sometimes by repackaging the OEM part itself. While generally reliable, quality can sometimes be inconsistent.
- Standard Aftermarket (Reliable Choices): Stant and Gates are well-known brands with a long history in cooling systems and are generally considered a safe bet for a standard replacement. Calorstat is another well-regarded option. Motorad is a very common and affordable choice, though some users report mixed experiences, particularly with their 'fail-safe' models.
- Performance Upgrade: Mishimoto offers a 'racing' thermostat for the 1.8L and 2.0L Protege. It opens at a lower temperature (169°F) to increase cooling efficiency, which can be beneficial for modified or hard-driven cars but is not necessary for a daily driver.
Pro Tip: The thermostat for the Protege is located on the passenger side of the engine, connected to the lower radiator hose. While replacement is straightforward, it is critical to properly 'burp' the cooling system after installation to remove any trapped air pockets, which can cause overheating even with a new part.

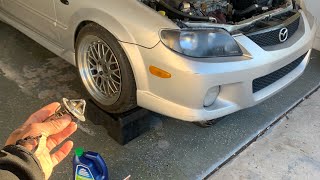

🎬 See this step-by-step walkthrough for a Protege thermostat replacement.Known Issues, Recalls, and Service Bulletins
There are no active recalls or technical service bulletins (TSBs) from Mazda specifically for the engine coolant thermostat on the 1999-2003 Protege. Most issues reported by owners are related to typical part failure from age or problems caused by air trapped in the system after a coolant service.
Cost of Replacing a Mazda Protege Thermostat
The cost is broken down into the part itself and the labor to install it. This is a relatively inexpensive repair.
| Item | Estimated Cost |
|---|---|
| Aftermarket Thermostat | $10 - $30 |
| Performance (Mishimoto) Thermostat | $60 - $70 |
| OEM Mazda Thermostat | $25 - $40 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions (FAQ)
Do I need to replace the gasket too?
Yes, absolutely. The Protege thermostat uses a rubber O-ring style gasket to seal the housing. This gasket becomes hard and brittle over time and will not seal properly if reused. Always install a new gasket with a new thermostat. Most aftermarket thermostats come with a new gasket in the box.
What temperature thermostat should I buy?
For a stock vehicle, use a standard replacement thermostat that matches the OEM opening temperature, which is typically around 180°F (82°C). A performance thermostat like the Mishimoto opens at a lower 169°F (76°C), which is designed for performance applications and is not necessary for normal driving.
My car still overheats after replacing the thermostat. What's wrong?
The most common reason is air trapped in the cooling system. You must properly bleed, or 'burp,' the system to remove all air pockets. Other possibilities include a clogged radiator, a failing water pump, or a bad radiator cap that isn't holding pressure.
🎬 Watch: How to troubleshoot and replace a 1.6L thermostat.Can I just remove the thermostat and run without one?
No, this is a bad idea. Running without a thermostat will cause the engine to run too cool, leading to poor fuel economy, increased engine wear, and a constant Check Engine Light (P0128). The thermostat is essential for proper engine temperature regulation.
Helpful Videos
Technical Specifications
OEM Part Numbers: KL01-15-171A FP47-15-172 FS05-15-176A
Standard opening temperature is approximately 180°F (82°C). The thermostat uses a rubber O-ring seal, not a flat paper gasket.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
