A Guide to the Knock Sensor on Your 1999-2003 Nissan Pathfinder
Dealing with the dreaded P0325 code? Here’s what every Pathfinder owner needs to know about this notoriously hard-to-reach sensor.
- The main issue is the sensor's location under the intake manifold, making replacement extremely labor-intensive.
- The most common symptom is a P0325 Check Engine Light code, often with no other noticeable issues.
- A popular and much cheaper fix is to relocate a new aftermarket sensor to an accessible spot on top of the engine.
- Ignoring the code is not recommended, as the computer cannot protect the engine from harmful detonation if it occurs.
The Biggest Challenge: A Buried Sensor
The single most important thing to know about the knock sensor on the 1999-2003 Pathfinder is its location. Nissan placed it deep in the valley of the V6 engine, underneath the upper and lower intake manifolds. This means that a "by-the-book" replacement is a major job. A repair shop will need to remove the entire intake assembly to get to it, which is why labor costs are so high. This difficult access is the main reason owners look for alternative solutions.
Symptoms of a Failing Knock Sensor
A bad knock sensor on this Pathfinder model almost always reveals itself in one specific way: a Check Engine Light with the code P0325 - Knock Sensor 1 Circuit Malfunction. Many owners report no other obvious driving problems. However, because the engine's computer can no longer get a signal, it enters a "safe mode." This can lead to secondary symptoms like:
- Reduced engine power and sluggish acceleration
- A noticeable drop in fuel economy
- Hesitation when you press the gas pedal
- Failing an emissions test
The "Relocation Hack": A Common Workaround
Because a proper replacement costs hundreds of dollars in labor, many Pathfinder owners choose to relocate the knock sensor instead. This popular workaround involves leaving the old, dead sensor in place, splicing into its wiring harness, and mounting a new aftermarket sensor in an easy-to-reach spot on top of the engine. This clears the P0325 code and restores lost power for a fraction of the cost. 🎬 Watch: Step-by-step guide to the Pathfinder knock sensor relocation. While many owners report success with this method, it's important to understand the new sensor isn't in the original location and may not detect engine knock as effectively.
OEM vs. Aftermarket Quality
For this specific repair, the choice between OEM and aftermarket is complicated. An OEM sensor costs significantly more. If you are paying a mechanic for the 5+ hours of labor to do the job the factory way, using a high-quality OEM or top-tier aftermarket part is wise to avoid having to do it again. However, for the much more common relocation hack, an inexpensive aftermarket sensor is almost always used and is generally considered sufficient to resolve the check engine light and performance issues.
Cost to Replace the Knock Sensor
| Repair Method | Part Cost (Aftermarket) | Estimated Labor Cost | Estimated Total |
|---|---|---|---|
| Standard Replacement (under intake) | $24.91 - $26.59 | $512 - $752+ | $537 - $779+ |
| Relocation Method (top of engine) | $24.91 - $26.59 | $100 - $200 | $125 - $227 |
Costs are estimates and will vary by location and shop. OEM part cost is significantly higher.
Frequently Asked Questions
Is there a recall for the knock sensor on the 1999-2003 Pathfinder?
No, there are no recalls or technical service bulletins (TSBs) from Nissan specifically for the knock sensor on this vehicle.
Can I replace the knock sensor myself?
Performing the standard replacement is a very difficult, advanced job for a DIY mechanic, requiring removal of the intake manifolds. However, the relocation method is much easier and is a popular DIY project, requiring basic wiring skills and hand tools.
🎬 See how to complete this relocation in under five minutes.Will a bad knock sensor damage my engine?
A faulty sensor itself won't cause damage. The risk comes from the engine's computer being unable to detect real engine knock if it occurs. This is why it's best to address the P0325 code rather than ignore it.
Why is the labor cost so high for a standard replacement?
The labor is expensive because the sensor is buried under the intake system. A mechanic must spend several hours disassembling the top of the engine to reach it, and then put it all back together.

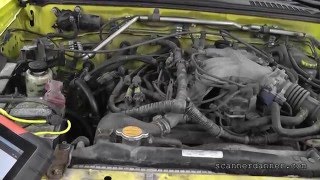

Helpful Videos
Technical Specifications
OEM Part Numbers: 22060-7B000 B2060-7B000
Fits 3.3L VG33E V6 Engine. Single bolt mount. Sub-harness connection.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
