A Guide to Replacing Spark Plug Wires on the 1999-2003 Toyota Solara
Before you buy a spark plug wire set for your Solara, make sure you know which engine you have.
- First, confirm if your Solara has the 4-cylinder or V6 engine, as the wire sets are different.
- V6 models only require a 3-wire set for the front cylinders; the rear cylinders do not use wires.
- For best results and reliability, choose an OEM-grade brand like Denso or NGK.
- Always replace spark plug wires as a complete set, and it is highly recommended to replace spark plugs at the same time.
Is it a V6 or 4-Cylinder? It Matters.
The most common mistake when buying spark plug wires for a 1999-2003 Toyota Solara is ordering the wrong set for your engine. These cars came with two very different ignition setups.
- 4-Cylinder (2.2L 5S-FE Engine): This engine uses a standard ignition system with a set of four spark plug wires. The replacement is straightforward.
- V6 (3.0L 1MZ-FE Engine): This engine has a hybrid system. It uses three spark plug wires for the front bank of cylinders (the ones you can easily see). The rear bank, tucked against the firewall, uses three separate coil-on-plug units and does NOT use spark plug wires. You will only need to purchase a 3-wire set for a V6 model.
Symptoms of Failing Spark Plug Wires
When spark plug wires wear out, the rubber insulation breaks down and the electrical conductor weakens. This allows the spark to weaken or escape before it reaches the plug. You will notice this as a decline in engine performance.
- Rough Idle: The engine may shake or vibrate when you're stopped at a light.
- Engine Misfires: You may feel the engine hesitate or stumble during acceleration. This can trigger the Check Engine Light, often with codes P0300, P0301, P0302, P0303, P0304, P0305, or P0306.
- Poor Acceleration: The car feels sluggish and lacks power when you press the gas pedal.
- Reduced Fuel Economy: You'll notice you're filling up your gas tank more often.
- Difficulty Starting: A weak spark can make it harder for the engine to start, especially when cold.
Choosing the Right Aftermarket Wires
For a reliable car like the Solara, you don't need expensive "performance" wires. Quality and fit are what matter most. Toyota originally used parts from Denso and NGK, making them the best choice for aftermarket replacements.
Spark Plug Wire Brand Tiers for Toyota Solara
| Tier | Brands | Quality Assessment |
|---|---|---|
| OEM-Grade | Denso, NGK | These were the original suppliers for Toyota. They offer the best fit, performance, and durability. Choosing either brand is a safe bet for a long-lasting repair. |
| Quality Aftermarket | Beck Arnley, Standard (SMP), Karlyn STI | These are reputable brands that produce reliable parts. Beck Arnley often sources parts from the original manufacturers. Standard Motor Products is a long-standing, trusted name in ignition components. |
| Performance / Value | Granatelli, Walker Products, ACDelco | Granatelli is a performance brand that may be overkill for a stock Solara. Walker and ACDelco offer functional, value-oriented options that meet basic requirements. |
Known Issues, Recalls, and Bulletins
Searches of the National Highway Traffic Safety Administration (NHTSA) database and other technical resources show no recalls or common Technical Service Bulletins (TSBs) specifically related to spark plug wires for the 1999-2003 Toyota Solara. This part is considered a standard wear-and-tear maintenance item. The reliability of the original ignition system is excellent.
Frequently Asked Questions (FAQ)
Do I need to buy OEM wires from Toyota?
No, you don't have to buy them from a dealer. Aftermarket brands like Denso and NGK were the original equipment manufacturers for Toyota and offer the same quality for less money.
Why does the V6 only use three wires?
The V6 engine in the Solara uses a coil-on-plug system for the three rear cylinders to save space. This means each of those spark plugs has its own small ignition coil sitting directly on top of it. The front three cylinders use a more traditional setup with wires running from a coil pack to the plugs.
Can I replace just one bad wire?
It is not recommended. Spark plug wires degrade over time from heat and use. If one has failed, the others are likely near the end of their service life. They should always be replaced as a complete set to ensure balanced performance.
Is this a difficult job to do myself?
For both the 4-cylinder and V6 models, replacing the spark plug wires is a very easy job that requires no special tools. Simply match the length of the new wire to the old one and replace them one at a time to avoid mixing up the firing order. However, if you plan to change the spark plugs on the V6, the rear three plugs are extremely difficult to access and may require professional help.

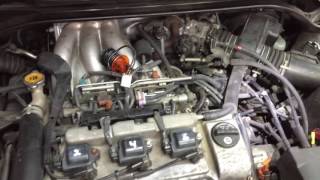

Helpful Videos
Technical Specifications
OEM Part Numbers: 19037-20010 19037-20011 90919-22386

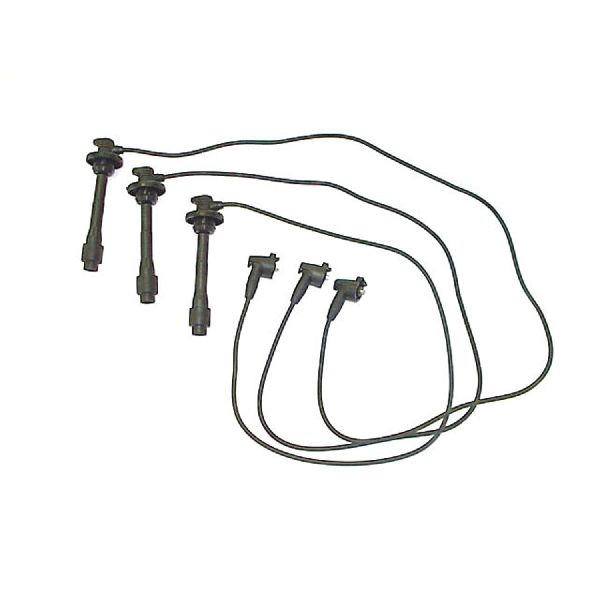

The 1999-2003 Toyota Solara V6 (1MZ-FE) uses a 3-wire set for the front bank of cylinders. The 4-cylinder model (5S-FE) uses a 4-wire set. Both use resistor-type wires to suppress radio frequency interference.
