Understanding and Replacing the Ignition Switch in a 1999-2003 Volkswagen Golf
Solve starting problems and electrical glitches by learning about your Golf's ignition switch.
- A bad ignition switch causes electrical issues or no-starts; a bad lock cylinder makes the key hard to turn.
- This is a common failure on Mk4 Golfs, but it is a DIY-friendly repair that does not require steering wheel removal or key reprogramming.
- Symptoms can range from flickering lights to dangerous engine stalling while driving.
- Aftermarket brands like Vemo and Standard Ignition offer a good balance of quality and price for this repair.
Is it the Ignition Switch or the Lock Cylinder?
It's easy to confuse the ignition switch with the ignition lock cylinder. The lock cylinder is the mechanical part your key slides into. The ignition switch is the electronic component attached to the back of it. If your key is physically hard to turn or gets stuck, the problem is likely the lock cylinder. 🎬 Watch: How to replace the mechanical ignition lock cylinder. If the key turns fine but the car won't start, or you have strange electrical issues, the ignition switch is the more likely culprit.
Common Symptoms of a Failing Ignition Switch
A bad ignition switch on a Mk4 Golf can cause a lot of confusing problems. Because it controls power to so many components, its failure can look like many other issues. Here are the most common signs:
- No-Start or Intermittent Start: You turn the key, the dashboard lights up, but the engine doesn't crank. 🎬 Watch: How to diagnose a no-crank issue on your Mk4. This might happen sometimes or all the time.
- Starts and Immediately Stalls: The engine fires up but dies as soon as you release the key from the "Start" position. This can happen if the switch fails to send power to the ignition and fuel systems in the "On" position.
- Electrical Gremlins: Accessories like the radio, A/C blower fan, or wipers may not work, or they might cut out while driving. The headlights might flicker or cut out when you turn the key to start the engine, which is normal, but if other accessories act up, the switch could be the cause.
- Car Won't Shut Off: In rare cases, the switch can fail in a way that keeps the engine running even after you remove the key.
- Warning Lights on Dash: A faulty switch can cause various warning lights to appear on the instrument cluster.
A Note on Safety
While some symptoms are just an annoyance, an ignition switch that causes the engine to stall while driving is a serious safety hazard. If you experience stalling, it is critical to get the vehicle inspected and repaired immediately.
Choosing the Right Aftermarket Ignition Switch
For a 1999-2003 Golf, you don't necessarily need to buy an expensive OEM (Original Equipment Manufacturer) part from a dealer. Aftermarket parts offer good value, but quality can vary by brand. Here’s a breakdown of the brands available:
- Premium Aftermarket (Vemo, Standard Ignition): Brands like Vemo and Standard Ignition (SMP) are well-regarded in the aftermarket world. They often provide quality comparable to OEM without the high price tag. Vemo is known for making a wide range of electronic parts for European cars. These are a solid choice for reliability.
- Budget-Friendly (URO Parts, Replacement): URO Parts and generic "Replacement" brands are your most affordable options. They can be a good fit if you're on a tight budget. However, the quality and longevity can sometimes be inconsistent. For a part that is relatively easy to replace, this might be a risk you're willing to take.
- Mid-Range (Rostra Powertrain): Rostra is known for producing a variety of automotive electronics and transmission components, often with good quality. They can be considered a reliable mid-range option.
Pro Tip: Check the Connector
When replacing the switch, inspect the plastic electrical connector for any signs of melting or discoloration. A failing switch can create high resistance and heat, damaging the connector. If it's damaged, you'll need to replace the connector pigtail as well.
Cost of Replacing a Volkswagen Golf Ignition Switch
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $12 - $69 |
| New OEM Part | $85 - $130 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions (FAQ)
Do I need to remove the steering wheel to replace the ignition switch?
On the Mk4 Golf, you typically do not need to remove the steering wheel or airbag. The switch is accessed by removing the plastic trim around the steering column and is held in by two small set screws, often covered in red paint 🎬 See this walkthrough for a detailed look at the switch. from the factory. You will need to scrape this paint off to access the screws.
Will I need to reprogram my key after replacing the ignition switch?
No. The key's immobilizer chip is read by a separate coil around the ignition lock cylinder, not the switch itself. Since you are only replacing the electrical switch, no key programming is necessary.
Are there any recalls for the ignition switch on this Golf?
No, there are no open recalls specifically for the ignition switch on the 1999-2003 Volkswagen Golf. There was a recall for the hazard flasher switch on some 2000-2002 models, which is a different part located in the dashboard.
Is this a difficult DIY job?
For most people with basic tools, this is a very manageable DIY job. It requires removing a few trim panels and working in a slightly tight space. The most difficult part is often just breaking the factory paint seal on the small set screws. The job typically takes about 1-2 hours.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4B0905849

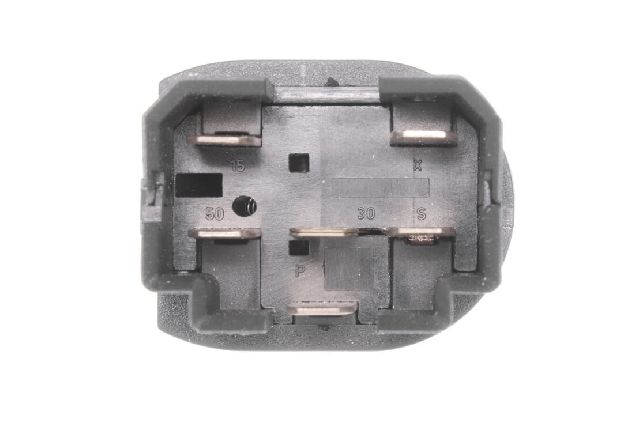

This is the 8-pin electrical switch portion of the ignition assembly. It attaches to the back of the ignition lock housing.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
