Cadillac Escalade 1999-2004 Neutral Safety Switch and Transmission Range Sensor Guide
Having trouble starting your Escalade or dealing with strange shifting? Your Transmission Range Sensor may be the culprit.
- A no-start condition where the lights still work is a primary symptom; try starting in Neutral to confirm.
- This part is more than a safety switch; it's a Transmission Range Sensor (TRS) that affects shifting and reverse lights.
- The most common trouble code associated with this failure is P0705.
- Proper alignment of the new switch during installation is critical for it to function correctly.
Is it a Neutral Safety Switch or a Transmission Range Sensor?
For your 1999-2004 Escalade, the terms are often used for the same part. While it does perform the job of a neutral safety switch, its main role is to act as a Transmission Range Sensor (TRS), also called a Manual Lever Position Sensor (MLPS). It's a smart sensor that tells the engine computer what gear the transmission is in. This information is vital for controlling transmission behavior, not just for starting the engine.
Symptoms of a Failing Transmission Range Sensor on Your Escalade
A bad TRS can cause some confusing problems that might seem unrelated. Because it's a key electrical sensor, a failure can mimic a bad starter, a dead battery, or a major transmission problem. Here’s what to look for:
- No Start or Intermittent Starting: The most common issue. You turn the key and get nothing, or it only starts sometimes. This happens because the switch isn't telling the computer it's safely in Park or Neutral.
- Starts in Neutral but Not Park (or Vice Versa): If you have to jiggle the shifter or shift to Neutral to get it to start, the sensor is likely failing or out of alignment.
- Incorrect Gear Indicator: The letter (P, R, N, D) shown on your dashboard doesn't match the actual gear you're in.
- Reverse Lights Don't Work: The TRS is responsible for turning on your backup lights when you shift into Reverse.
- Harsh Shifting or Limp Mode: The computer gets confused by bad data from the sensor, leading to rough gear changes, hesitation, or the transmission defaulting to a single gear (limp mode) to prevent damage.
- Check Engine Light: A failing TRS will often trigger a Check Engine Light. The most common trouble code is P0705 - Transmission Range Sensor Circuit Malfunction.
Critical Safety Warning
In rare cases, a severely failed switch can allow the engine to start while in Drive or Reverse. This is extremely dangerous. If you suspect this is happening, have the vehicle serviced immediately.
Choosing the Right Aftermarket Part
For the 1999-2004 Escalade, you have several aftermarket options. While an OEM part from the dealer is always an option, quality aftermarket parts can offer good value. Here’s a breakdown of the typical brand tiers:
- Premium Aftermarket (Standard Ignition, Rostra): Brands like Standard Motor Products (SMP) and Rostra Powertrain are often considered top-tier aftermarket choices. They specialize in automotive electronics and transmission components and are generally known for good quality control and fitment, making them a reliable alternative to OEM.
- Standard Aftermarket (Dorman): Dorman is a widely available brand that often provides a good balance of price and quality. They sometimes engineer their parts to fix common failure points of the original design. For a common part like this, Dorman is a solid mid-tier choice.
- Economy (Replacement/Store Brands): These are the most budget-friendly options. While they can save you money, be aware that fitment can sometimes be an issue. One owner reported that the electrical connectors on a generic brand wouldn't fit properly, forcing them to buy an AC Delco part instead. If you choose an economy brand, be prepared to double-check the fit before installation.
Pro Tip: Check the Connectors
The 1999-2004 model range can have variations in electrical connectors. Before ordering, it's a good idea to visually inspect the switch on your own Escalade to match the number and shape of the connectors to the product photos.
| Brand Tier | Example Brands | Typical Price Range |
|---|---|---|
| Premium Aftermarket | Standard Ignition, Rostra | $75 - $94 |
| Standard Aftermarket | Dorman | $60 - $80 |
| Economy / Value | Replacement, Store Brands | $47 - $65 |
Frequently Asked Questions
Was there a recall on the Escalade neutral safety switch?
No, there have not been any specific recalls issued by the NHTSA for the neutral safety switch on the 1999-2004 Cadillac Escalade. Failures are typically due to age and normal wear and tear.
Can I replace this part myself?

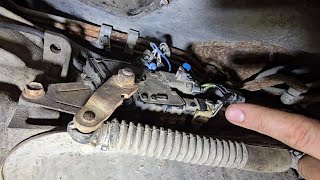

Yes, this is a DIY-feasible job for someone with moderate mechanical skill. It involves safely raising and supporting the vehicle, removing the shift linkage 🎬 Watch this video for tips on removing the sensor. from the switch on the side of the transmission, disconnecting the electrical plugs, and unbolting the switch. 🎬 Watch this step-by-step replacement guide for GM trucks. The most critical step is properly aligning the new switch. Many new parts come with an alignment pin to help. If not aligned correctly, you will still have starting and shifting problems.
My Escalade won't start. Is it the battery or the neutral safety switch?
It can be hard to tell. If your dashboard lights, radio, and headlights are bright when you turn the key, but the engine doesn't crank, the neutral safety switch is a strong possibility. If all the electronics are dim or dead, your battery is the more likely culprit. A simple test is to try starting the truck in Neutral. If it starts in Neutral but not Park, the switch is almost certainly the problem.
Do I need a special tool to replace the Transmission Range Sensor?
No special tools are required, just standard hand tools like a socket set, wrenches, and possibly pliers. However, the key is careful alignment. It's often recommended to shift the transmission into neutral before starting the replacement. Mark the position of the old switch before removing it to help align the new one.
Helpful Videos
Technical Specifications
OEM Part Numbers: D2263C 24227077 24291097
Located on the exterior driver's side of the transmission. Typically has two multi-pin electrical connectors. The number of pins and connector shape can vary by year and transmission type (4L60E/4L80E).
