Engine Oil Pan Replacement Guide for 1999-2004 Chevrolet Silverado 2500
Leaking oil pan? Here’s what you need to know to fix your Silverado 2500 and protect its engine.
- The main reasons for replacement are rust, impact damage, and stripped drain plugs.
- Replacement on 4WD models is significantly more labor-intensive and expensive than on 2WD models.
- Always replace the oil pan gasket and the oil pump pickup tube O-ring at the same time.
- Mid-tier aftermarket brands like Dorman and ATP offer a good combination of quality and value for this truck.
Signs of a Failing Oil Pan on Your Silverado 2500
The most common reason to replace the oil pan on these trucks is due to leaks. Over time, the steel pan can rust and corrode, especially in areas where salt is used on winter roads. Physical damage from road debris or off-roading can also cause cracks or dents that lead to leaks. Another frequent issue is a stripped or damaged drain plug from repeated oil changes, which prevents a proper seal.
Don't Ignore Oil Leaks
A small drip might not seem like a big deal, but it can quickly lead to a low oil level. Running your engine on low oil can cause catastrophic damage, turning a small repair into a complete engine replacement.
Choosing the Right Aftermarket Oil Pan
For a part like an oil pan, the original equipment (OEM) version from the dealer is often expensive. Aftermarket parts offer a more affordable solution and are widely available. The quality of aftermarket pans for the Silverado 2500 is generally good, but there are differences between brands.
- Entry-Level Brands (e.g., Skyward, some Spectra): These are the most budget-friendly options. They will fit and function, but the steel might be thinner, and the protective coating may not be as durable as higher-tier brands. They are a viable choice for a quick fix on a budget.
- Mid-Tier Brands (e.g., Dorman, ATP, Pioneer Cable): These brands are very popular and offer a good balance of quality and price. Dorman is a well-known name, and their parts generally fit well, though some users report occasional issues with drain plug differences. ATP and Pioneer are often praised for using thicker gauge steel than the original and having good corrosion resistance.
- Premium Aftermarket (e.g., Spectra Premium): Spectra's premium line often features better materials and coatings for longevity, making them a solid choice for owners in harsh climates.
Pro Tip: Check the Gasket Surface
When your new pan arrives, place it on a flat surface to ensure the gasket rail is not warped. A flat, true surface is critical for a leak-free seal.
Estimated Replacement Costs for Your Silverado 2500
The cost can vary significantly based on whether your truck is 2WD or 4WD. The 4WD models require much more labor to access the pan.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $65 - $360 |
| Shop Labor (2WD) | $250 - $450 |
| Shop Labor (4WD) | $500 - $800+ |
| Total (Parts + Labor) | $315 - $1160+ |
Frequently Asked Questions
Can I replace the oil pan myself?

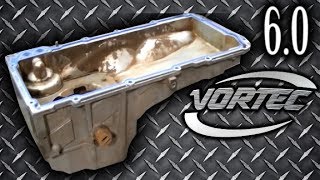

For a 2WD model, it is a feasible DIY job for someone with moderate mechanical skill. However, on a 4WD model, the front differential must be removed or lowered to gain access, making it a much more difficult job. 🎬 See how to replace the oil pan on a Silverado 2500HD. This often requires special tools and significant time.
What else should I replace with the oil pan?
It is essential to replace the oil pan gasket. It's also a great time to replace the oil pump pickup tube O-ring, which is a known failure point that can cause low oil pressure. 🎬 Learn how to replace the pickup tube O-ring to fix oil pressure. You will also need a new oil filter and fresh engine oil. Consider a new drain plug if your new pan doesn't include one.
Are there any recalls for the oil pan on this truck?
No, there are no specific recalls from the NHTSA for the engine oil pan on the 1999-2004 Chevrolet Silverado 2500. Most issues are related to age, corrosion, or physical damage.
Do I need to use RTV sealant with the gasket?
Yes, a small dab of RTV sealant is typically required at the corners where the engine front and rear covers meet the engine block to ensure a leak-proof seal. Follow the instructions included with your new gasket.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12573695 12577395 12579273 12565683 12560393
Material: Steel. Gasket Included: No. Drain Plug Thread Size: M12x1.75. Fits 5.3L & 6.0L V8 engines commonly found in this model year range.
