Chrysler 300M (1999-2004) Door Window Switch: A Comprehensive Guide
If your power windows or locks are acting up, the driver's door switch is the most likely reason. Here's what you need to know before you buy a replacement.
- A faulty master switch is a common issue on the 300M, affecting windows and door locks.
- Replacement is very easy and can be done in minutes with just a pry tool; no need to remove the door panel.
- Aftermarket brands like Dorman and Standard Ignition offer a reliable and cost-effective alternative to expensive OEM parts.
- Verify the button layout and connector of the new switch matches your old one before purchasing.
Is Your 300M Window Switch Failing?
A faulty master window switch can cause a lot of frustration. Symptoms often start small but get worse over time. Here are the most common signs that your switch is going bad:
- One or more windows won't open or close: The driver's window is usually the first to fail because it's used the most. You might find that only the driver's switch works, or that none of them do.
- Intermittent operation: The windows might work one day and not the next. This is often caused by worn internal contacts inside the switch.
- Power locks not working from the driver's door: Since the lock controls are integrated, a failing switch can prevent you from locking or unlocking the doors from the driver's side.
- Window lockout button is stuck or doesn't work: You may be unable to enable or disable the passenger window controls.
- No "click" sound: When you press a button, you should hear a faint click from the switch. If it's silent, the internal mechanism may be broken.
Don't Mistake a Bad Switch for a Bad Motor
If only one window is having problems (and it's not the driver's window), try operating it from its own switch on that door. If it works from the local switch but not the master switch, the master switch is likely the problem. If it doesn't work from either switch, the issue could be the window motor or regulator, not the master switch.
Choosing the Right Aftermarket Switch
For a vehicle like the 1999-2004 Chrysler 300M, you don't need to pay high dealership prices for an OEM (Original Equipment Manufacturer) part. Aftermarket parts offer a significant cost saving and are widely available. The two main brands you'll encounter are Dorman and Standard Ignition (also known as SMP).
- Dorman: Dorman is a popular brand known for providing affordable replacement parts. For a common failure item like a window switch on an older vehicle, Dorman offers a good balance of price and reliability. They are often a go-to for DIY repairs.
- Standard Ignition (SMP): Standard is generally considered a higher-tier aftermarket brand, often praised for its quality and durability. If you plan on keeping your 300M for a long time and want the best possible replacement, SMP is an excellent choice.
Pro Tip: When ordering, visually match your old switch to the pictures online. While most switches for the 300M are the same, slight variations can exist. Pay attention to the button layout and the electrical connector on the back to ensure you get a perfect fit.
Cost of Replacing Your Window Switch
Replacing the master window switch on a 300M is a budget-friendly repair, especially if you do it yourself. The part itself is not expensive, and the labor is straightforward.
🎬 Follow this step-by-step guide to replace your window control switch.| Item | Estimated Cost |
|---|---|
| New Aftermarket Switch | $25 - $65 |
| New OEM Switch | $100 - $150+ |
| Shop Labor | $75 - $125 |
| DIY Total Cost | $25 - $65 |
| Shop Repair Total Cost | $125 - $215+ |
Frequently Asked Questions
Is this a difficult repair to do myself?
No, this is a great job for a beginner. The replacement process is very simple. You only need a flat-head screwdriver or a plastic trim removal tool to pry the switch assembly out of the door panel. You then disconnect the wiring harness, plug in the new switch, and snap it back into place. The entire job can be done in less than 15 minutes without even removing the door panel.

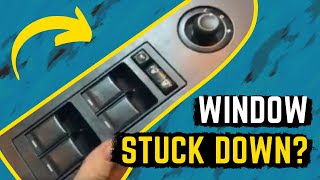

🎬 See how to replace the switch without removing the door panel.Are there any recalls for the 300M window switch?
No. While Chrysler has recalled window switches on other vehicles, such as the Town & Country minivan, for overheating issues, there are no active recalls or Technical Service Bulletins (TSBs) specifically for the 1999-2004 Chrysler 300M door window switch.
Can I just replace the one broken button?
No, the individual buttons are not sold separately. The entire switch module is a single, sealed unit. While it's technically possible to take the switch apart and try to clean the internal contacts, it's a delicate process and usually not a permanent fix. 🎬 Watch how to quickly fix a broken master window switch. Given the low cost of a new aftermarket switch, replacement is the most effective solution.
Do I need to disconnect the battery?
While some guides recommend it for any electrical work, it is generally not necessary for a simple plug-and-play replacement like this. The system is not powered when the key is out of the ignition. However, if you want to be extra cautious, disconnecting the negative battery terminal is always the safest practice.
Helpful Videos
Technical Specifications
OEM Part Numbers: 901-293R
The master window switch for the 1999-2004 Chrysler 300M is a self-contained module located in the driver's door armrest. It controls all four windows, power door locks, and the window lockout function. It connects via one or two multi-pin electrical connectors.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
