Dodge Durango 1999-2004 Vapor Canister: A Complete Replacement Guide
Fix your Check Engine Light and fueling problems with this guide to the EVAP vapor canister.
- Before replacing the canister, inspect all rubber EVAP hoses for cracks; this is a very common failure point on this Durango generation.
- Difficulty fueling is a classic sign of a clogged vapor canister.
- The replacement is straightforward and located under the driver's side, in front of the gas tank, making it a good DIY task.
- Never top off your gas tank after the pump clicks off, as this is the primary cause of canister failure.
Is Your Durango Hard to Fuel or Showing an EVAP Code?
If you're fighting with the gas pump every time you fill up or staring at a Check Engine Light, a failing vapor canister could be the problem. For 1999-2004 Dodge Durango owners, the most common symptoms are a gas pump that clicks off repeatedly long before the tank is full, and EVAP-related codes like P0440, P0455, or P0456. These issues often point to a vapor canister that is clogged, saturated with fuel, or has a leak in its system.
Check This First! Cracked Hoses Are Common
Before you buy a new canister, carefully inspect the rubber EVAP hoses connected to and around the canister. On these older Durangos, these rubber hoses are known to become dry, brittle, and crack over time. A small crack in an inexpensive hose is a very common cause of EVAP leak codes and is a much cheaper fix than replacing the entire canister.
Symptoms of a Bad Vapor Canister on a 1999-2004 Durango
- Check Engine Light: This is the most frequent sign. The light will be triggered by EVAP system codes like P0440 (General EVAP System Fault), P0455 (Large Leak Detected) 🎬 See common causes and fixes for the P0455 large leak code., or P0456 (Small Leak Detected).
- Difficulty Fueling: The gas pump nozzle shuts off constantly during fill-ups. This happens because a clogged canister prevents air and vapor from escaping the tank as fuel goes in, creating backpressure. 🎬 Watch: How to fix slow fuel fill issues on your Durango.
- Gasoline Smell: A noticeable fuel smell around the rear of the vehicle, especially when parked, can mean the canister is cracked or saturated and leaking vapors.
- Failed Emissions Test: A malfunctioning vapor canister or EVAP system will result in an automatic failure of any emissions inspection.
Choosing the Right Aftermarket Vapor Canister
For a vehicle of this age, an aftermarket canister is a practical and cost-effective choice. You don't always need to pay dealership prices for a quality part.
- Mopar (OEM): The original equipment manufacturer part. It guarantees a perfect fit and function but comes at the highest cost. Given the age of the vehicle, this is often unnecessary unless you are doing a factory-correct restoration.
- Standard Motor Products (Standard Ignition): A well-regarded aftermarket brand that produces a wide range of reliable electronic and emission components. Their parts are known to be a quality alternative to OEM, often meeting or exceeding original specifications without the high price tag. This is a solid choice for a dependable repair.
Pro Tip: Don't Overfill Your Gas Tank
The number one cause of vapor canister failure is habitually topping off the fuel tank after the pump clicks off. This forces liquid gasoline into the canister, which is only designed to handle vapor. The liquid fuel saturates and ruins the activated charcoal, leading to clogs and EVAP codes. Stop pumping at the first click to save yourself a future repair bill.
Replacement Cost for a 1999-2004 Dodge Durango Vapor Canister
| Part Type | Estimated Cost |
|---|---|
| New OEM (Mopar) | $280 - $400+ |
| New Aftermarket (Standard Ignition) | $192 - $212 |
| Shop Labor | $75 - $150 |
| Total Aftermarket Replacement (Parts + Labor) | $267 - $362 |
Cost estimates are approximate and can vary by location and supplier.
Frequently Asked Questions (FAQ)
Where is the vapor canister located on a 1999-2004 Dodge Durango?
The vapor canister is located underneath the vehicle on the driver's side. It is mounted to the frame rail, just in front of the fuel tank.
Can I clean my old vapor canister?
No. Once the activated charcoal inside is saturated with liquid fuel, it cannot be cleaned or restored. Attempting to wash it or blow it out with compressed air is ineffective. The only solution for a saturated canister is replacement.
Will a new vapor canister guarantee my P0455 code goes away?
Not always. While the canister can be the cause, P0455 (large leak) or P0456 (small leak) codes are frequently caused by simpler issues. Always check for a loose or worn gas cap and cracked, rotted rubber EVAP hoses before replacing the entire canister.
Is this a difficult part to replace myself?
No, this is a very DIY-friendly job for most home mechanics. Access is straightforward from underneath the vehicle. It typically involves disconnecting a few hoses and an electrical connector, then unbolting the canister from its bracket. No special tools are usually required.
🎬 Watch this walkthrough of the Durango EVAP system and canister location.Helpful Videos
Technical Specifications

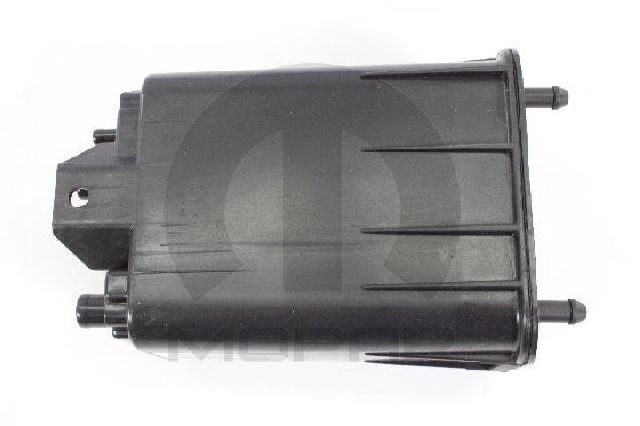

Compatibility should be verified using the vehicle's year, make, model, and engine size. The canister for the 1999-2004 Durango is typically a black plastic box with several hose ports and an electrical connection.
