Ford Mustang Fuel Pump Driver Module Guide (1999-2004)
Solve your Mustang's stalling and no-start problems by understanding this critical fuel system part.
- A bad FPDM on a 1999-2004 Mustang will cause stalling, hesitation, or a no-start condition.
- The FPDM is located inside the trunk on the driver's side, making it an easy DIY replacement in under an hour.
- Before replacing the fuel pump, test or bypass the FPDM; it is a common point of failure and much easier to replace.
- Check for codes P1233 or P1237, which strongly point to a problem with the FPDM or its related wiring.
Is Your Mustang's FPDM Failing?
The Fuel Pump Driver Module, or FPDM, is a small electronic box in your trunk that plays a big role in how your car runs. Unlike the famous FPDM problems on Ford trucks that corrode from being mounted on the frame, your Mustang's module is protected inside the trunk. Failures on this car are usually due to internal electronic issues over time, not rust. When it starts to go bad, it can starve your engine of fuel, leading to some frustrating problems.
Key Symptoms of a Bad FPDM
- Stalling or Hesitation: The car may sputter or stall, especially under acceleration when the engine needs more fuel.
- Hard Starting or No Start: You might find the engine cranks for a long time before it starts, or it won't start at all but cranks fine.
- Loss of Power: The car feels sluggish and won't accelerate properly.
- Rough Idle: The engine idles poorly or inconsistently.
- Check Engine Light: A failing FPDM can trigger specific trouble codes. The most common are P1233 and P1237. 🎬 Watch: How to diagnose and repair a P1233 error code.
Pro Tip: Is It the FPDM or the Fuel Pump?
A bad fuel pump has the exact same symptoms. Before you buy parts, you can do a quick test. The FPDM is located in the trunk on the driver's side, behind the carpet liner. A mechanic can bypass the module with a jumper wire, sending power directly to the fuel pump. If the car starts and runs with the FPDM bypassed, the module is almost certainly the problem. If it still doesn't start, your fuel pump is the likely culprit.
Choosing the Right Aftermarket FPDM
For a car of this age, an aftermarket FPDM is a cost-effective choice. The original Ford part (XR3Z-9D372-AC) has been discontinued, making aftermarket the most common option. Here’s a look at the available brands:
- Standard Motor Products (SMP): Often considered a top-tier aftermarket brand. SMP has a reputation for quality, and their parts are frequently reboxed original equipment or made to a high standard. This is a solid choice for reliability.

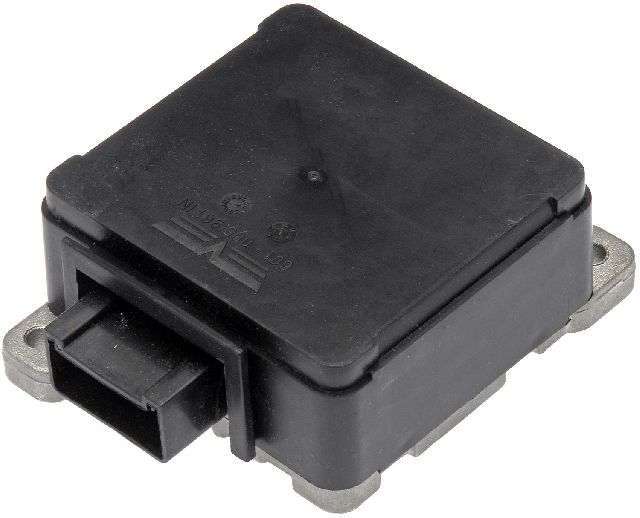

- Dorman: Dorman is a well-known brand that makes a huge variety of parts. Their quality can sometimes be inconsistent, or "hit or miss" according to some professional mechanics. However, for a simple electronic part like this, many users have success with Dorman.

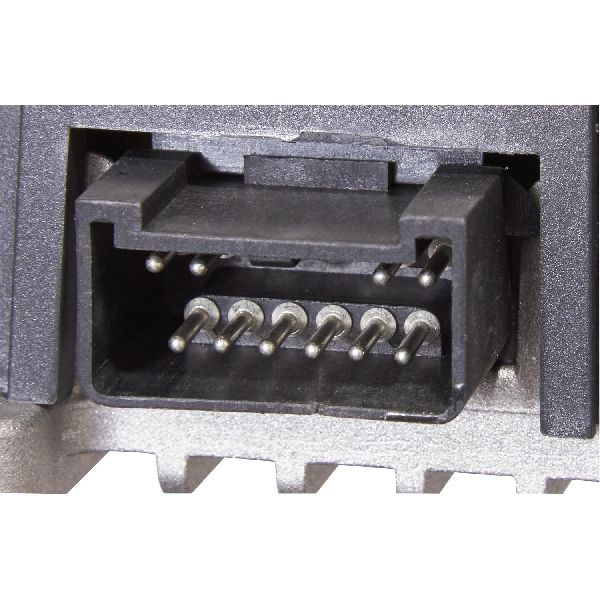

- Spectra: Generally viewed as a budget-friendly option. While it will get the job done, some user experiences suggest it may not have the same long-term durability as more premium brands.
For this specific part, given its critical role in fuel delivery, opting for a trusted brand like Standard Motor Products is a wise investment for peace of mind.
Cost to Replace a 1999-2004 Mustang FPDM
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $80 - $145 |
| Shop Labor | $100 - $150 |
| Total Professional Job | $180 - $295 |
Note: Costs are estimates and can vary by location and shop. The job is simple and takes less than an hour, making it very DIY-friendly.
Frequently Asked Questions
Where is the FPDM located on my Mustang?
The Fuel Pump Driver Module is in the trunk. Pull back the carpet liner on the driver's side, and you will see a black plastic module mounted to a metal bracket.
🎬 See this video for the exact FPDM location and removal.Is this a difficult part to replace myself?
No, this is a very easy DIY job. You only need basic hand tools. You'll need to remove some trunk liner clips, unplug the electrical connector, and unbolt the module's bracket (typically two 10mm nuts). Then, a few smaller screws (often 6mm) release the module from the bracket. The whole process should take less than an hour.
🎬 Watch this step-by-step walkthrough to replace the module yourself.What do the trouble codes P1233 and P1237 mean?
They point to different parts of the circuit. P1233 means the car's main computer (PCM) isn't getting a status signal from the FPDM. This often means the FPDM itself has failed. P1237 means the FPDM has detected a problem in the wiring going to the fuel pump (like a short or broken wire). While a P1237 can be a wiring issue, it can also be caused by a faulty FPDM.
Do I need to program the new FPDM?
No. For the 1999-2004 Mustang, the Fuel Pump Driver Module is a plug-and-play part. You do not need any special programming after installation. Some parts listings may contain generic notes about programming, but it is not required for this specific vehicle.
Could my problem just be the inertia switch?
Yes, always check the inertia switch first. It's also in the trunk, usually near the FPDM or on the side wall. Its job is to shut off the fuel pump in a crash. If it gets tripped, you'll have a no-start condition. Press the button on top to reset it. If it clicks, it was tripped. If it doesn't move, it was not tripped.
Helpful Videos
Technical Specifications
OEM Part Numbers: XR3Z-9D372-AC XR3F-9D372-AE XR3F-9D372-AD XR3F-9D372-AC 3F1Z-9D372-AA
Controls voltage for a returnless fuel system. Located in the trunk. Plug-and-play installation. No programming required.
