Isuzu Rodeo Engine Coolant Thermostat Guide for 1999-2004 Models
Replacing the thermostat on your V6 Rodeo is more complex than you think; here's what you need to know.
- The thermostat on V6 Rodeos is under the intake manifold, making replacement a difficult, 4-6 hour job.
- Due to the high labor cost, use a quality replacement part and replace intake gaskets and accessible hoses simultaneously.
- Common failure symptoms are overheating (stuck closed) or no heat and a P0128 code (stuck open).
- Pay attention to the design of the original thermostat; some aftermarket parts lack the specific flow-control baffle of the OEM part.
Is Your Rodeo's Thermostat Failing?
A thermostat failure in the 1999-2004 Isuzu Rodeo, equipped with the 3.2L or 3.5L V6 engine, presents clear symptoms. Because the part can fail in two ways—stuck open or stuck closed—the signs can seem opposite. Knowing the difference is key to diagnosing the problem correctly.
Symptoms of a Bad Thermostat
- Overheating Engine: If the thermostat is stuck closed, it traps coolant in the engine, preventing it from reaching the radiator. This will cause the engine to overheat, especially in stop-and-go traffic. This is a serious condition that can lead to severe engine damage.
- Engine Not Warming Up / No Cabin Heat: A thermostat stuck open allows coolant to circulate constantly. This prevents the engine from reaching its proper operating temperature. You'll notice the temperature gauge stays low, your heater blows lukewarm or cold air, and you may get a check engine light with code P0128.
- Check Engine Light: The most common code related to a failing thermostat is P0128 - Coolant Temperature Below Thermostat Regulating Temperature. This code specifically points to a thermostat that is stuck open or opening too soon.
- Erratic Temperature Gauge: The needle on your dashboard's temperature gauge may fluctuate wildly or give readings that are unusually high or low.
A Word of Warning on Replacement
On the 1999-2004 Isuzu Rodeo V6 engines, the thermostat is not in the typical, easy-to-access location. It is located underneath the entire upper intake manifold (plenum). This turns a simple part swap into a significant repair that takes several hours (4-6 hours is a common estimate) and requires removing many components, including the fuel rail and throttle body. This is not a beginner-friendly job.
🎬 Watch this detailed walkthrough of the intake removal and replacement.Choosing the Right Aftermarket Thermostat
Given the high labor cost to access the thermostat, choosing a quality part is critical to avoid doing the job twice. While OEM is often preferred for crucial parts, quality aftermarket options are available. It's important to note that some brands re-box parts from other manufacturers.
Pro Tip: The factory Isuzu thermostat for the V6 has a unique baffle or lip that helps control flow and must be oriented correctly (facing the back of the engine). Some aftermarket thermostats may not have this specific design. Pay close attention during installation to ensure the new part matches the old one's orientation and features, like the small bleeder hole, which should face the front.
🎬 See these essential tips for orienting your new thermostat correctly.Aftermarket Brand Tiers

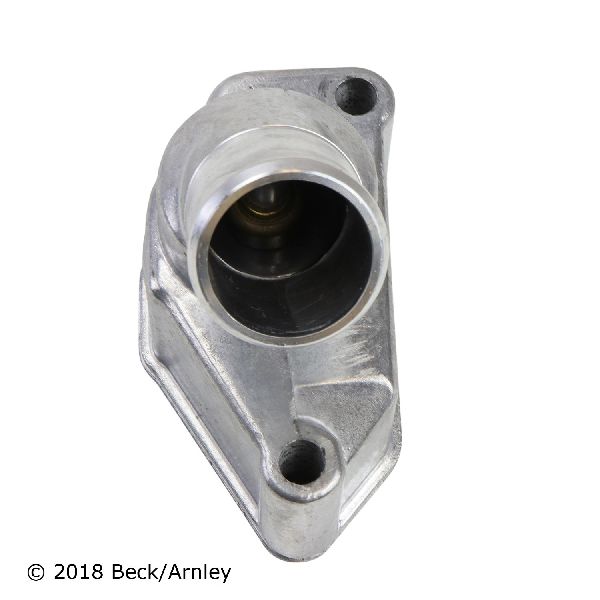

- Premium Aftermarket (Beck Arnley): Beck Arnley specializes in parts for import vehicles and often sources its components from OEM suppliers. While they may re-box parts from other manufacturers like Motorad, they typically adhere to high-quality standards suitable for the vehicle.

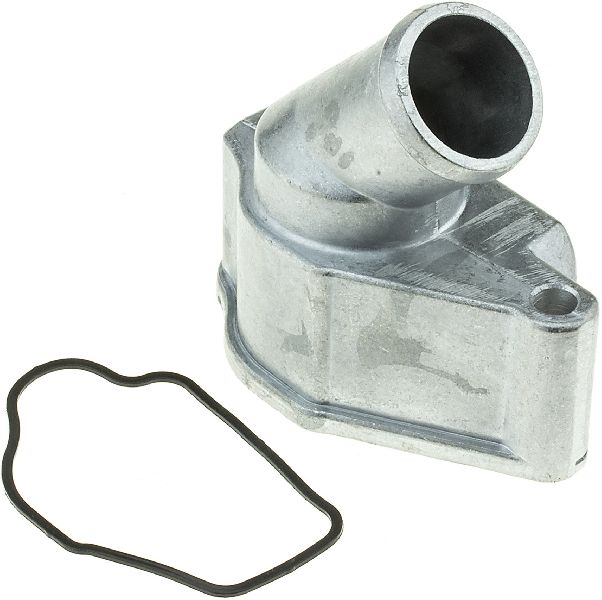

- OE-Quality Aftermarket (Gates): Gates is a well-known and generally trusted brand for cooling system components. They are a solid choice, though some forum users have reported occasional quality control issues with temperature regulation on other vehicle models.
- Standard Aftermarket (Motorad): Motorad is a large manufacturer that produces thermostats for many brands. While functional, they are often considered a standard or economy option. If choosing this tier, ensure it is from their higher-quality line, such as the "Ultrastat."
Expected Replacement Costs
The cost to replace the thermostat on a V6 Rodeo is higher than on most vehicles due to its difficult location.
| Part/Service | Estimated Cost |
|---|---|
| Shop Labor | $400 - $750+ |
| New Aftermarket Thermostat | $15 - $77 |
| New OEM Thermostat | $50 - $100 |
| Total Professional Replacement | $465 - $927+ |
Note: Costs are estimates and will vary by location and repair shop. The total cost often includes a new thermostat, required intake manifold gaskets, and fresh coolant. It is highly recommended to replace the intake gaskets and any accessible coolant hoses at the same time.
Frequently Asked Questions
Why is the replacement so expensive?
The thermostat is located deep under the upper intake manifold on the V6 engines. The labor to remove the manifold, fuel rails, and other components to access the part is what drives the high cost. This can be a 4-6 hour job for a professional.
Can I do this replacement myself (DIY)?
This is a complex and tedious job. While possible for a very experienced home mechanic with the right tools, it is not recommended for beginners. You will need to disconnect many hoses, sensors, and the fuel system. Mistakes can lead 🎬 Check out this close-up view of the thermostat housing location. to vacuum leaks, fuel leaks, or other serious issues.
Do I need to replace the gasket too?
Yes. The thermostat itself requires a new gasket or rubber seal, which usually comes with the new part. More importantly, you MUST replace the intake manifold (plenum) gaskets when you remove the manifold to access the thermostat. Reusing old gaskets will almost certainly cause vacuum leaks and poor engine performance.
Are there any recalls for the thermostat on my Rodeo?
No, there have been no recalls issued by the NHTSA for the engine coolant thermostat on the 1999-2004 Isuzu Rodeo. Recalls for this vehicle pertain to other issues like suspension corrosion and fuel hoses.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8-97235-621-0
The V6 engine thermostat is located under the intake manifold. The OEM part features a specific baffle on one side that must be oriented toward the rear of the engine during installation. The small jiggle pin/bleeder hole should face the front.
