Engine Valve Cover Gasket Set for the 1999-2004 Saab 9-3
Stop the burning oil smell and prevent engine damage by replacing your leaky valve cover gasket.
- A faulty PCV system is a primary cause of valve cover gasket leaks on these Saabs; inspect and update it to prevent repeat failures.
- Oil in the spark plug wells is a clear sign the inner seals of the gasket set have failed, likely causing misfires.
- Use a quality aftermarket brand like Elring or Victor Reinz for a reliable, long-lasting seal.
- Proper cleaning of mating surfaces and correct bolt torque (88 in-lbs) are critical for a successful, leak-free installation.
Is Your Saab 9-3 Leaking Oil? Check the Valve Cover Gasket.
A burning oil smell from the engine bay is a classic sign of a failing valve cover gasket on a 1999-2004 Saab 9-3. This happens when oil leaks from the gasket and drips onto the hot exhaust manifold. Besides the smell, you might see oil residue on the side of the engine or notice oil pooling in the spark plug wells 🎬 See common signs and symptoms of a failing gasket. when you remove the ignition cassette. These are all indicators that it's time for a replacement.
A Critical Note on Saab's PCV System
Before you replace the valve cover gasket, you must inspect your Saab's Positive Crankcase Ventilation (PCV) system. For the B205 engines found in many 1999-2003 models, a known issue with the PCV system can cause excessive pressure inside the engine. This pressure will force oil past seals, including a brand new valve cover gasket, causing it to fail prematurely. Saab released several updates to fix this. If your PCV system hasn't been updated, 🎬 Learn how to identify which PCV version your Saab has. replacing the gasket alone is a temporary fix at best. A clogged PCV system must be addressed to solve the root cause of the oil leak.
Choosing the Right Aftermarket Gasket Set
Not all aftermarket gaskets are created equal. For a leak-free repair that lasts, choosing a quality part is essential. Here’s a breakdown of the available brands:
- Top Tier (OEM Quality): Brands like Elring and Victor Reinz are often original equipment manufacturers for European cars. They are known for their precise fit and durable materials that resist heat and oil, providing a reliable, long-lasting seal. Many experienced Saab owners and mechanics recommend these brands.
- Mid-Tier (Standard Aftermarket): Brands like Fel-Pro are also a solid choice, widely regarded in the aftermarket for providing reliable seals.
- Economy Tier: Brands like Professional Parts Sweden (PPS) offer a more budget-friendly option. While they can get the job done, the materials may not have the same longevity as the top-tier brands. This might be a suitable choice for a vehicle that isn't driven daily, but for a primary car, investing in a higher-quality gasket is recommended to avoid doing the job twice.
Pro Installation Tip
When installing the new gasket, make sure both the cylinder head and valve cover surfaces are perfectly clean. Use a plastic scraper to remove any old gasket material to avoid scratching the aluminum surfaces. While the main gasket is designed to be installed dry, applying a small dab of RTV sealant at the sharp corners and half-moon areas where the timing cover meets the head is a common practice to prevent small leaks.
Frequently Asked Questions
What are the main symptoms of a bad valve cover gasket on my Saab 9-3?
The most common symptoms are a burning oil smell, visible oil leaks on the engine block below the valve cover, and oil found in the spark plug wells, which can cause a misfire and trigger the check engine light.
Is this a difficult repair to do myself?

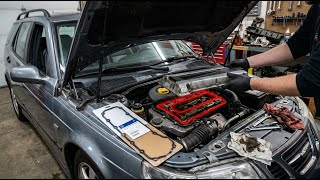

For a DIY mechanic with basic tools, this is a very manageable job. It involves removing the ignition cassette, some hoses, and the valve cover bolts. The difficulty is generally considered low. 🎬 Watch a step-by-step guide to replacing your valve cover gasket. Just be sure to clean the surfaces thoroughly and torque the bolts correctly in a crisscross pattern to 88 in-lbs (about 10 Nm) to avoid cracking the cover.
What else should I replace while I have the valve cover off?
This is the perfect time to inspect and replace your spark plugs if they are due. It's also an excellent opportunity to check the condition of the PCV system hoses and grommets, as they become brittle over time and are crucial for preventing future leaks.
Why did my new valve cover gasket start leaking?
If a new gasket leaks, it's almost always due to one of three reasons: 1) The mating surfaces were not perfectly clean. 2) The bolts were not torqued correctly. 3) The PCV system is clogged, creating excess crankcase pressure that forced oil past the new seal.
Helpful Videos
Technical Specifications
OEM Part Numbers: 9197559 90537687
Fits 2.0L (B204, B205) and 2.3L (B235) 4-cylinder turbocharged engines. Set includes main perimeter gasket and four spark plug tube seals.
