Saab 9-5 Engine Oil Pressure Switch: A Guide for 1999-2004 Models
That oil pressure light on your dash is serious; here’s how to know if the switch is the problem.
- Treat any oil pressure warning light as a critical emergency; it likely signals a dangerous low-pressure condition due to oil sludge.
- A common failure sign for the switch itself is an oil leak from the sensor body, located behind the starter motor.
- Replacement requires removing the starter motor, making it a moderately difficult job. Choose a quality brand to avoid repeat labor.
- If you have low oil pressure, cleaning the oil pickup screen and installing the latest PCV update kit is essential to save your engine.
A Critical Warning for All 1999-2004 Saab 9-5 Owners
STOP: Do Not Ignore The Oil Pressure Light. Before assuming the switch is bad, you must rule out a real low oil pressure condition. These 9-5 engines are famous for a serious problem with oil sludge. This sludge can clog the oil pickup screen in the bottom of the engine, starving it of oil and leading to complete engine failure. An oil pressure light is often the only warning before the engine is destroyed. Always treat an oil pressure light as a critical emergency. 🎬 Watch: A real-world example of diagnosing zero oil pressure. Stop the engine immediately and have the oil pressure professionally tested.
Symptoms of a Failing Oil Pressure Switch
An oil pressure switch can fail in two main ways: it can leak externally, or it can fail electrically.
- External Oil Leak: This is a very common failure. The switch itself will start to leak oil. You will notice oil on the back of the engine block, often dripping down onto the hot catalytic converter, which can create a burning smell.
- Flickering or Incorrect Warning Light: The switch can fail internally, causing the oil pressure light to flicker or stay on, even when the oil pressure is perfectly fine. It can also fail to turn the light on during a real low-pressure event, though this is harder to diagnose.
- Check Engine Light with Code P0520: This trouble code points to a malfunction in the oil pressure sensor circuit. It can be triggered by a faulty switch, a wiring problem, or actual low oil pressure.
Choosing the Right Aftermarket Part
The replacement job is difficult enough that you only want to do it once. Choosing a quality part is important. While Original Equipment (OEM) is always an option, several aftermarket brands offer a good balance of quality and value.
Here’s a breakdown of available brands:
- Premium Aftermarket (e.g., Professional Parts Sweden, Beck Arnley): Brands that specialize in European cars, like Professional Parts Sweden, are often a reliable choice. Beck Arnley has a history of sourcing parts that match OE form and function, though it's always good to check recent reviews.
- Reputable Aftermarket (e.g., Standard Ignition, Facet): Standard Motor Products (Standard Ignition) is a well-known manufacturer with a generally solid reputation for sensors. Facet is another established European brand. These are often a safe bet for quality and reliability.
- Value Brands (e.g., Global Parts, Calorstat): These brands focus on providing a lower-cost alternative. While they can be a good value, for a part this difficult to access, spending a few extra dollars for a more reputable brand is a wise investment to avoid premature failure.
Pro Tip: Given the 1.5-2.5 hour labor time to replace this switch, saving $10 on the part itself is not worth the risk of having to do the job again in a year. Prioritize quality over the lowest price.
Installation Notes: Not a Simple Swap
Replacing the oil pressure switch on a 1999-2004 Saab 9-5 is more involved than on many other cars.
- Location: The switch is hidden on the rear of the engine block, positioned behind and slightly above the starter motor.
- Procedure: Access is extremely limited from both above and below. The most common and accepted method for replacement is to disconnect the battery and remove the starter motor to gain clear access to the switch.
- Difficulty: This is a moderately difficult job for a DIY mechanic. While it doesn't require many special tools, you need to be comfortable removing the starter and working in tight spaces.
Cost of Replacing the Engine Oil Pressure Switch
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Switch | $7 - $30 |
| New OEM Switch | $25 - $50 |
| Shop Labor | $150 - $250 |
| Total Job Cost (Aftermarket) | $157 - $280 |
| Total Job Cost (OEM) | $175 - $300 |
Note: Costs are estimates and will vary based on your location and chosen repair shop.
Frequently Asked Questions
My oil light is on. Is it the switch or the dreaded sludge?
You MUST assume it's sludge until proven otherwise. A flickering oil light is the classic symptom of a clogged oil pickup screen. Before replacing the switch, have a mechanic test the actual oil pressure with a mechanical gauge. 🎬 See how to professionally test engine oil pressure. If the pressure is low, the oil pan must be removed to clean the screen and inspect for engine damage.
Can I replace the switch myself?
Yes, if you are an experienced DIYer. The main challenge is removing the starter motor for access. If you are not comfortable with that, it's best to leave this job to a professional. The estimated time is around 1.5 to 2.5 hours.
Is there a recall for the oil pressure switch on my Saab 9-5?
No, there are no specific recalls for the oil pressure switch. However, due to the widespread sludge issues, Saab did offer an extended 8-year warranty on the engines for many of these model years, which addressed the root cause of low oil pressure.
What is the PCV update and do I need it?
A faulty Positive Crankcase Ventilation (PCV) system was a major contributor to the oil sludge problem on these engines. Saab released several updated PCV kits to fix the issue. If your car has not had the latest PCV update (often called kit #6), it is highly recommended to have it installed to prevent future sludge formation.
Helpful Videos

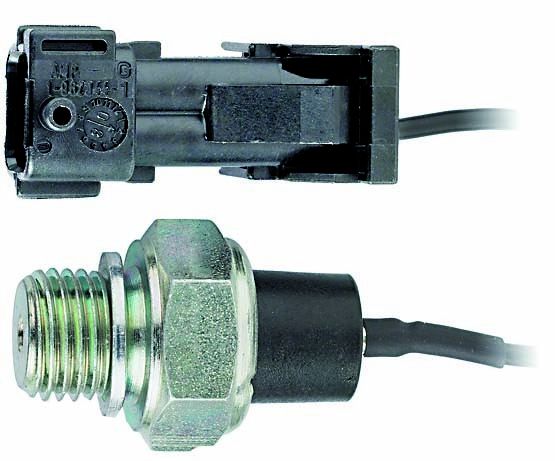

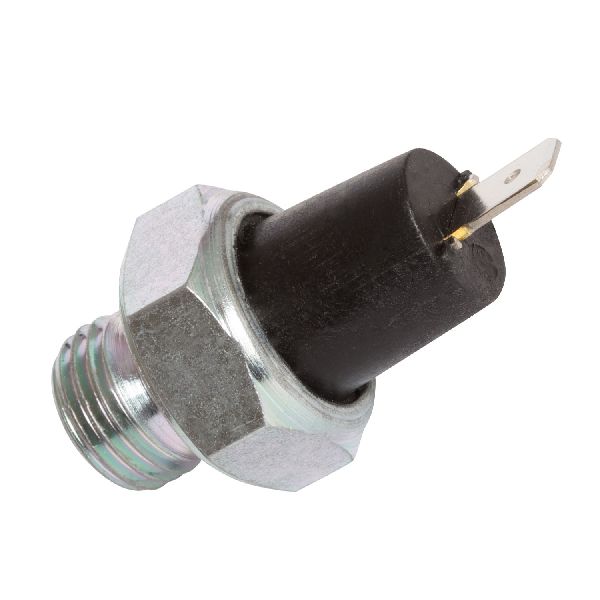

Technical Specifications
OEM Part Numbers: 90537421 5951421
Location: Rear of engine block, behind starter motor. Thread Size: M14x1.5. Wrench Size: 24mm (Varies by brand). Connector: Single pin.
