A Guide to the Rear Drum Brake Hardware Kit for 1999-2004 Suzuki Vitara
Don't let worn springs and clips compromise your Vitara's stopping power; learn which hardware kit is right for your rear brakes.
- Always replace the drum brake hardware kit when replacing brake shoes to ensure proper function and longevity.
- Stick with reputable aftermarket brands like Carlson, Centric, Dorman, or Dynamic Friction for reliable quality and fit.
- Symptoms like scraping noises, a weak parking brake, or brake drag point to worn hardware.
- While you're working on the brakes, check for the NHTSA recall on the brake lamp switch (#99V273002) to ensure your brake lights work correctly.
Symptoms of Failing Drum Brake Hardware
When the small springs and clips in your Vitara's rear brakes wear out, they can cause noticeable problems. Because these parts are under constant tension and exposed to heat and brake dust, they lose their strength over time. Ignoring them can lead to unsafe braking and damage to other parts.
- Scraping or Clicking Noises: A common sign of bad hardware is noise from the rear wheels. You might hear a scraping or clicking sound 🎬 Watch this video to diagnose and repair rear brake noises. when the brakes are not applied, which may disappear when you press the pedal. This can be caused by a weak or broken spring allowing a brake shoe to rub against the drum.
- Loose or Ineffective Parking Brake: The parking brake on your Vitara uses the rear brake shoes. If the hardware is worn, the shoes may not hold firmly against the drum, causing the vehicle to roll slightly even when the parking brake is fully engaged.
- Brake Dragging or Spongy Pedal: If the return springs are weak, they may not pull the brake shoes fully away from the drum after you release the brake pedal. This causes the brakes to drag, leading to excess heat and wear. A spongy pedal can also indicate that the self-adjusting components in the hardware kit are no longer working correctly.
Related Vehicle Safety Recall
While not for the drum hardware itself, there is a relevant safety recall for the 1999-2004 Suzuki Vitara. NHTSA Recall No. 99V273002 was issued for an inoperative brake lamp actuating switch. This could cause your brake lights to fail to illuminate when you press the pedal. When servicing your brakes, it is a good time to ensure your brake lights are functioning correctly for overall road safety.
Choosing the Right Aftermarket Hardware Kit
For a vehicle like the 1999-2004 Vitara, finding a complete OEM hardware kit from a dealer can be difficult, as parts may be discontinued or only sold individually at a high cost. Aftermarket kits are the most practical and common solution. They offer good quality and value, but it's wise to choose a reputable brand.
Aftermarket brands can be grouped into tiers based on reputation and quality:
- Standard & Premium Aftermarket (Recommended): Brands like Carlson, Centric, Dynamic Friction, and Dorman are well-regarded in the industry. Carlson specializes in brake hardware and is known for kits that meet or exceed OEM specifications. Centric is a major brake parts manufacturer with a reputation for good quality, especially in their premium lines. These brands provide a reliable fit and durable components that ensure a complete and lasting repair.
- Economy Aftermarket: Cheaper, often unbranded kits are available. While tempting, they may use lower-quality materials that can wear out faster or not fit as precisely. Given the critical safety function of brake hardware, spending a few extra dollars for a recognized brand is a smart investment.
Pro Tip: Always replace your drum brake hardware whenever you replace your brake shoes. The old springs have been subjected to the same heat cycles and wear as the shoes and have likely lost their proper tension. A new hardware kit is inexpensive and ensures your new shoes will work correctly and wear evenly.
Estimated Cost for a New Aftermarket Kit
The cost for a new aftermarket drum brake hardware kit is very reasonable. The price difference between economy and premium brands is often minimal, making a quality kit a worthwhile expense for safety and longevity.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Drum Brake Hardware Kit | $20.95 - $35.49 |
| Shop Labor for Installation | $120 - $200 |
Frequently Asked Questions
Do I really need to replace the hardware with the shoes?
Yes. Old springs lose their tension and can cause the new shoes to wear unevenly, make noise, or drag. A new hardware kit is a small price to pay to protect your investment in new shoes and drums and ensure the entire system works as designed.

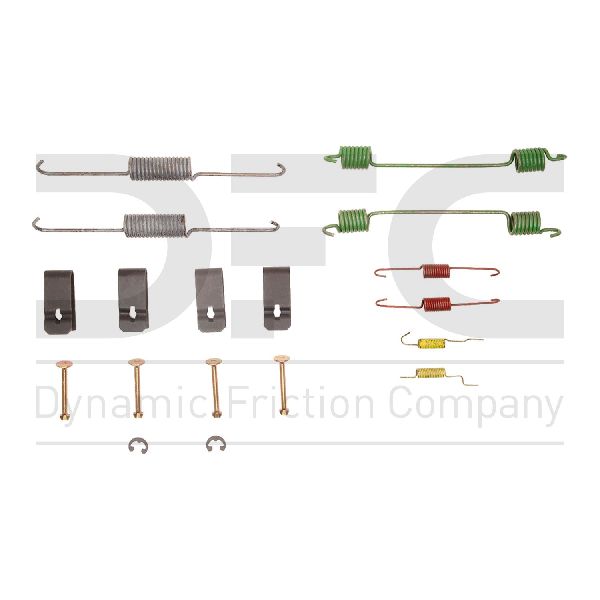

What parts are included in a drum brake hardware kit?
A complete kit for your Vitara typically contains all the necessary return springs, hold-down springs, clips, pins, and components for the self-adjuster mechanism for both rear wheels. This ensures you have everything needed for a full axle replacement.
Is replacing the drum brake hardware a DIY job?
For a mechanically inclined person, this is a feasible DIY project, though it can be tricky. Drum brakes have many small springs under tension that can be "fiddly and annoying" to work with. 🎬 Watch this guide for the correct spring installation order. Using special tools like brake spring pliers is highly recommended. Always take a clear picture of the assembly before you take it apart to use as a reference.
How do I know if my Vitara has rear drum brakes?
Most 1999-2004 Suzuki Vitaras were equipped with disc brakes in the front and drum brakes in the rear. If you look through your rear wheel spokes, you will see a smooth, round drum behind the wheel 🎬 See how to properly remove the rear brake drum. instead of a flat, shiny rotor and a caliper.
Helpful Videos
Technical Specifications
OEM Part Numbers: 53712-65D10 (Link Assembly, Left) 53850-65D00 (Adjuster, Left) 53810-65D00 (Adjuster, Right)
Kit typically includes return springs, hold-down springs, adjuster components, and clips for a complete rear axle service.
