Engine Coolant Thermostat Guide for the 1999-2004 Suzuki Vitara
Keep your Vitara's engine temperature in check by understanding, diagnosing, and replacing a faulty thermostat.
- A bad thermostat can cause overheating or overcooling; overheating is a critical issue that requires immediate attention.
- The correct OEM temperature rating for the Vitara is 82°C (180°F); ensure your replacement matches this spec.
- Replacing the thermostat is a DIY-friendly job for most owners, but always replace the gasket at the same time.
- While no recalls exist for the thermostat, it's a common failure point in many vehicles as they age.
Understanding Thermostat Failure in Your Vitara
The thermostat in your 1999-2004 Suzuki Vitara is a critical component for engine health. When it fails, it can get stuck in either an open or closed position. A thermostat stuck closed is the most dangerous scenario, as it prevents coolant from reaching the radiator, leading to rapid engine overheating. Conversely, a thermostat stuck open will cause your engine to warm up very slowly or not reach its ideal temperature at all. This can lead to poor fuel economy, increased engine wear, and problems with the heater.
Warning: Do Not Ignore Overheating
If you see the temperature gauge on your dashboard enter the red zone, pull over and shut off the engine as soon as it is safe to do so. Driving an overheating engine can cause severe and expensive damage, including warped cylinder heads or complete engine failure.
Choosing the Right Aftermarket Thermostat
When replacing the thermostat on your Vitara, you have a choice between Original Equipment (OEM) and aftermarket parts. For a critical part like a thermostat, quality is key. While OEM is a safe bet, several aftermarket brands offer reliable alternatives.
- Premium Aftermarket (e.g., Aisin, Beck Arnley): Aisin is an Original Equipment Manufacturer for many Japanese vehicles, and their parts are known for exact fit and temperature specifications. Beck Arnley is known for re-boxing parts from various suppliers, sometimes including OEM parts, making them a generally trusted choice for import vehicles.
- Standard Aftermarket (e.g., Gates, Calorstat): Gates is a well-known brand in the aftermarket for belts, hoses, and cooling system components, and their thermostats are generally considered reliable. Calorstat is another established manufacturer of thermostats.
- Economy Aftermarket (e.g., Motorad): Motorad is a very large manufacturer that supplies many other brands. While some users have reported success, others in forums have noted a higher failure rate compared to premium or OEM options, so it may be a case of getting what you pay for.
Pro Tip: Always check the temperature rating of the new thermostat. For the 1999-2004 Vitara, the standard OEM temperature is 82°C (180°F). Using a thermostat with the wrong temperature rating can negatively affect engine performance and efficiency.
Cost of Replacing a Suzuki Vitara Thermostat
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Thermostat | $9.85 - $64.92 |
| Shop Labor | $90 - $150 |
| Total Professional Replacement | $100 - $215 |
Cost estimates are for parts and labor and can vary based on your location and the specific repair shop.
Frequently Asked Questions
Is it difficult to replace the thermostat on a 1999-2004 Vitara?
For most DIY mechanics with basic tools, replacing the thermostat is a manageable job. It typically involves draining some coolant, removing the thermostat housing (usually held by two or three bolts 🎬 Watch a step-by-step guide for replacing the V6 thermostat.), swapping the old thermostat for the new one, and then refilling and bleeding the cooling system. 🎬 See how to perform a coolant flush and thermostat swap. The difficulty is rated as low, taking about 1 to 1.5 hours.
Do I need to replace the gasket with the thermostat?
Yes, absolutely. Always replace the thermostat gasket or seal when you replace the thermostat to prevent coolant leaks. Many new thermostats come with a new gasket included.
Are there any recalls for the thermostat on this Vitara?
No, there are no specific recalls or Technical Service Bulletins (TSBs) for the engine coolant thermostat on the 1999-2004 Suzuki Vitara. There was a recall for a fuel pressure regulator issue in cold weather for this model range, but it is unrelated to the cooling system thermostat.
What is the most common symptom of a bad thermostat?
The most common and noticeable symptom is a change in the engine temperature gauge on your dashboard. It may read much higher than normal (overheating) or stay much lower than normal (overcooling).
🎬 Follow this walkthrough to fix common Vitara thermostat issues.Helpful Videos
Technical Specifications

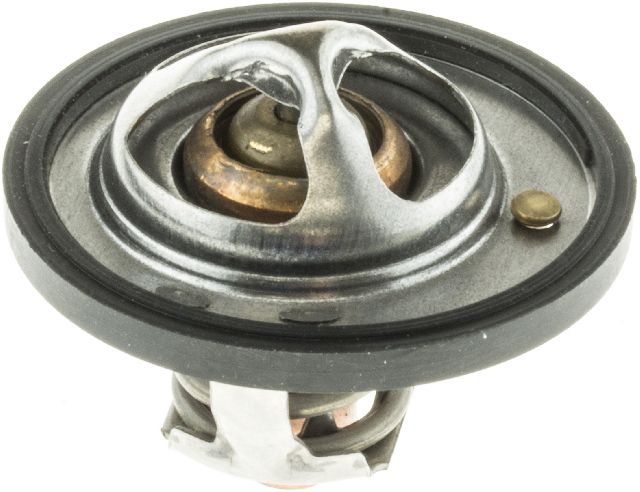

OEM Part Numbers: 17670-77E10 17670-77E11 17670-63J00
Standard Opening Temperature: 82°C / 180°F
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
