Replacing Ignition Coils on Your 1999-2004 Suzuki Vitara
If your Vitara is running rough or has a check engine light on, a bad ignition coil is a likely culprit.
- A flashing check engine light is serious; it means a severe misfire is occurring that can damage your catalytic converter.
- This is a very easy DIY repair. The coils are on top of the engine, each held by one bolt, and can be replaced in minutes.
- Always verify your engine size (1.6L, 2.0L, or 2.5L V6) before ordering, as they use different ignition coils.
- For long-term reliability, consider premium aftermarket brands like NGK, Hitachi, or Delphi, which are often OEM suppliers.
Is Your Vitara Running Rough? It Could Be an Ignition Coil.
A failing ignition coil is a common problem as vehicles get older. For the 1999-2004 Suzuki Vitara, the signs are usually very clear. You might feel the engine shake or sputter, especially when stopped at a light. It may also feel sluggish when you try to accelerate. These are classic symptoms of an engine misfire, often caused by a bad ignition coil that can't provide enough energy to the spark plug. Fortunately, this is a straightforward and relatively inexpensive repair that many owners can do themselves.
Check Engine Light On?
A bad ignition coil will almost always trigger the Check Engine Light. If the light is steady, you should get it checked soon. If it's flashing, it means a severe misfire is happening that could quickly damage your expensive catalytic converter. You should stop driving the vehicle as soon as safely possible.
Choosing the Right Aftermarket Ignition Coil
When replacing ignition coils, you have a choice between OEM and aftermarket parts. For a vehicle like the 1999-2004 Vitara, high-quality aftermarket parts offer a great balance of performance and value. Here's a breakdown of available brands to help you choose:

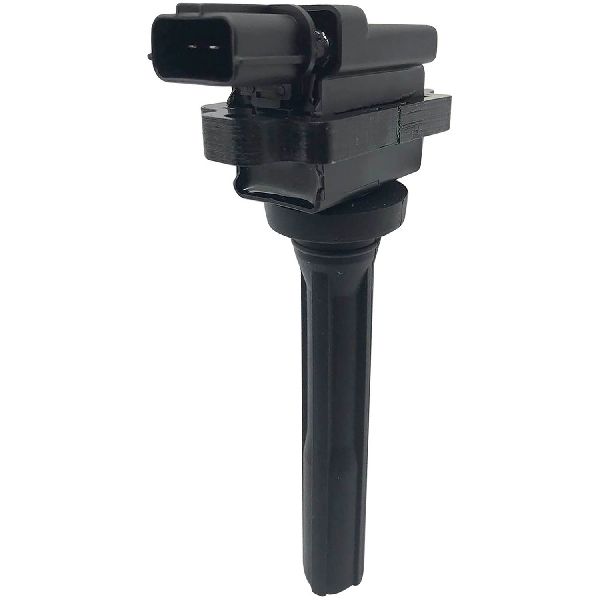

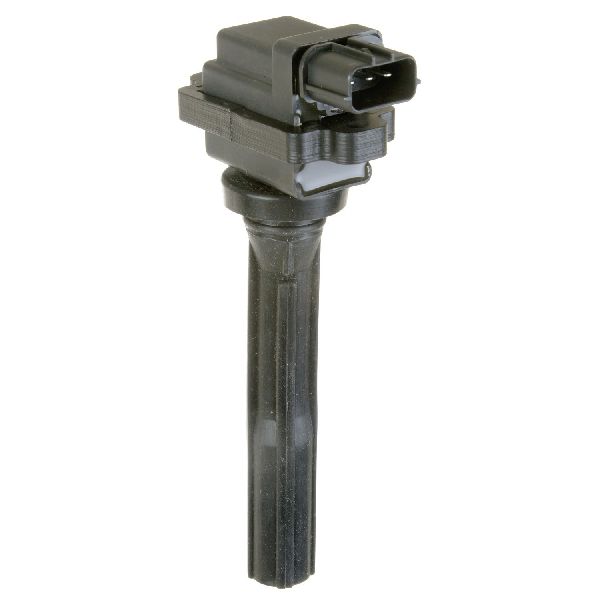

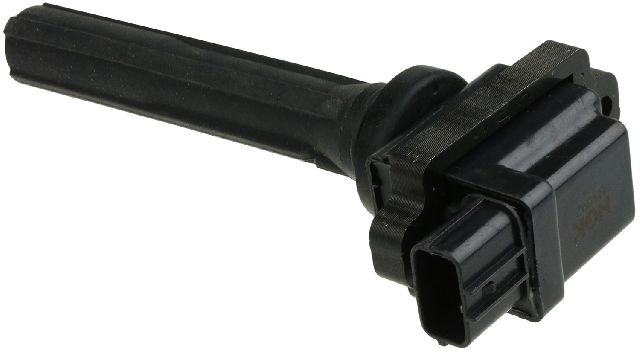

- Premium Brands (NGK, Hitachi, Delphi): These brands are often the original equipment manufacturers (OEM) for many car companies. They are known for excellent quality, reliability, and longevity. NGK and Delphi are well-regarded choices that meet or exceed OEM specifications.

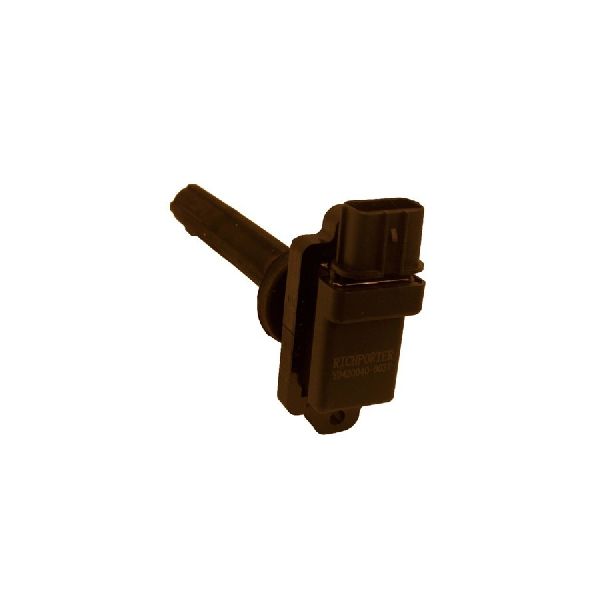

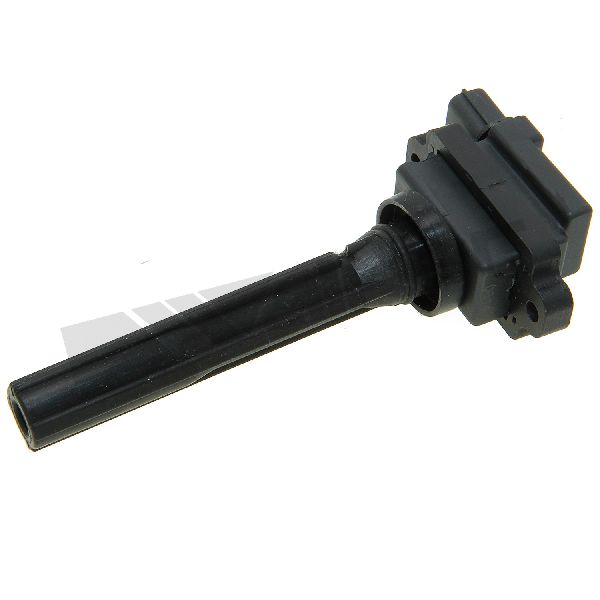

- Standard Brands (Standard Ignition, Walker Products, Spectra): These are trusted names in the aftermarket industry that produce reliable, quality parts. They are a solid choice for a daily driver, offering good performance at a more moderate price point.
- Economy Brands (DriveWire, Global Parts): These brands provide a budget-friendly option to get your Vitara back on the road. While the low price is appealing, be aware that some budget-friendly coils may have a shorter lifespan than premium alternatives.
Common Ordering Mistake: Engine Size Matters!
The 1999-2004 Vitara was available with different engines, including a 1.6L 4-cylinder, 2.0L 4-cylinder, and a 2.5L V6. These engines use different ignition coils. Always confirm your vehicle's engine size before ordering to ensure you get the correct part. The V6 engine requires six coils, while 4-cylinder models need four (or two, depending on the specific 1.6L setup).
| Part Type | Estimated Cost (Single Coil) |
|---|---|
| New Aftermarket | $35 - $114 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
How do I know if my ignition coil is bad?
The most common signs are a rough idle, engine shaking (misfiring), a loss of power when accelerating, and a solid or flashing Check Engine Light. An OBD-II scanner can read the trouble codes (like P0301, P0302, etc.) to tell you 🎬 Watch this guide on diagnosing fault codes and replacing coils. which cylinder is misfiring. You can then swap the coil from the misfiring cylinder with a coil from a good cylinder. If the misfire code moves to the new cylinder, you've confirmed the coil is faulty.
Should I replace all ignition coils at once?
If your Vitara has high mileage and one original coil fails, the others may not be far behind. While you only need to replace the failed coil, replacing them all as a set (especially on the V6 model) can be good preventative maintenance and save you from future breakdowns. Many parts are sold in kits for this reason.
Is this a difficult repair to do myself?
No, this is one of the easier repairs you can do. The ignition coils are located on top of the engine and are typically held in place by a single 10mm bolt. You just need to disconnect the electrical connector, undo the bolt, and pull the old coil out. 🎬 See how to quickly swap out a faulty ignition coil. The entire job for one coil can be done in less than 30 minutes with basic hand tools.
Are there any recalls for the Vitara ignition system?
Searches of the NHTSA database did not show any recalls specifically for ignition coils on the 1999-2004 Suzuki Vitara. However, there was a recall for some 2003 Grand Vitara XL-7 models where the ignition wiring harness could rub and cause the engine to stall. There was also a recall for certain 1999-2004 Vitara models for a fuel pressure regulator issue that could be a fire risk in extreme cold, but this is unrelated to the ignition coils themselves.
Helpful Videos
Technical Specifications
OEM Part Numbers: 33410-77E20 33410-77E21 33410-77E22 91175339
The 1999-2004 Suzuki Vitara uses a Coil-on-Plug (COP) ignition system. The coils typically have a 3-blade male terminal and a rectangular or oval connector shape. They operate on the vehicle's 12V system.
