Solving Ignition and Starting Problems on the 1999-2005 Chevrolet Astro
If your Astro won't start, stalls, or has flickering lights, the ignition switch could be the problem.
- The 1999-2005 Astro was NOT part of the major GM ignition switch recalls.
- A flashing 'SECURITY' light with a start-and-stall issue points to the ignition LOCK CYLINDER, not the switch.
- Common switch failure symptoms include no-crank, intermittent starting, and flickering accessories.
- ACDelco and Standard Ignition are highly-regarded brands for this replacement part.
Is Your Astro's Ignition Switch Failing?
A faulty ignition switch in the 1999-2005 Chevrolet Astro can cause some very frustrating and intermittent problems. Because it controls power to so many different systems, the symptoms can seem random at first. 🎬 Watch: A real-world example of these random ignition symptoms. One day the van starts perfectly, and the next it's completely dead. Paying attention to these specific signs can help you determine if the switch is the culprit.
Ignition Switch vs. Ignition Lock Cylinder: A Critical Difference
Many starting issues on the 1999-2005 Astro are caused by the ignition lock cylinder, not the electronic switch. If your primary symptom is the engine starting and immediately dying while the "SECURITY" light flashes on the dashboard, the problem is almost certainly the lock cylinder and the GM Passlock anti-theft system. 🎬 See how to diagnose a no-start caused by the security light. The ignition switch is a separate electronic part that the lock cylinder controls. If you don't have a flashing security light, but are experiencing the symptoms below, the ignition switch is a more likely cause.
Common Symptoms of a Bad Ignition Switch
- Engine Won't Crank: You turn the key to the 'Start' position and nothing happens. The dashboard lights may or may not come on, but the starter motor doesn't make a sound.
- Intermittent Starting: The van starts fine sometimes, but refuses to start at other times with no clear pattern. This can sometimes be affected by temperature, with one owner noting their Astro wouldn't start in cold weather until the switch was replaced.
- Starts and Immediately Stalls: The engine fires up for a second and then shuts off. While this is also a classic Passlock symptom, a failing ignition switch can cause it by momentarily cutting power to the fuel or ignition systems.
- Flickering Lights and Accessories: Your dashboard lights, radio, or climate control may flicker or cut out randomly while driving. This happens when the switch's internal contacts lose connection, often when going over bumps.
- Key is Hard to Turn: While often a sign of a worn lock cylinder, a binding or damaged ignition switch can also make the key difficult to turn through its positions.
Choosing the Right Aftermarket Ignition Switch
When replacing the ignition switch on your Astro, you have a few quality tiers to choose from. Since this part is critical for starting and running your vehicle, choosing a quality component is important to avoid future failures.
Brand Quality Tiers:
- Premium Aftermarket (OE-Equivalent): ACDelco is General Motors' own parts brand and is considered the original equipment manufacturer or an OE-equivalent part. Choosing an ACDelco switch ensures you are getting a part designed to the original factory specifications for fit, form, and function. For a critical electronic part, this is often the most reliable choice.
- Quality Aftermarket: Standard Ignition (SMP) is a highly respected aftermarket brand with over a century of experience. They are known for producing high-quality electronic parts that meet or exceed OEM standards and are trusted by many professional mechanics. This is a solid choice that balances cost and quality.
- Standard Aftermarket: Brands like Rostra Powertrain offer a functional replacement at a more budget-friendly price point. While less information is available comparing them directly for this application, they are an established manufacturer of aftermarket automotive components.
| Part | Our Price Range |
|---|---|
| New Aftermarket Ignition Switch | $57.82 - $166.16 |
Pro Tip: Check Your Connectors
When you remove the old ignition switch, inspect the wiring harness connectors for any signs of melting, discoloration, or corrosion. A failing switch can generate excess heat, sometimes damaging the connector. If the connector is damaged, it should be repaired or replaced to ensure the new switch functions correctly and safely.
Frequently Asked Questions (FAQ)
Was my 1999-2005 Astro part of the big GM ignition switch recall?
No. The massive GM ignition switch recalls from the mid-2010s did not include the Chevrolet Astro van. Those recalls primarily affected smaller GM cars like the Chevrolet Cobalt, Saturn Ion, and Pontiac G5.
Can I replace the ignition switch myself?
Yes, this is a job that a DIYer with basic tools can accomplish. The process involves removing the lower dash panels and steering column covers to access the switch. The switch is typically held in place with small Torx screws. Several video guides are available online that show the replacement process on similar GM vans.
🎬 Watch this step-by-step walkthrough of the ignition switch replacement.What's the difference between the ignition switch and the ignition lock cylinder?
The ignition lock cylinder is the mechanical part you put your key into. The ignition switch is the separate electronic part that the lock cylinder turns. A bad lock cylinder often triggers the anti-theft system (flashing "SECURITY" light), while a bad switch causes electrical and starting problems without the security light.
Will a bad ignition switch drain my battery?
Yes, it can. If the switch fails to completely shut off the accessory power circuit when you turn the van off, it can leave systems running and drain the battery overnight.
Helpful Videos
Technical Specifications

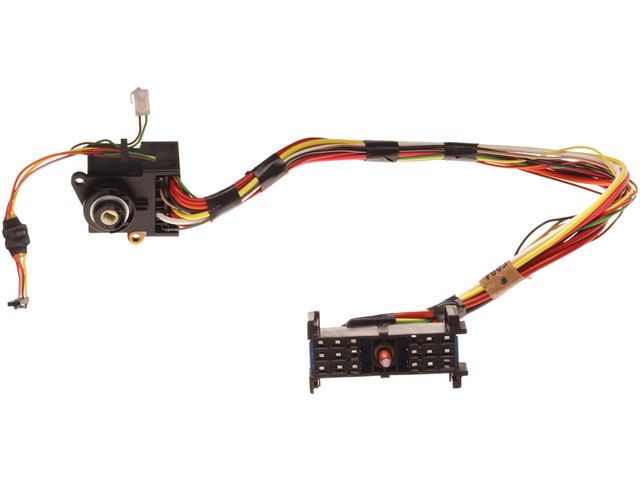

OEM Part Numbers: D1416D
The ignition switch is a multi-position electronic switch located on the steering column, separate from the key cylinder. It features multiple electrical connectors that interface with the vehicle's main wiring harness.
