Ford Mustang Door Lock Actuator Guide (1999-2005)
If your Mustang's power locks are weak, noisy, or have stopped working, this guide is for you.
- The part for a 1999-2004 Mustang is different from the 2005 model; ensure you buy the correct one.
- Failure is common and symptoms include non-working locks, buzzing noises, or intermittent operation.
- This is a DIY-friendly repair that takes about an hour per door with basic tools.
- For longevity, consider spending more on a premium brand like Motorcraft or Standard Ignition to avoid repeat labor.
A Critical Note on Vehicle Years: 1999-2004 vs. 2005
It is critical to understand that the 1999-2004 Ford Mustang (known as the 'New Edge' SN95 platform) and the 2005 Ford Mustang (the first year of the S197 platform) are entirely different generations. The door lock actuators are not interchangeable between these model years. The 1999-2004 models use one type of actuator, while the 2005 model uses a completely different design. Always verify you are purchasing the correct part for your specific model year to avoid installation problems.
Symptoms of a Failing Door Lock Actuator
A failing door lock actuator on a 1999-2005 Mustang is a common issue, often due to the wear and tear of the small internal motor and plastic components. Here’s what to look and listen for:

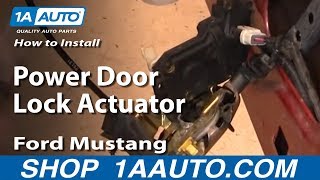

- Locks Don't Work: The most obvious symptom is one or more doors not responding to the power lock switch 🎬 Watch a step-by-step guide on replacing the 99-04 actuator. or key fob.
- Intermittent Operation: The locks may work sometimes but not others. This often happens as the internal motor begins to weaken.
- Slow or Weak Locking/Unlocking: If the actuator struggles to move the lock, it's a sign the motor is losing power.
- Buzzing or Grinding Noises: Strange noises from inside the door when you press the lock button indicate that the gears inside the actuator are stripped 🎬 See how to fix the whirring sound on 2005 models. or the motor is struggling to engage.
Security Risk
A faulty actuator can prevent you from properly securing your vehicle, making it a target for theft. If a door fails to lock, you should address the issue promptly.
Choosing the Right Aftermarket Actuator
When your factory actuator fails, you have several options for replacement. For a vehicle of this age, a new aftermarket part often provides the best balance of cost and reliability.
Brand Quality Tiers
Not all aftermarket parts are created equal. Here is an honest breakdown of the brands available:
- OEM-Equivalent (Premium): Brands like Motorcraft (the original Ford part) and Continental (a major OEM supplier) are considered top-tier. They offer the best fit and longest life but come at the highest cost. If you want a fit-and-forget solution, these are your best bets.
- Quality Aftermarket (Mid-Range): Standard Ignition (SMP) is a well-respected brand in the aftermarket world, known for producing reliable electrical components that often meet or exceed original specifications. They represent a good balance of quality and price.
- Value-Oriented (Economy): Brands like Replacement and Skyward are typically more budget-friendly. While they can be a good option for a quick, inexpensive fix, their long-term durability may not match that of the premium or quality aftermarket brands. Some owners report these parts failing sooner than OEM or premium aftermarket options.
Pro Tip: Given the labor involved in removing the door panel, many mechanics recommend spending a little more on a quality actuator (like Motorcraft or Standard Ignition) to avoid having to do the job again in the near future.
Cost of Replacing a Door Lock Actuator (1999-2005 Mustang)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Actuator | $15 - $93 |
| New OEM (Motorcraft) Actuator | $50 - $100+ |
| Shop Labor | $100 - $175 per door |
Frequently Asked Questions
Is this a difficult repair to do myself?

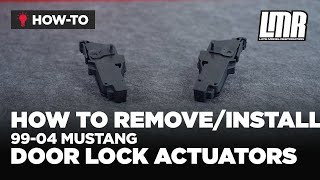

For a 1999-2004 Mustang, replacing the door lock actuator is a feasible DIY job for someone with basic mechanical skills. It involves removing the interior door panel, peeling back the weather shield, and accessing the actuator which is attached to the door latch assembly. The 2005 model follows a similar but distinct process. The main challenges are working in a tight space and carefully disconnecting clips and rods 🎬 Learn how to remove and install New Edge lock actuators. without breaking them. The job typically takes about an hour per side.
Do I need any special tools?
You will need basic hand tools, including a set of screwdrivers (Phillips and flat-blade), a socket set, and a T27 Torx driver for the latch screws on 1999-2004 models. A trim removal tool is also highly recommended to avoid damaging the door panel clips.
Should I replace the actuators in pairs?
While not strictly necessary, it's often a good idea. The actuators on both doors have been subjected to the same amount of use. If one has failed, the other may not be far behind. Since you will have the tools out and know the procedure, replacing both at the same time can save you from having to repeat the job on the other side a few months later.
Are there any recalls for the 1999-2005 Mustang door locks?
Searches for NHTSA recalls show a significant door latch recall (Ford recall 16S30) that included the 2015 Mustang, but it does not apply to the 1999-2005 generation. There are no widespread recalls specifically for the door lock actuators on the 1999-2005 models based on available search data.
Helpful Videos
Technical Specifications
OEM Part Numbers: XR3Z-2521843 (1999-2004) 6L2Z78218A43AA (2005-2010)
This is a vehicle-specific electronic motor that actuates the door latch mechanism. It is typically sold as a side-specific part (Driver or Passenger). The 1999-2004 actuator is a separate motor that clips onto the main latch assembly, while the 2005+ part is often integrated more closely with the latch.
