Ford Mustang Engine Timing Cover Gasket Set Guide (1999-2005)
Stop front-engine leaks and protect your Mustang's 3.8L V6 or 4.6L V8 engine with the right gasket set.
- A leaking timing cover gasket can cause both oil and coolant leaks on 1999-2005 Mustangs.
- This is a labor-intensive repair; choosing a high-quality gasket set like Victor Reinz is crucial to avoid repeat work.
- Always replace the front crankshaft seal and consider replacing the water pump and timing components at the same time.
- Properly diagnose the leak source, as valve cover or oil pan leaks can appear similar.
Is Your Mustang's Timing Cover Gasket Failing?
A leaking timing cover gasket is a common issue on 1999-2005 Ford Mustangs as they age. Heat and time cause the original gaskets to become hard and brittle, leading to leaks. Since this job requires significant labor, it's important to diagnose the problem correctly and choose a quality replacement part to do the job once.
Key Symptoms of a Bad Timing Cover Gasket:
- Oil Leaks: The most frequent sign is an oil leak from the front of the engine. Oil may drip onto the ground or get slung around the engine bay by the crankshaft pulley.

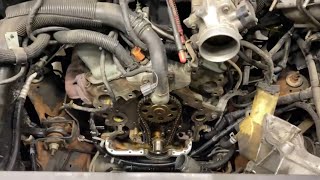

- Coolant Leaks: Because coolant flows through the timing cover, a failed gasket can cause a coolant leak. This can be mistaken for a bad water pump 🎬 Watch this video for tips on diagnosing timing cover coolant leaks., so careful inspection is necessary to find the true source.
- Overheating Engine: A significant coolant leak will cause low coolant levels, which can lead to your engine overheating.
- Milky Engine Oil: This is a critical symptom. If the gasket fails between an oil and coolant passage, the fluids can mix. This will make the oil on your dipstick look milky or like a chocolate milkshake and can cause severe engine damage if not addressed immediately.
Check Other Parts First
Leaks from the valve cover gaskets, crankshaft front seal, or oil pan gasket can look like a timing cover leak. Before starting this big job, clean the engine with a degreaser and run it to pinpoint the exact source of the leak. Sometimes, a special UV dye can be added to the oil to trace the leak with a blacklight.
Choosing the Right Aftermarket Gasket Set
For a repair this labor-intensive, you don't want to cut corners on the gasket itself. While a Ford (Motorcraft) gasket is an option, high-quality aftermarket brands offer similar performance for less money.
Brand Quality Tiers:
- OEM-Equivalent (Best Choice): Brands like Victor Reinz are often original equipment manufacturers for Ford and other automakers. They provide excellent materials and a perfect fit, ensuring a durable, long-lasting seal. For this job, choosing a brand with an OEM pedigree is highly recommended.
- Standard Aftermarket (Good Choice): Brands like Apex offer a reliable, budget-friendly option. While they may not have the same OEM supplier status as Reinz, they provide functional gaskets that meet repair standards and are a good step up from no-name parts.
Get a Complete Kit

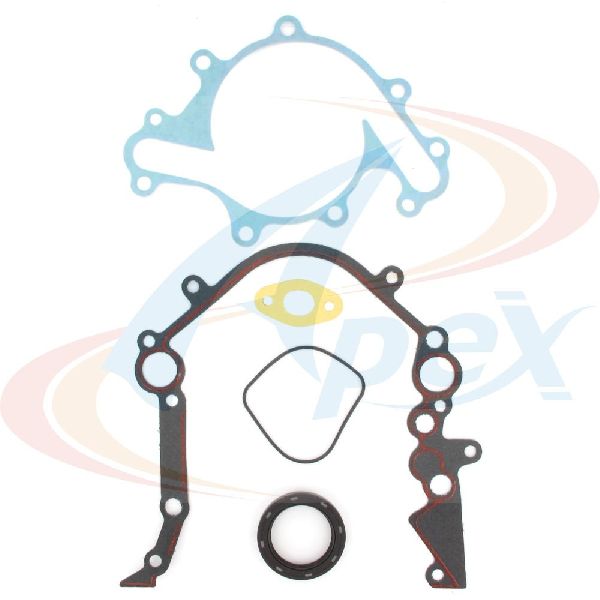

Make sure the gasket set you buy includes all necessary components for your engine. A complete kit for a 4.6L V8, for example, should include the left, right, and center gaskets. Most importantly, the kit should include a new front crankshaft seal, as it's essential to replace this seal whenever the timing cover is removed.
Known Issues, Recalls, and Bulletins
There are no active recalls from the NHTSA for timing cover gasket leaks on the 1999-2005 Ford Mustang. However, forum discussions mention an old Ford Service Action (FSA) for 1995-1997 models with the 3.8L V6 that involved replacing the front timing cover for coolant leaks, but this program has long since expired. This highlights that coolant leaks in this area have been a known issue on the V6 engine family for some time.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $33 - $60 |
| Shop Labor | $730 - $1,075 |
| Total Professional Replacement | $763 - $1,135 |
Costs are estimates and may vary based on your location and specific engine type (V6 vs. V8). Labor is the primary cost driver for this repair.
Frequently Asked Questions (FAQ)
Is this a difficult job to do myself?
Yes, this is a challenging job for a DIY mechanic. It is rated as difficult due to the number of parts that must be removed. You will need to drain the coolant and oil, remove the accessory belts, water pump, power steering pump, A/C compressor, and the harmonic balancer. Special tools, like a harmonic balancer puller, are required. This repair is best left to experienced mechanics.

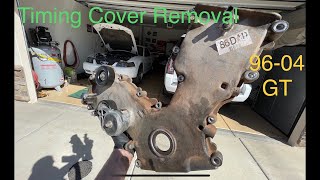

🎬 See a step-by-step guide for removing a Mustang timing cover.Do I need to use RTV sealant with the gaskets?
Yes, a small amount of high-quality RTV silicone sealant is required. It should be applied at the corners where the timing cover meets the cylinder heads and the oil pan. This prevents leaks at these critical junction points. Do not coat the entire gasket with sealant.
Should I replace anything else while the timing cover is off?
Absolutely. Since you've already done most of the labor, it's the perfect time to inspect and replace the timing chains, tensioners, and guides if they show wear. On 4.6L engines, the plastic tensioner arms are a known wear item. At a minimum, you should also replace the water pump if it's old, as it has to be removed for the job anyway.
Will a stop-leak product fix my timing cover leak?
No. Stop-leak products are not a permanent or recommended solution for a failed timing cover gasket. The only proper repair is to replace the gasket. Using stop-leak can potentially cause blockages in other parts of your cooling system or engine.
Helpful Videos
Technical Specifications
OEM Part Numbers: F6AZ-6020-A F6AZ-6020-B XR3Z-6019-AA
Set typically includes timing cover gaskets and front crankshaft seal. Material is often a combination of rubber and metal carrier. Application is specific to engine type (3.8L V6 or 4.6L V8).
