Ford Thunderbird Brake Master Cylinder Guide (2002-2005)
A complete guide to diagnosing and replacing the brake master cylinder on your 2002-2005 Ford Thunderbird.
- The 2002 Thunderbird uses a unique, one-year-only master cylinder that is different from the 2003-2005 models.
- A sinking or spongy brake pedal is the most common and critical symptom of a failing master cylinder.
- There are no specific recalls or TSBs for the master cylinder on these Thunderbirds, so diagnosis is based on symptoms.
- Always bench bleed the new master cylinder before installation to ensure all air is removed from the component itself.
Is Your Thunderbird's Brake Pedal Trying to Tell You Something?
A failing brake master cylinder is a critical safety issue. For the 2002-2005 Ford Thunderbird, which shares its platform with the Lincoln LS, the symptoms are often subtle at first but become dangerous if ignored. Understanding these signs is key to keeping your car's braking system reliable.
Top 5 Failure Symptoms
- Spongy or Mushy Brake Pedal: This is the most common sign. If your brake pedal feels soft or lacks its usual firmness, it often means air has entered the system or internal seals in the master cylinder are worn.
- Brake Pedal Sinks to the Floor: You press the brake, and the pedal slowly sinks towards the firewall. This indicates an internal leak in the master cylinder, where fluid is bypassing the piston seals instead of pressurizing the brake lines. One Thunderbird owner reported this exact symptom leading to a sudden brake failure.
- Brake Warning Light is On: The brake warning light can illuminate for several reasons, including low brake fluid. A leaking master cylinder can cause the fluid level in the reservoir to drop, triggering the light.
- Contaminated Brake Fluid: New brake fluid is typically a light golden color. If you check the reservoir and the fluid is dark, black, or has particles in it, it can be a sign that the rubber seals inside the master cylinder are breaking down.
- Inconsistent or Uneven Braking: If the car sometimes brakes normally and other times requires more effort, or if it pulls to one side during braking, the master cylinder may be failing to distribute pressure evenly.
The brake master cylinder for the 2002 Thunderbird is a specific, one-year-only part. Ford has discontinued this part, making new OEM replacements very rare and classified as 'New Old Stock' (NOS). The 2003-2005 models use a different, more common part number (3W4Z-2140-AA, superseded by 6W4Z-2140-A). It is critical to order the correct part for your specific model year.
Choosing the Right Aftermarket Master Cylinder
Since OEM parts can be expensive or hard to find, a new aftermarket master cylinder is a practical choice. Quality varies by brand, so it's important to understand the options.
Brand Tiers for Your Thunderbird

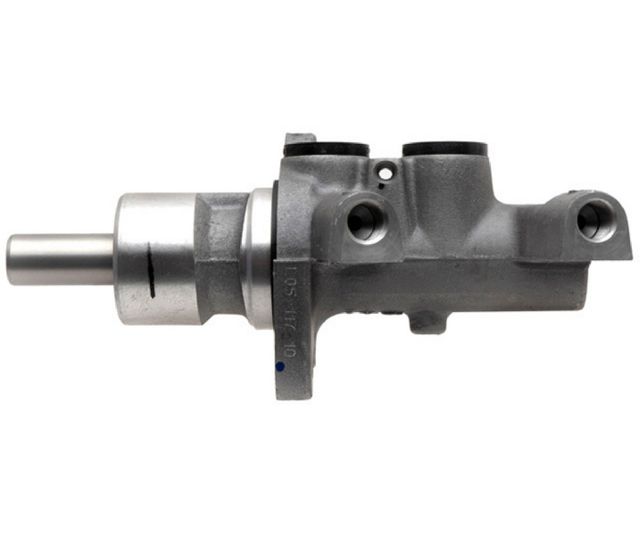

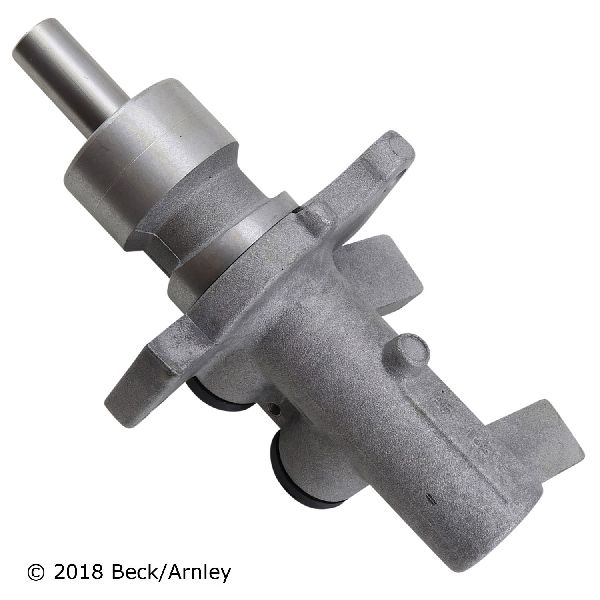

- Premium Aftermarket (Raybestos, Beck Arnley): These brands have a strong reputation for quality and fit. Raybestos is a long-standing name in brakes, known for matching OE performance. Beck Arnley is often regarded as a supplier that sources parts from the original equipment manufacturers, providing high quality. For a critical safety component, these are reliable choices.

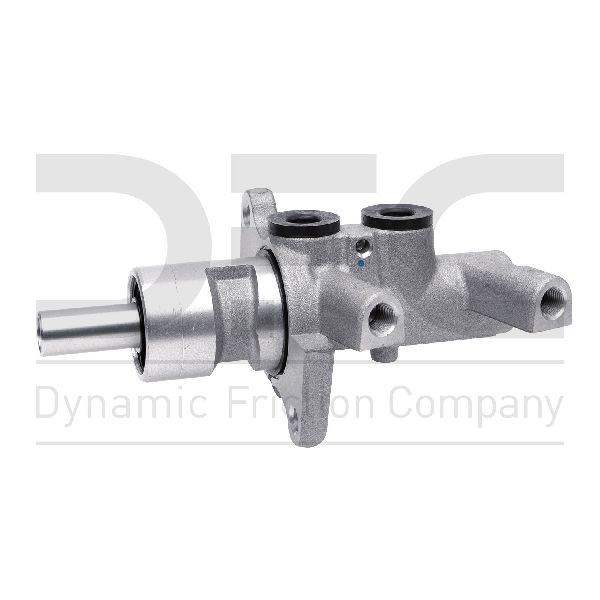

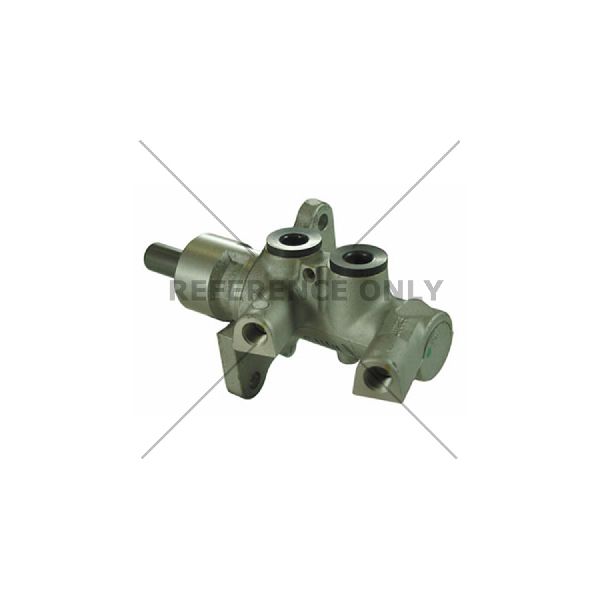

- Standard Aftermarket (Centric, Dorman, Dynamic Friction): These brands offer a balance of value and performance. Dorman is known for re-engineering parts, sometimes improving on the original design. Centric is a popular choice, though some users have reported mixed results with their hydraulic components. These brands are suitable for daily driving and can be a good budget-friendly option.
Before installing any new master cylinder, you MUST bench bleed it. This process removes all air from the cylinder itself. Skipping this step will make it nearly impossible to get a firm pedal, no matter how much you bleed the brakes at the wheels. Many new master cylinders come with a bleeding kit to make this easier. 🎬 See a step-by-step guide on how to bench bleed your part.
Cost of Replacing a Thunderbird Master Cylinder
The total cost depends on whether you do the work yourself or hire a professional. Labor costs can vary significantly by location.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $106 - $169 |
| Shop Labor | $200 - $550 |
| Total Professional Job | $306 - $719 |
Frequently Asked Questions
Do I need to replace the brake booster too?
Not always, but they can fail together. A hard-to-push brake pedal often points to a bad brake booster, while a soft, sinking pedal points to the master cylinder. If the back of the master cylinder is leaking, the fluid can damage the booster, requiring both to be replaced.
Are there any recalls for the 2002-2005 Thunderbird master cylinder?
No. As of early 2026, there are no specific NHTSA recalls or Technical Service Bulletins (TSBs) for brake master cylinder failure on the 2002-2005 Ford Thunderbird.
Is this a difficult DIY job?
For an experienced home mechanic, it is manageable. It requires specific tools, including a flare nut wrench and a bleeding kit. The most difficult part is often accessing the nuts that hold the cylinder to the firewall and properly bleeding the entire brake system afterward, which may involve activating the ABS pump. If you are not comfortable with brake system work, it is best to leave this job to a professional.
🎬 Watch this expert walkthrough on how to replace a master cylinder.What kind of brake fluid should I use?
Always check your owner's manual or the cap on the master cylinder reservoir. Most Ford vehicles of this era use DOT 3 or DOT 4 brake fluid. Never use the wrong type, and always use fluid from a fresh, sealed container to avoid moisture contamination.
Helpful Videos
Technical Specifications
OEM Part Numbers: 6W4Z-2140-A 3W4Z-2140-AA XW43-2140-CA
Bore Size: 1 inch. Material: Aluminum. The 2002 model year uses a different part than 2003-2005 models.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
