Engine Coolant Thermostat Guide for the 2002-2005 Ford Thunderbird
Keep your Thunderbird's 3.9L V8 engine from overheating by understanding its thermostat.
- A bad thermostat is a very common cause of overheating in the 2002-2005 Thunderbird.
- The plastic thermostat housing is a known weak point and should be inspected and likely replaced along with the thermostat.
- A thermostat stuck open will cause the engine to run too cool and can trigger a P0128 check engine light code.
- Due to difficult access, replacing the thermostat is a challenging job that many owners leave to a professional.
Is My Thunderbird's Thermostat Failing?
A faulty thermostat is a common reason for overheating in the 2002-2005 Thunderbird. The most frequent failure is the thermostat getting stuck closed, which blocks coolant from reaching the radiator and causes the engine to overheat quickly. Another, less common, failure is the thermostat sticking open. This prevents the engine from reaching its proper operating temperature, which can trigger a check engine light (code P0128), cause poor heater performance, and reduce fuel efficiency.
Key Symptoms of a Bad Thermostat:
- Engine Overheating: The temperature gauge climbs into the red. 🎬 Watch this diagnostic overview for overheating 3.9L V8 engines. This is the most serious symptom, caused by a thermostat stuck closed.
- Temperature Gauge Fluctuates: The needle may swing from hot to cold erratically.
- Engine Takes Too Long to Warm Up: If your car seems to run cold for a long time, especially on the highway, the thermostat may be stuck open.
- Poor Heater Performance: The cabin heater may not blow hot air because the engine coolant isn't getting hot enough.
- Check Engine Light: A thermostat stuck open often triggers the code P0128. 🎬 See how to fix the P0128 engine code in minutes.
- Coolant Leaks: Overheating from a stuck-closed thermostat can increase pressure and cause leaks from the housing or hoses.

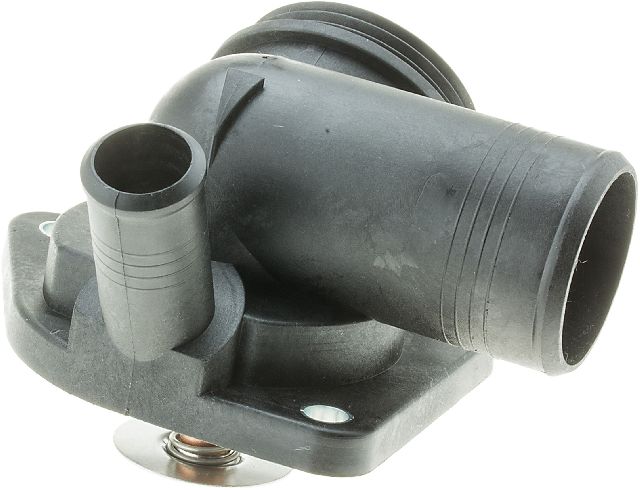

A Note on the Thermostat Housing
The 3.9L V8 in the Thunderbird is known for plastic cooling system components that become brittle over time. The thermostat housing is a frequent point of failure and often cracks, causing coolant leaks. Many mechanics recommend replacing the plastic housing at the same time as the thermostat, even if it isn't leaking yet. For 2002 models, an aluminum upgrade housing is available, but for 2003-2005 models, only plastic replacements are common.
🎬 Watch this walkthrough on replacing the thermostat housing.Choosing the Right Aftermarket Thermostat
When replacing your Thunderbird's thermostat, you have a choice between OEM (Original Equipment Manufacturer) parts from Ford/Motorcraft and aftermarket options. For a critical part like a thermostat, quality matters.
| Brand Tier | Brands | Quality & Notes |
|---|---|---|
| OEM / Premium Aftermarket | Motorcraft, Gates | Motorcraft is the original Ford part and is highly recommended by owners for fit and reliability. Gates is a well-respected aftermarket brand known for quality cooling system parts and is often considered a reliable alternative to OEM. |
| Standard Aftermarket | Motorad | Motorad is a major manufacturer that produces a wide range of thermostats, including kits with housings. While they meet or exceed OEM standards, some users prefer the build quality of Motorcraft or Gates for critical applications. Some owners have reported issues with aftermarket parts in general, leading them to switch back to OEM. |
Pro Tip: Buy a Kit
For this job, it's wise to buy a thermostat that comes as a kit with a new housing and seal. Given the high failure rate of the plastic housing, replacing it all at once saves you from having to do the job twice. Also, ensure you use the correct Ford 'Gold' colored antifreeze for your Thunderbird.
Frequently Asked Questions (FAQ)
Is it hard to replace the thermostat on a 2002-2005 Thunderbird?
The replacement can be challenging. The workshop manual suggests removing the intake manifold to access the rear bolts of the thermostat housing. However, some owners have found workarounds using modified wrenches to avoid this major step, though it is a slow process. Due to the difficulty and the need to properly bleed air from the cooling system afterward, many owners opt for professional installation.
Are there any recalls for the Thunderbird thermostat?
No, there have been no specific recalls or Technical Service Bulletins (TSBs) from Ford or the NHTSA for the engine coolant thermostat on the 2002-2005 Thunderbird. Problems with the thermostat and its housing are considered wear-and-tear items.
What is the correct thermostat temperature?
The correct thermostat for the 2002-2005 Thunderbird is typically rated for 192°F. Using a thermostat with the wrong temperature rating can affect engine performance and efficiency.
Why is my car still overheating after replacing the thermostat?
If overheating continues, there could be other issues. The most common is air trapped in the cooling system, which requires a special bleeding procedure. Other potential causes include a cracked coolant reservoir (degas bottle), a failing water pump, or a bad radiator fan.
What is a 1999-2001 Ford Thunderbird?
There are no Ford Thunderbird models for the years 1999, 2000, or 2001. The 10th generation ended in 1997, and the 11th generation, which this guide covers, began with the 2002 model year.
Helpful Videos
![How to Fix FORD P0128 Engine Code in 3 Minutes [2 DIY Methods / Only $7.34]](https://img.youtube.com/vi/nUD6fDJpoV4/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: XW4Z-8575-CA
Opening Temperature: 192°F (OEM Recommended)
