Engine Water Pump Guide for the 2002-2005 Ford Thunderbird
Keep your Thunderbird's 3.9L V8 cool by understanding water pump failure symptoms and choosing the right replacement.
- The 2002-2005 Thunderbird uses the same water pump for all years, but other cooling parts like the thermostat housing differ.
- Overheating is a critical symptom; stop driving immediately to prevent severe engine damage.
- Consider replacing other plastic cooling system parts like the thermostat housing and coolant reservoir at the same time as the water pump.
- Using a high-quality gasket is crucial for a leak-free repair, as some aftermarket pump gaskets have been reported as problematic.
Is Your Thunderbird's Water Pump Failing?
A failing water pump is a serious issue for the 3.9L V8 in the 2002-2005 Thunderbird. The cooling system on this engine, which is shared with the Lincoln LS and Jaguar S-Type, has several plastic components that can become brittle over time. Recognizing the signs of water pump failure early can save you from engine damage. The most common symptoms are coolant leaks, engine overheating, and unusual noises.
Overheating Warning
If your temperature gauge is in the red, pull over and shut off the engine immediately. Driving an overheating engine can lead to catastrophic damage, including warped cylinder heads and complete engine failure.
Choosing the Right Aftermarket Water Pump
When it's time for a replacement, you have several options. While Ford's own Motorcraft brand is the original part, quality aftermarket brands offer a reliable and more affordable alternative. It's important to note that many owners and mechanics recommend replacing other cooling system components, like the plastic thermostat housing and coolant reservoir, at the same time as the water pump 🎬 Watch a guide on replacing the pump and related pulleys., as they are prone to failure.
Brand Quality Tiers
| Brand Tier | Brands | Quality & Notes |
|---|---|---|
| OEM / Premium | Motorcraft, Gates | Motorcraft is the original Ford part (OEM Part# 2W9Z-8501-BB) and the benchmark for fit and quality. Gates is a top-tier aftermarket brand, highly respected for its cooling system components and often considered an OEM-equivalent. |
| Quality Aftermarket | ACDelco, Graf, GMB | ACDelco offers professional-grade parts that are a dependable alternative. Graf is known for producing quality water pumps, sometimes with upgraded metal impellers. GMB is a widely used aftermarket manufacturer that provides a good balance of quality and value. |
| A Note on Gaskets | Some forum members have reported issues with paper gaskets supplied with aftermarket water pumps. It is highly recommended to use a quality, upgraded gasket (like Fel-Pro) or an appropriate sealant to ensure a leak-free installation, regardless of the pump brand chosen. | |
Frequently Asked Questions
What causes the water pump to fail?
Water pumps fail for a few reasons. The most common is the failure of the internal bearing or seal. When the seal fails, coolant leaks out of a "weep hole". When the bearing fails, it can cause a grinding or whining noise and a wobbly pulley. Age and contaminated coolant can also corrode the impeller fins, reducing the pump's ability to move coolant.
Is this a DIY job?
For an experienced DIY mechanic, yes. The replacement is moderately difficult, rated around a 3 out of 5. It involves draining the coolant, removing the serpentine belt, fan shroud, and several other components to gain access. Special care must be taken when bleeding air from the system after installation. If you are not comfortable with this level of work, it's best to leave it to a professional.
🎬 See a step-by-step walkthrough of the water pump replacement process.Why is my car still overheating after replacing the water pump?
If your Thunderbird still overheats, the most likely cause is air trapped in the cooling system. The 3.9L V8 requires a specific bleeding procedure to remove all air pockets. Other potential culprits include a faulty thermostat, a cracked thermostat housing, a leaking coolant reservoir (degas bottle), or a malfunctioning cooling fan (especially the hydraulic fan on 2002 models).
Are there any recalls for the water pump?
No, there have been no specific recalls issued by the NHTSA for the engine water pump on the 2002-2005 Ford Thunderbird. There are, however, technical service bulletins (TSBs) related to the cooling system, such as TSB 06-21-19 for heater core issues, which can be related to overall system health.
What is the difference between the 1999-2005 and 2002-2005 Thunderbird?
The Ford Thunderbird was not produced for the 1998, 1999, 2000, or 2001 model years. The 11th generation, which this guide applies to, ran from 2002 to 2005.
Helpful Videos
Technical Specifications

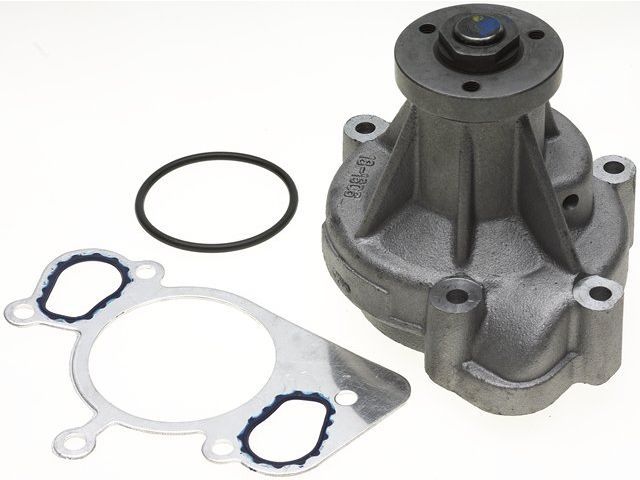

OEM Part Numbers: 2W9Z-8501-BB PW-448
Fits the 3.9L DOHC V8 engine used in all 2002, 2003, 2004, and 2005 Ford Thunderbird models. The pump is belt-driven and features an aluminum housing.
