A Guide to Replacing Fuel Injectors on a 2002-2005 Ford Thunderbird
If your Thunderbird's 3.9L V8 is running rough, misfiring, or hard to start, a faulty fuel injector could be the culprit.
- Always replace fuel injectors as a complete set of eight to ensure balanced engine performance and prevent repeat repairs.
- Misfire codes (P0301-P0308) can be caused by a bad fuel injector, not just a faulty ignition coil.
- A leaky injector is a common cause of hard starting after the car has been sitting for a short period.
- Be cautious with remanufactured injectors; new aftermarket parts from a reputable brand like Standard Ignition offer a better balance of quality and cost.
Signs of a Failing Fuel Injector
A bad fuel injector on the 3.9L V8 can mimic other problems, like a bad ignition coil. Pay close attention to these specific symptoms. A check engine light is common, and scanning for codes is the first step in diagnosis.
- Engine Misfires: This is the most common symptom. The engine may shake or stumble, especially at idle or under load. You will likely get a Check Engine Light with codes from P0300 (random misfire) to P0301-P0308 (for a specific cylinder). 🎬 Watch: Diagnosing and repairing P0306 and P0316 misfire codes.
- Rough Idle: The engine runs unevenly when stopped at a light.
- Hard Starting & Fuel Smell: If an injector leaks, it can drip fuel into the cylinder when the engine is off. This can cause a long crank time, sputtering, and even a puff of white or gray smoke from the exhaust on startup as the excess fuel burns off. You may also smell raw gasoline around the car.
- Poor Fuel Economy: If an injector is stuck open or spraying too much fuel, your gas mileage will suffer.
- Loss of Power: The engine may feel sluggish and unresponsive because a cylinder isn't getting the right amount of fuel to produce power.
Misfire: Is It the Coil or the Injector?
The 3.9L V8 is known for ignition coil failures, which also cause misfires. A Ford Technical Service Bulletin (TSB 05-22-8) even notes that technicians should rule out fuel problems before replacing coils. A common diagnostic trick is to swap the ignition coil from the misfiring cylinder (e.g., cylinder 3, code P0303) with a coil from a good cylinder (e.g., cylinder 4). If the misfire code changes to P0304, the coil is bad. If the code stays P0303, the problem is likely the spark plug or the fuel injector on that cylinder.
Choosing the Right Aftermarket Fuel Injector
When it's time to replace your injectors, you have a few options. Since these cars are now over 20 years old, going with a quality new aftermarket part is a common and cost-effective choice.
OEM vs. Aftermarket Quality
Original Equipment (OEM) injectors from Ford are high quality but can be very expensive. A quality new aftermarket injector can provide similar performance for a fraction of the price. The key is choosing a reputable brand that focuses on matching the original flow rates and spray patterns.
Available Aftermarket Brands
- Standard Ignition (Standard Motor Products): This is a well-known aftermarket brand that aims to meet or exceed OEM specifications. They are generally considered a reliable choice for daily drivers and are manufactured with extensive testing processes. While occasional defects can occur with any brand, Standard is a solid option.
- GBR Fuel Injection (Remanufactured): Remanufactured injectors are original cores that have been cleaned and rebuilt. While this can be a budget-friendly option, there is a higher risk involved. Multiple owner reports and reviews show a significant rate of GBR injectors being defective out of the box or failing shortly after installation, often by getting stuck open. A stuck-open injector can flood a cylinder with fuel, potentially causing engine damage. Given the risks, it is often wiser to invest in new injectors.
Pro Tip: Always Replace as a Full Set. If one injector has failed due to age and mileage, the others are likely not far behind. Replacing all eight injectors at once ensures that all cylinders receive a balanced and equal amount of fuel, which is critical for a smooth-running engine and prevents you from having to do the same repair again in a few months.
Cost to Replace 2002-2005 Ford Thunderbird Fuel Injectors
| Item | Estimated Cost (for a full set of 8) |
|---|---|
| New OEM Parts | $1200 - $2000+ |
| New Aftermarket Parts | $470 - $850 |
| Remanufactured Parts | $250 - $400 |
| Shop Labor | $250 - $600 |
Cost estimates are approximate and can vary based on location and parts availability.
Frequently Asked Questions (FAQ)
Is replacing the fuel injectors a DIY job?
For an experienced DIY mechanic, yes. The job requires removing the upper intake manifold (plenum) to access the fuel rails. You must relieve fuel pressure before starting and be careful not to get debris into the engine. 🎬 Watch: A helpful walkthrough of the fuel injector replacement process. If you are not comfortable with this level of work, it's best to leave it to a professional.
Do I need any special tools?
You'll need a good socket set, torque wrench, and possibly a fuel line disconnect tool. It's also critical to have a fire extinguisher nearby anytime you work on a fuel system. New O-rings for the injectors are a must and should be lubricated with clean engine oil before installation to ensure a good seal.
What are the risks of using cheap, unbranded injectors?
Low-quality injectors often fail to match the precise flow rate and spray pattern of the original parts. This can lead to continued poor performance, bad fuel economy, and even engine damage from a lean or rich fuel mixture. A stuck-open injector can wash oil from the cylinder walls or hydro-lock the engine, leading to catastrophic failure.
Are there any recalls on the Thunderbird fuel injectors?
No. While Ford has issued recalls for fuel injector issues on other models and engines, there are no widespread safety recalls specifically for fuel injector failure on the 2002-2005 Ford Thunderbird 3.9L V8. Problems on these vehicles are typically due to age and wear.
Helpful Videos
Technical Specifications

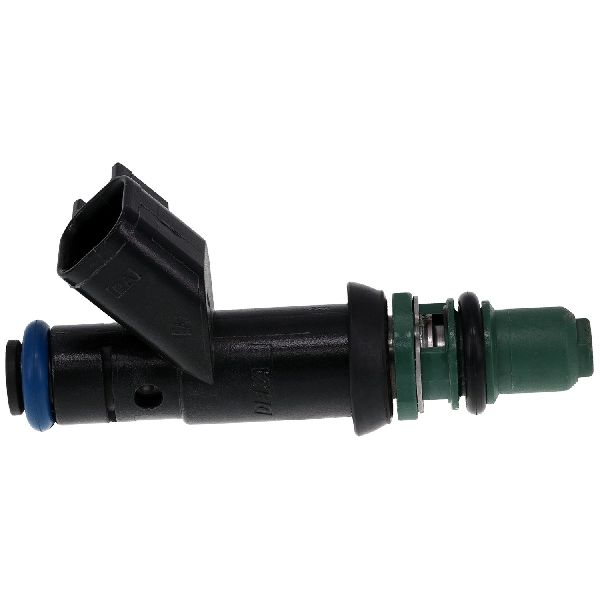

OEM Part Numbers: XW43-CA XW4E9F953CA XW4Z9F593CA 822-11161
Engine: 3.9L DOHC V8. Quantity Required: 8. Fuel System: Port Fuel Injection (PFI).
