Ford Thunderbird Starter Replacement Guide (2002-2005)
A no-nonsense guide to starter problems and replacement for your 2002-2005 Ford Thunderbird.
- Always test the battery and check cable connections before condemning the starter; many starting issues are related to the battery.
- The starter for the 2002-2005 Thunderbird is shared with the Lincoln LS, making parts easy to find.
- New aftermarket starters from brands like Remy and BBB Industries are reliable and cost-effective alternatives to expensive OEM parts.
- A single, loud 'click' with no engine crank is the most definitive symptom of a failed starter motor.
Is Your Thunderbird's Starter Failing?
If your 2002-2005 Thunderbird refuses to start, the starter motor is a likely suspect, but it's not the only one. These cars are known for a few electrical quirks, so it's important to diagnose the problem correctly. The most common symptom of a bad starter is a 'click' sound when you turn the key, but the engine doesn't crank. You might also hear a grinding noise or nothing at all. However, these symptoms can also point to a weak battery or a bad connection. Before replacing the starter, always make sure your battery is fully charged and the terminals are clean and tight.
Check The Battery First
Many starter issues on the Thunderbird are actually battery problems in disguise. A weak battery can cause a clicking sound or a slow crank. If your interior lights are dim or other electronics seem weak, have your battery tested before buying a starter. 🎬 Watch: A simple guide to diagnosing a bad starter motor. Also, check for loose or corroded positive cable connections, as this has been noted by other Thunderbird owners as a source of no-start issues.
🎬 See how one owner fixed a single-click no-start issue.Choosing a New Aftermarket Starter
The starter on the 2002-2005 Thunderbird is shared with the Lincoln LS, which was produced in greater numbers. This is good news, as it means parts are readily available. When replacing your starter, you'll find new aftermarket options are a cost-effective choice compared to dealership OEM parts. These are brand-new units, not rebuilt, and are designed to meet or exceed original specifications.

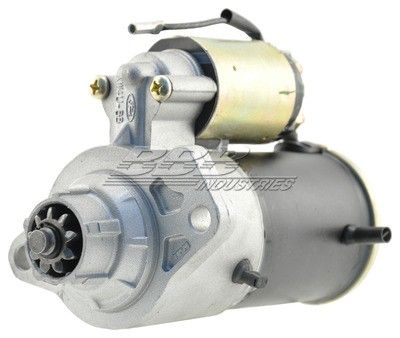

- BBB Industries: A well-known name in the aftermarket, BBB Industries produces both new and remanufactured starters. They are a supplier for many major auto parts stores and are generally considered a reliable, standard-quality replacement option.

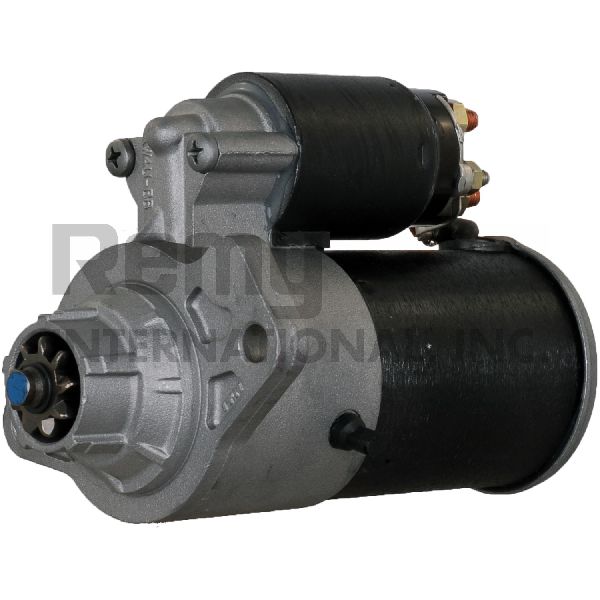

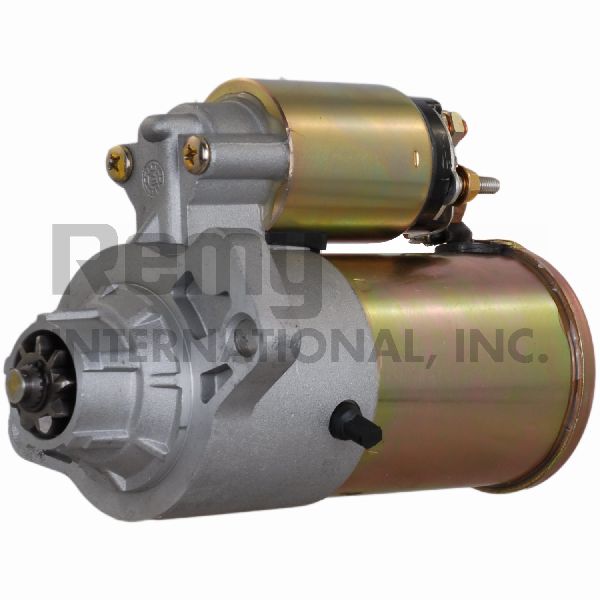

- Remy: With a long history tied to General Motors' original Delco-Remy division, Remy is another popular aftermarket brand. Owners and mechanics often report good experiences with new Remy starters, considering them a dependable choice that often comes with a good warranty.
What is a "New" Aftermarket Part?
Unlike a "remanufactured" or "rebuilt" part, which uses a mix of old and new components, a new aftermarket starter is made entirely from new materials. This often provides greater peace of mind, as there are no pre-existing worn components. Both BBB Industries and Remy offer new starters for your Thunderbird.
Starter Replacement Cost
The cost to replace a starter depends on whether you do it yourself or use a repair shop. The part itself is affordable, but labor can add to the total cost.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter (Part) | $100 - $139 |
| Shop Labor | $84 - $124 |
| Total Estimated Cost (at a shop) | $292 - $365 |
Frequently Asked Questions
How do I know if it's the starter or the battery?
If you get a jump start and the car starts immediately, the problem is most likely your battery. If you hear a single, solid click when turning the key but nothing happens, the starter is a strong possibility. If you hear a rapid clicking sound, it could be a weak battery unable to provide enough power to the starter.
How difficult is it to replace the starter on a 2002-2005 Thunderbird?
The job is moderately difficult for a DIY mechanic. Accessing the starter requires working from underneath the vehicle. You will need to safely raise and support the car, disconnect the battery, and remove electrical connections and mounting bolts, which may require extensions and swivels to reach. The general steps are straightforward, but access can be tight.
🎬 Watch this video for tips on removing the starter.Are there any recalls for the Thunderbird starter?
There are no specific recalls for the starter motor on the 2002-2005 Ford Thunderbird. A broader Ford recall (18S25) was issued for other models regarding improperly tightened starter cable nuts, which could cause a fire, but this did not specifically name the Thunderbird. Always check for loose connections as a general practice.
What are the OEM part numbers for the Thunderbird starter?
Common OEM and cross-reference part numbers include 1W4U-11000-CA, 6W4Z-11002-AA, XW4Z-11002-CG, and Motorcraft SA-882. Using these numbers can help you verify you are buying the correct part for your vehicle.
Helpful Videos
Technical Specifications
OEM Part Numbers: 6W4Z-11002-AA 1W4U-11000-CA 5W4Z-11002-A XW4Z-11002-CG G2MZ11002BE
Type: PMGR (Permanent Magnet Gear Reduction), Voltage: 12V, Power Rating: 1.4kW, Rotation: Clockwise, Number of Teeth: 9
