Ford Thunderbird Starter Motor Replacement Guide (2002-2005)
Diagnosing and replacing the starter on your 3.9L V8 Thunderbird before you get stranded.
- A 'no crank' issue on a 2002-2005 Thunderbird is not always the starter; test the battery and starter relay first.
- Intermittent starting, especially when the engine is hot, is a classic sign of a failing starter motor (heat soak).
- There are no recalls for the starter, but a TSB for the 2005 model notes that excessive electrical draw can cause a no-crank condition.
- A new aftermarket starter from a brand like MPA offers a good balance of quality and value for this vehicle.
Is Your Thunderbird's Starter Failing?
A no-start condition on the 2002-2005 Thunderbird isn't always a dead starter. Due to the vehicle's electronics, several issues can mimic a bad starter. Owners in forums frequently report that a bad starter relay, corroded battery cables, or even a faulty ignition switch can cause a no-crank situation. Before replacing the starter, it's wise to check the simple things first.
Pro Tip: Check the Easy Stuff First
Fully charge and test your battery. A weak battery is a common cause of rapid clicking sounds when you try to start the car. 🎬 Watch: Troubleshooting a Thunderbird that clicks but won't crank. Also, inspect the battery terminals and the main ground connections for tightness and corrosion. One owner found a loose positive cable connection on the firewall was the source of their no-start problem.
Common Failure Symptoms
When the starter motor itself begins to fail, it typically gives one or more of these warnings:
- Single Loud Click, No Crank: You turn the key and hear one solid 'thunk' or 'click', but the engine doesn't turn over. This often points to a failed solenoid or a seized starter motor. 🎬 See how one owner fixed a single-click no-start issue.
- Intermittent Starting: The car starts fine sometimes, but other times it does nothing. This can be caused by 'heat soak,' where the starter fails when hot but works again after it cools down. It can also indicate worn electrical contacts inside the starter solenoid.
- Slow, Labored Cranking: If the engine turns over very slowly, as if the battery is dying, the starter might be wearing out and drawing too much electrical current.
- No Sound at All: If you turn the key and get complete silence, the issue could be the starter, but it's also very likely to be the starter relay, ignition switch, or a bad connection.
Known Issues, TSBs, and Recalls
There have been no safety recalls issued by the NHTSA for the starter motor on the 2002-2005 Ford Thunderbird. However, Ford did issue a Technical Service Bulletin (TSB #0295) for the 2005 model that is relevant. It addresses a potential for "excessive electrical system current draw which could result in a discharged battery and a no crank condition." This highlights that other electrical issues can produce the same symptoms as a failed starter, making proper diagnosis important.
Choosing Your New Aftermarket Starter
For the 2002-2005 Thunderbird, you have a choice between OEM-branded parts and aftermarket alternatives. Since this guide focuses on new aftermarket parts, here's how they stack up.
OEM: Motorcraft
Motorcraft is Ford's own parts brand and serves as the benchmark for quality, fit, and function. While Ford often supplies remanufactured starters under the Motorcraft name (Part No. 6W4Z-11002-ARM), these are rebuilt to a high standard. Choosing Motorcraft ensures you are getting a part designed specifically for your vehicle's 3.9L V8 engine, but it comes at a higher price.

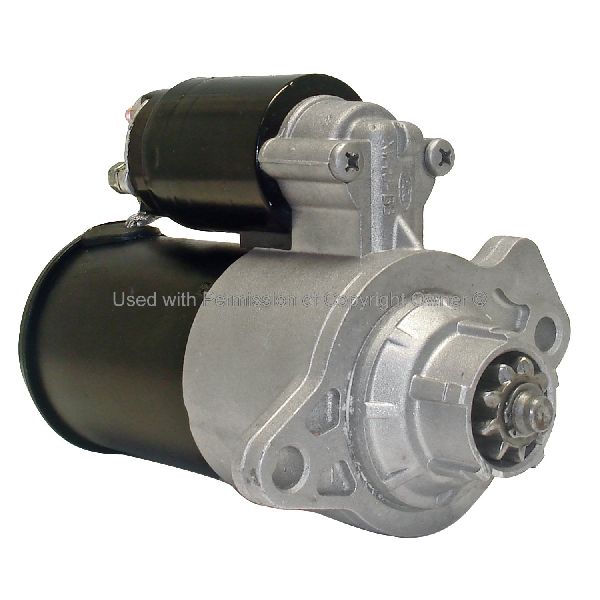

Aftermarket: MPA (and others)
Brands like MPA (Motor Parts of America) specialize in producing new aftermarket parts that meet or exceed original specifications. They often use high-quality internal components like double-sealed bearings and improved solenoid contacts to ensure durability. For a vehicle of this age, a new aftermarket starter from a reputable brand like MPA offers a strong balance of performance, reliability, and value compared to a more expensive OEM part.
| Part Type | Estimated Price Range |
|---|---|
| New Aftermarket | $102.39 - $188.49 |
| Remanufactured Aftermarket | $80 - $150 |
| Remanufactured OEM (Motorcraft) | $170 - $280 |
| Shop Labor | $150 - $275 |
Frequently Asked Questions (FAQ)
Is it hard to replace the starter on a Thunderbird?
It's a moderately difficult job. It requires safely lifting the vehicle with a jack and jack stands, as the starter is located on the lower part of the engine. Access can be tight, but it is a feasible DIY project for someone with mechanical experience.

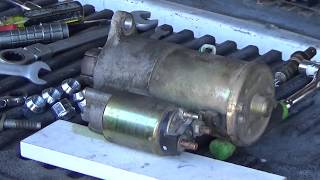

🎬 Watch this step-by-step starter replacement on a 3.9L V8 engine.What tools are needed for a starter replacement?
You will need a good socket and ratchet set with extensions, wrenches, a floor jack, and jack stands. A wire brush for cleaning electrical connections is also highly recommended.
Could my problem just be the starter relay?
Yes, absolutely. A failed starter relay is a common issue that perfectly mimics a dead starter (no crank, no click). The relay is located in the fuse box and is a cheap and easy part to replace for diagnosis. Many owners suggest swapping it with a known good relay (like the horn relay, if it's the same part number) to test it.
Should I buy a new or remanufactured starter?
A new aftermarket starter from a quality brand like MPA offers the peace of mind of all-new components and often comes with a good warranty. A quality remanufactured part (like a Motorcraft) is also a great option, as it has been fully rebuilt and tested to factory specs, often at a lower cost than brand new OEM. Avoid the cheapest options, as their reliability can be questionable.
Helpful Videos
Technical Specifications
OEM Part Numbers: XW4Z-11002-CG 6W4Z-11002-ARM G2MZ-11002-BE
Fits the 3.9L DOHC V8 engine used in the 2002-2005 Ford Thunderbird. This platform (DEW98) and engine are shared with the 2000-2006 Lincoln LS and 2000-2002 Jaguar S-Type, so parts may be cross-compatible.
