Ford Thunderbird Vehicle Speed Sensor Guide for 2002-2005 Models
Fix your Thunderbird's erratic speedometer and harsh shifting by understanding and choosing the right vehicle speed sensor.
- A bad speed sensor on a 2002-2005 Thunderbird will cause a faulty speedometer and, more importantly, harsh or incorrect transmission shifting.
- The sensor is located on the driver's side of the transmission and can be replaced by a DIYer with moderate skills in about an hour.
- Quality aftermarket brands like Standard Ignition or Dorman are reliable and cost-effective alternatives to the more expensive OEM Motorcraft part.
- This part is often called the Vehicle Speed Sensor (VSS) or the Output Shaft Speed (OSS) sensor; for this car, they refer to the same function.
Is Your Thunderbird Shifting Hard or Is the Speedometer Acting Up?
If you're experiencing strange transmission behavior or an unreliable speedometer in your 2002-2005 Ford Thunderbird, a failing Vehicle Speed Sensor (VSS) is a likely culprit. This sensor, also known as an Output Shaft Sensor (OSS) on your car's 5R55S or 5R55N transmission, is a common failure point that can cause significant drivability issues. 🎬 Watch: 5 common symptoms of a failing speed sensor Fortunately, it's a straightforward and affordable part to replace.
Choosing the Right Aftermarket Speed Sensor
For a simple electronic part like a VSS, an aftermarket sensor is often a smart choice, saving you money over a dealer part without sacrificing reliability. However, not all aftermarket brands are created equal. Here’s a breakdown of the available options:
- Standard Motor Products (Standard Ignition): Often considered a top-tier aftermarket brand. They have a strong reputation for producing parts that meet or exceed original equipment (OE) specifications. For a critical sensor that affects transmission performance, Standard is a very reliable choice.
- Dorman: Dorman is one of the most common aftermarket brands, offering a wide range of parts. Their quality can be hit-or-miss depending on the part, but for common sensors, they are generally a reliable, budget-friendly option. Many owners have used Dorman parts with success.

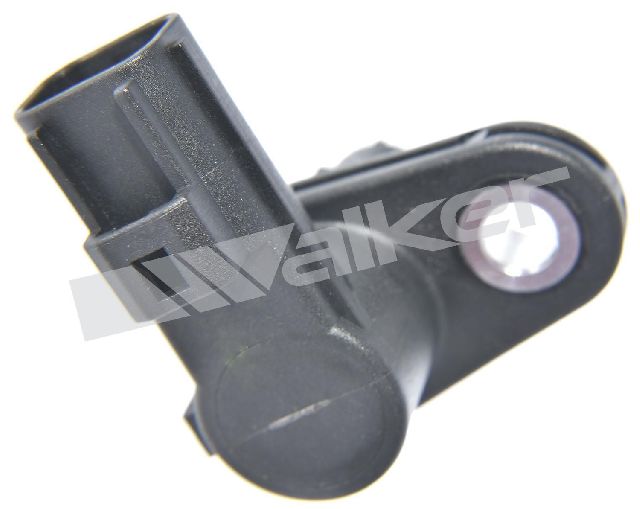

- Walker Products: Walker is another established brand specializing in engine management and fuel system parts. They are a solid economy choice and provide a dependable alternative to more expensive brands.
Pro Tip: OEM vs. Aftermarket
The original sensor on your Thunderbird is a Motorcraft part. While an OEM sensor is a guaranteed fit, a quality aftermarket sensor from a reputable brand like Standard Ignition or Dorman will perform reliably and save you money. The key is to avoid unbranded, no-name parts which can fail prematurely.
Known Issues, Recalls, and TSBs
There are no specific safety recalls for the vehicle speed sensor on the 2002-2005 Ford Thunderbird. However, Ford has issued recalls and customer satisfaction programs for similar OSS sensor issues on other vehicles, which can cause unintended downshifts. While your Thunderbird isn't covered by these specific programs, it highlights that OSS failure is a known issue on Ford transmissions of this era.
Cost of Replacing a Vehicle Speed Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Dorman, Standard, Walker) | $22.35 - $30.28 |
| New OEM (Motorcraft) | $80 - $150 |
| Shop Labor | $134 - $197 |
Frequently Asked Questions (FAQ)
Where is the vehicle speed sensor located on my Thunderbird?
The Output Shaft Speed (OSS) sensor, which acts as the main VSS, is located on the driver's side of the transmission, towards the rear. It is mounted on the top of the transmission and is accessed from underneath the vehicle. 🎬 See this walkthrough for replacing the sensor on a Ford You may need to lower the back of the transmission slightly to get enough room to change it.
Is the Vehicle Speed Sensor the same as an ABS Wheel Speed Sensor?
No, they are different parts with different jobs. The Vehicle Speed Sensor (or Output Shaft Sensor) measures the speed of the transmission's output shaft to control the speedometer and shifting. An ABS Wheel Speed Sensor measures the rotation speed of an individual wheel for the Anti-lock Brake System (ABS) and traction control. A bad ABS sensor will usually trigger ABS or traction control warning lights, not cause shifting problems.
How many speed sensors does my Thunderbird's transmission have?
The 5R55N/S automatic transmission in your Thunderbird has two speed sensors: an Input Shaft Speed (ISS) sensor and an Output Shaft Speed (OSS) sensor. They work together, but the OSS sensor is the one that provides the signal for the speedometer and is most commonly referred to as the VSS. The symptoms described in this article primarily point to a failure of the OSS sensor.
🎬 Learn more about the signs of a bad transmission sensorDo I need to reset the computer after replacing the sensor?
It is good practice to clear the diagnostic trouble codes with a scan tool after the repair. However, the system should recognize the new, functioning sensor on its own after a few drive cycles, and the check engine light should turn off if the sensor was the only problem.
Helpful Videos
Technical Specifications
OEM Part Numbers: XW4Z7H103AA DY1211
Fits the 5R55N and 5R55S automatic transmissions used in the 2002-2005 Ford Thunderbird. The transmission uses two identical sensors for input and output speed readings.
