Ford Thunderbird Wiper Motor Guide (2002-2005)
Keep your vision clear by understanding the common failure points and replacement options for your Thunderbird's wiper motor.
- The 2002-2005 Thunderbird uses a 'smart' wiper motor with an integrated control module; electrical issues can be caused by the motor itself.
- Symptoms of failure include slow operation, incorrect parking, no movement, or wipers turning on by themselves.
- Before replacing the motor, check the fuse and ensure the wiper arms haven't stripped their mounting splines.
- Replacement is moderately difficult due to tight space, and may take a professional about 3 hours.
Symptoms of a Failing Wiper Motor
When the wiper motor in your Thunderbird starts to fail, it will usually give you a few warning signs. Ignoring them can leave you without working wipers in bad weather, which is a serious safety risk.
- Slow or Stuttering Wipers: The most common symptom is sluggish wiper operation. Even on the highest speed setting, the wipers may move slowly or hesitate as they sweep across the glass. This often points to internal wear within the motor.
- Wipers Won't Park Correctly: If your wipers stop in the middle of the windshield when you turn them off instead of returning to the base, the internal park switch has failed. This switch is part of the motor assembly and cannot be replaced separately. 🎬 Check out this complete guide to replacing your wiper motor.
- No Movement at All: You might turn the wipers on and get no response. This can indicate a completely failed motor or a bad electrical connection. It's important to first check the fuse before assuming the motor is the culprit.
- Intermittent or Phantom Operation: Sometimes, a failing motor module can cause the wipers to turn on by themselves or only work sporadically. While this can also be caused by the multifunction switch on the steering column, it is a known symptom of a faulty motor module in these Thunderbirds.
Known Issues for the 2002-2005 Thunderbird
While there are no major recalls or Technical Service Bulletins (TSBs) specifically for the wiper motor on the 2002-2005 Thunderbird, owner forums point to a few related issues. Some owners have experienced 'phantom wiping,' where the wipers activate on their own. This is often traced back to an electrical issue within the motor's integrated module or the multifunction switch. Additionally, a bad seal on the wiper motor bracket can allow water to leak into the engine bay, potentially causing issues with the ignition coils. It's also important to distinguish motor failure from linkage failure; if you can hear the motor running but the arms don't move, the problem is likely the linkage or the splines on the wiper arms themselves.
Pro Tip: Check the Basics First
Before you buy a new motor, check the simple things. Make sure the wiper fuse is good. Also, check that the nuts holding the wiper arms are tight. If you can hear the motor running but the wipers don't move, the splines on the arms might be stripped, not the motor itself.
Choosing the Right Aftermarket Wiper Motor
When replacing the wiper motor on your Thunderbird, you have a few options. An OEM Ford (Motorcraft) part is always a good choice, but quality aftermarket parts can offer reliable performance for less money. One owner reported that a cheap aftermarket motor failed under load, and they had success with a Motorcraft replacement.
Brand Quality Tiers
- Cardone: Cardone is a well-known brand that offers both new and remanufactured parts. Their new parts are generally built to match original specifications and are a popular choice. However, some users have noted that quality can sometimes be inconsistent between different product lines.
- WAI Global: WAI Global specializes in automotive electrical components and has a reputation for producing quality parts like alternators, starters, and wiper motors. They are generally considered a reliable mid-tier option. Some forum discussions suggest that WAI and Cardone parts may sometimes be manufactured by the same company and re-branded.
- Replacement: This is often a house brand or generic option. These parts are designed to be a direct fit and are the most budget-friendly choice. They meet basic requirements but may not have the same long-term durability or warranty as more established brands.
| Brand | Typical Price Range | Quality Tier | Notes |
|---|---|---|---|
| Cardone (New) | $85 - $115 | Good | Well-known brand, offers parts that meet OE standards. |
| WAI Global | $75 - $100 | Good | Solid reputation for electrical components. |
| Replacement | $68 - $80 | Standard | Most affordable option, meets basic fit and function. |
Frequently Asked Questions (FAQ)
Is it hard to replace the wiper motor on a 2002-2005 Thunderbird?
The replacement is moderately difficult and can be a tight squeeze. It requires removing the wiper arms and the plastic cowl panel at the base of the windshield. Some owners report that the brake booster can get in the way, making it tricky to remove the wiper motor and linkage assembly. A professional mechanic may take around 3 hours for the job.

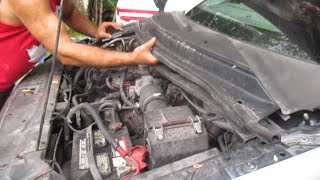

🎬 Watch this step-by-step guide on how to replace the motor.My wipers turn on by themselves. Is the motor bad?
It could be. This 'phantom wiper' issue on the 2002-2005 Thunderbird can be caused by a faulty multifunction switch (the stalk on your steering column) or a problem with the wiper motor's internal electronics. A mechanic with a diagnostic scan tool can test the system to pinpoint the cause before you start replacing parts.
Can I just replace the internal park switch?
No, the park switch is integrated into the wiper motor assembly. If your wipers don't park in the correct position, the entire motor unit must be replaced.
I hear the motor running, but the wipers don't move. What's wrong?
If the motor is making noise, it is likely working. The problem is mechanical. The most common cause is that the soft metal splines inside the wiper arms have stripped out. It could also be a loose nut connecting the linkage to the motor or a broken piece in the wiper linkage itself.

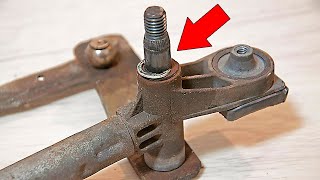

🎬 See how to remove and rebuild a stuck wiper linkage.Helpful Videos
Technical Specifications
OEM Part Numbers: 1W6Z-17508-A 1W6Z-17508-AA WM562
This is an electric motor with an integrated electronic control module and park switch. It mounts to the wiper linkage assembly underneath the cowl panel.
