A GMC Jimmy Owner's Guide to the 1999-2005 Engine Oil Pan
Leaking oil from your Jimmy's 4.3L V6? Here’s what you need to know before you replace the oil pan.
- Confirm the leak is from the oil pan, not a higher location like valve covers or the rear main seal.
- Replacement is a very difficult and expensive job due to poor access, especially on 4WD models.
- You MUST order the correct part for your drivetrain (2WD or 4WD) as they are not interchangeable.
- Aftermarket brands like Dorman and Spectra offer quality, corrosion-resistant replacements that are a good value.
Is Your GMC Jimmy's Oil Pan Failing?
The most common sign of a bad oil pan is seeing a puddle of dark oil on the ground where you park. On these trucks, the original steel or aluminum pans can rust or corrode over time, especially in areas where roads are salted in the winter. Another common failure is a stripped drain plug from years of oil changes. You might also notice your low oil light coming on, or smell burning oil if it's dripping onto the hot exhaust pipe.
Warning: Before you buy a new oil pan, make sure that's where the leak is coming from. Oil leaks from higher up on the engine, like from the valve cover gaskets or rear main seal, can drip down and make it look like the oil pan is the problem. Clean the engine and try to find the highest point of the leak first.
Choosing the Right Aftermarket Oil Pan
For a vehicle of this age, finding a brand new OEM oil pan from GM can be difficult and expensive. Aftermarket parts are the most common and practical solution. They are designed to fit and function like the original but at a much lower cost.

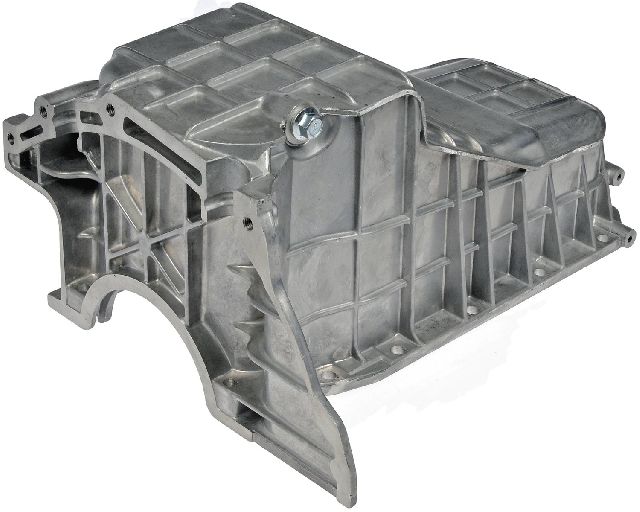

- Dorman: A well-known aftermarket brand, Dorman often provides parts that meet or exceed original specifications. Their oil pans for the Jimmy are typically noted for having a corrosion-resistant coating, which is a major benefit to prevent future rust issues. They often include a new drain plug with the pan.

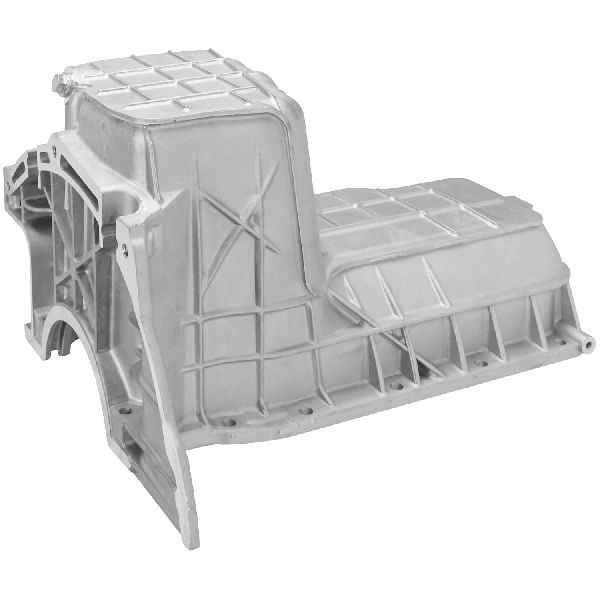

- Spectra: Spectra is another major manufacturer of aftermarket parts. Like Dorman, their parts are a cost-effective alternative to OEM. Forum users sometimes report that Dorman and Spectra parts appear identical, suggesting they may come from a similar manufacturing source. They are generally considered a reliable choice for this repair.
Pro Tip: The biggest mistake you can make is ordering the wrong pan. The 1999-2005 GMC Jimmy was available in both 2-Wheel Drive (2WD) and 4-Wheel Drive (4WD). These two versions use different oil pans to accommodate the front differential on 4WD models. Always confirm your truck's drivetrain before ordering.
Why is Replacing the Oil Pan So Expensive?
While the part itself is moderately priced, the labor involved in this repair is very high. This is not a simple unbolt-and-replace job.
- On 4WD Models: The front axle and differential are directly below the oil pan. To get the pan out, a mechanic must drop the entire front differential assembly. This is a time-consuming process that involves disconnecting steering components, CV axles, and more.
- On 2WD Models: Even without a differential in the way, there isn't enough clearance. The engine must be lifted from its mounts or the transmission crossmember dropped to tilt the engine enough to slide the pan out from between the chassis crossmember and the transmission. Some factory service manuals even suggest pulling the engine completely.
Because of this complexity, shop labor costs can easily be several hundred to over a thousand dollars.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $245 - $486 |
| Shop Labor | $700 - $1,100 |
| Total Professional Replacement | $945 - $1,586 |
Frequently Asked Questions
Can I replace the oil pan on my Jimmy myself?
This is considered an expert-level DIY job. Due to the need to lift the engine or drop the front differential, it is not recommended for beginners. It requires specialized tools, jack stands, and significant mechanical experience. For most owners, this is a job best left to a professional shop.
What else should I replace at the same time?
Since the job is so labor-intensive, it's a good idea to address other "while you're in there" items. Always use a new oil pan gasket. It's also wise to replace the oil pump and pickup tube O-ring. If you have a 4WD model, this is a good time to inspect the CV axles, ball joints, and tie rod ends since they will be disconnected anyway.
Is there a recall on the GMC Jimmy oil pan?
No, there are no active recalls or common Technical Service Bulletins (TSBs) from GM for oil pan failure on the 1999-2005 GMC Jimmy.
Will an oil pan from a Chevy S-10 Blazer fit my GMC Jimmy?
Yes, most likely. The GMC Jimmy and Chevrolet S-10 Blazer from this generation are mechanically identical. As long as the model year and drivetrain (2WD vs. 4WD) match, the oil pans are typically interchangeable.
Technical Specifications
OEM Part Numbers: 12556541 12597151
Fits 4.3L V6 engine. Specific pans required for 2WD and 4WD models. Aftermarket interchange part number is commonly 264-109.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
