A Guide to the Headlight Switch for the 1999-2005 GMC Jimmy
If your headlights or dash lights are acting up, the switch on your dashboard is a likely suspect.
- A failing headlight switch is a common issue, often causing the dash lights to fail before the headlights.
- Replacement is simple and can be done at home in under an hour with basic tools.
- There is no recall for this specific part, but there was a recall for the multifunction switch that affected brake lights on some model years.
- Premium aftermarket brands like Standard Ignition and Rostra offer quality comparable to the original, now-discontinued OEM part.
Common Symptoms of a Failing Headlight Switch
When the headlight switch in a GMC Jimmy starts to fail, it can cause a range of frustrating and potentially dangerous lighting problems. Internal components can wear out or corrode over time, leading to a poor electrical connection. One of the most common issues reported by owners is a loss of instrument panel lights, even when the headlights are working.
Other signs you might need a replacement include:
- Headlights, dash lights, or both flickering or turning off randomly while driving.
- Only high beams or low beams working, but not both.
- The switch feeling hot to the touch after use.
- The instrument panel dimmer no longer adjusting the brightness of the gauges.
- Headlights not turning on at all, which is a critical safety failure.
Safety First: Can You Drive with a Faulty Switch?
If your headlights are not working at all or turn off unexpectedly, it is not safe to drive your vehicle in the dark or in poor weather conditions. A complete loss of visibility is a critical safety risk. If only the dash lights are out, you can drive, but it is unsafe as you cannot see your speed or other important vehicle information at night.
Choosing the Right Aftermarket Headlight Switch
Since the original GM headlight switch for this generation of Jimmy is now discontinued, an aftermarket part is your most practical option. Quality among aftermarket brands can vary, but they generally fall into a few tiers.
- Premium Aftermarket (Rostra, Standard Ignition): Brands like Rostra and Standard Motor Products (SMP) are often engineered to meet or exceed original equipment (OE) specifications. They are typically ISO certified, use high-quality materials like copper conductors, and undergo rigorous testing to ensure reliability. These are excellent choices for owners looking for long-term durability that is comparable to the original part.
- Quality Aftermarket (Replacement, True Tech): These brands offer a balance of value and quality. They are designed as direct-fit replacements and provide a functional and affordable solution to get your lights working properly again. While they may not have the same level of OEM-supply history as premium brands, they are a reliable choice for most repairs.
Estimated Replacement Costs
The cost to replace the headlight switch can vary based on whether you do the work yourself or hire a professional mechanic.
| Part / Service | Estimated Cost |
|---|---|
| New OEM Part (Discontinued) | $55 - $120+ |
| New Aftermarket Part | $70 - $108 |
| Used OEM Part | $15 - $45 |
| Shop Labor | $85 - $125 |
| Total Professional Replacement | $155 - $233 |
Installation Overview
Replacing the headlight switch on a 1999-2005 GMC Jimmy is a straightforward job that most DIYers can complete in under an hour with basic tools. The switch is held in place by clips on the dash trim panel. The basic steps involve removing the dash bezel, 🎬 Watch: How to find hidden screws when removing the bezel. unclipping the old switch, disconnecting the wiring harness, and then installing the new switch in reverse order. No special tools are required, making this a very accessible repair.
🎬 Watch this step-by-step guide to replacing your headlight switch.Frequently Asked Questions
Is there a recall on the headlight switch for the GMC Jimmy?
No, there are no specific recalls for the dash-mounted headlight switch on the 1999-2005 GMC Jimmy. There was a recall (NHTSA 01V-364 and 08V-231) for some 2000-2002 models, but it concerned the hazard light button located within the multifunction (turn signal) switch, which could cause the brake lights to fail. This is a separate part from the main headlight switch.
Why do my dash lights work but my headlights don't?
This usually points to a problem outside of the headlight switch itself. The switch sends power to different circuits. If your dash lights work, the switch is likely getting power. The problem could be a blown fuse for the headlights, a bad headlight relay, or issues with the wiring between the relay and the headlights.
Why do my headlights work but my dash lights don't?
This is a very common symptom of a failing headlight switch in these trucks. The internal rheostat that controls the instrument panel's brightness is a frequent point of failure. When it breaks, the headlights will still function, but the dash lights will not illuminate. 🎬 See how to diagnose a loss of instrument cluster lights. Replacing the switch assembly is the correct fix for this issue.
Can I just clean the switch instead of replacing it?
Some owners have had temporary success by disassembling the switch and cleaning the internal contacts with electrical cleaner. However, this is often a short-term fix. The contacts and internal parts wear down over time, and a full replacement with a new part is the only way to ensure a reliable, long-lasting repair.
Helpful Videos
Technical Specifications

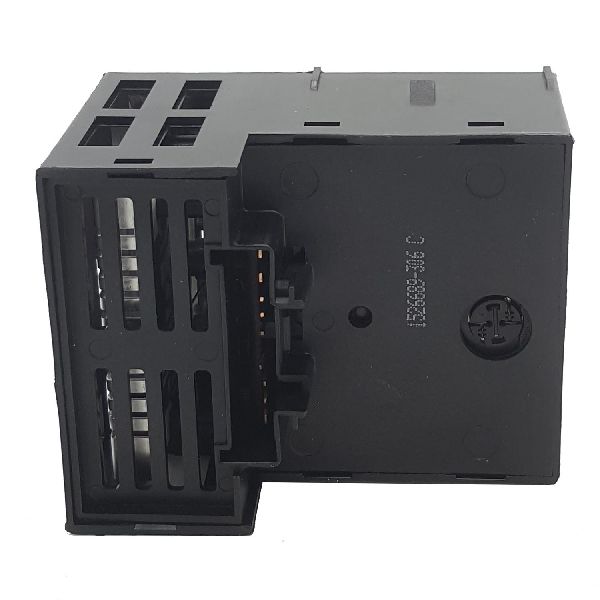

OEM Part Numbers: 15755954 15029237
Dash-mounted switch assembly controlling headlights, parking lights, and instrument panel dimmer.
