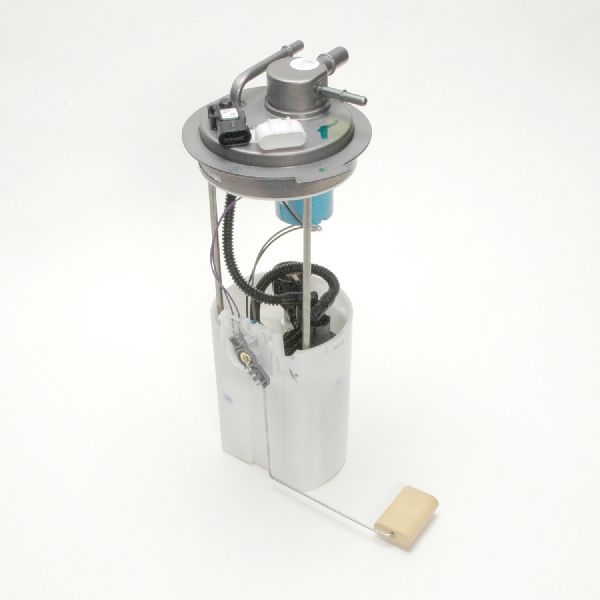

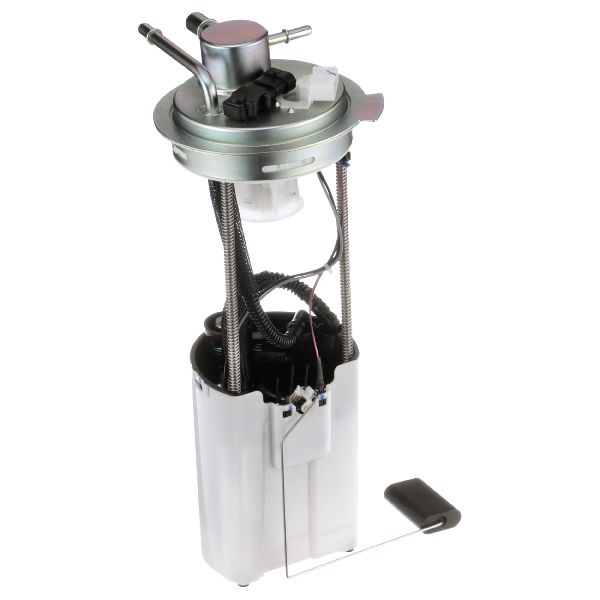

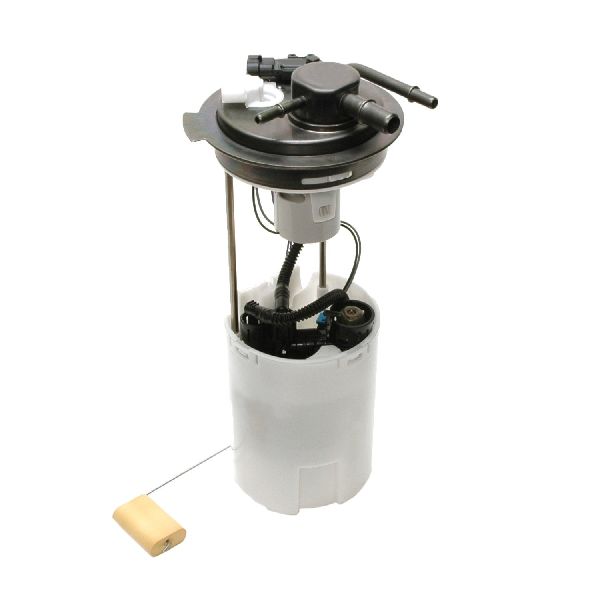

A Guide to the Fuel Pump Module Assembly for 1999-2005 GMC Sierra 1500

Is Your Fuel Pump Failing?

The fuel pump in your 1999-2005 GMC Sierra 1500 is a hardworking part, but it won't last forever. Most pumps begin to show signs of wear after 100,000 miles. When it starts to fail, it can't supply the steady stream of fuel your engine needs, leading to a range of problems from annoying to serious. You might notice the engine sputtering at highway speeds, hesitating when you accelerate, or having trouble starting. In some cases, the truck may stall completely, which can be a safety hazard. A loud whining or humming sound from the fuel tank area is another classic sign of a pump motor that's on its way out.

The Most Common Problem: The Fuel Gauge

For this generation of GMC Sierra, one of the most frequent and well-known issues isn't the pump itself, but the fuel level sending unit that's part of the assembly. These trucks are notorious for the gas gauge becoming erratic or stop working completely. You might see the gauge drop to empty even with a full tank, or it might swing back and forth. This happens because the electrical contacts on the sending unit's float arm wear out over time. Since the sending unit is integrated into the module, the entire assembly must be replaced to fix the gauge.

Choosing the Right Aftermarket Fuel Pump

Since the labor to replace the fuel pump is significant, it's smart to invest in a quality part. You don't want to do this job twice. Here’s a breakdown of the available brands.

Tier 1: OEM & OE-Equivalent Brands

These brands are known to be the original equipment manufacturers for General Motors or are regarded as having equivalent quality. They are your best bet for reliability and correct fit.

• ACDelco: As GM's official parts brand, this is a trusted choice. Many ACDelco fuel pumps are manufactured by Delphi and simply put in an ACDelco box.
• Delphi: Delphi is a major OE supplier for GM and has a strong reputation for quality and reliability in fuel systems. For this specific truck, a Delphi pump is often considered the true original part.
• Bosch: While more commonly an OE supplier for European vehicles, Bosch has a stellar reputation for making durable, high-quality fuel pumps that meet or exceed OEM standards.

Tier 2: Quality Aftermarket Brands

These brands offer a good balance of price and quality. They are a solid choice if an OE-equivalent brand is out of your budget.

• Spectra: A popular aftermarket brand that generally offers good performance for the price.
• Carter: Carter has been in the fuel system business for a long time and is known for producing reliable parts.
• GMB: GMB is another established aftermarket manufacturer that produces a wide range of automotive parts, including fuel pumps.

Tier 3: Economy Brands

This category includes lesser-known brands and private labels (e.g., AutoBest, Skyward, URO Parts, US Motor Works). While the low price is tempting, quality can be inconsistent. Given the difficulty of the replacement, saving a few dollars on a budget pump could lead to another failure and a repeat of the expensive labor costs down the road.

Replacement Cost for a 1999-2005 GMC Sierra Fuel Pump

The total cost depends on the brand of part you choose and shop labor rates in your area. The biggest variable in the repair is the labor involved.

DIY Replacement: Lifting the Bed vs. Dropping the Tank

Replacing the fuel pump on a Sierra is a job a skilled DIYer can tackle, but it requires some muscle. You have two methods to access the pump on top of the fuel tank:

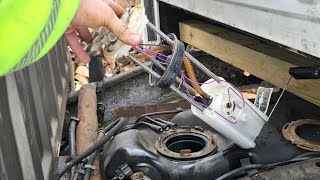

1. Lifting the Bed: Many mechanics prefer this method. You disconnect the filler neck, remove the taillight wiring, and unbolt the six or eight bolts holding the bed to the frame. With a helper or two, you can then slide the bed back or tilt it up to get clear access to the top of the fuel tank. 🎬 See this walkthrough on replacing the pump by lifting the bed This avoids the hassle and danger of dealing with a heavy, fuel-filled tank.
2. Dropping the Tank: This is the more traditional method. It's best to have the tank as empty as possible to make it lighter and safer. You'll need a transmission jack to support the tank as you unbolt the straps holding it in place. You then lower it carefully to disconnect the fuel lines and electrical connectors on top before removing it completely.
🎬 Watch: Step-by-step guide to replacing the pump by dropping the tank

Both methods take roughly 2 to 4 hours. The choice comes down to personal preference and whether you have the space and help to move the truck bed.
