Pontiac Grand Am Wiper Linkage and Transmission Guide (1999-2005)
If your Grand Am's wipers have stopped working, the problem is likely the wiper linkage, not the motor.
- The most common cause of wiper failure on the 1999-2005 Grand Am is a broken plastic bushing in the linkage, not a bad motor.
- You must check your vehicle's build date (before or after 02/03/2003) to ensure you order the correct part.
- Replacing the entire linkage assembly is recommended over trying to install small, difficult bushing kits.
- This is a very common failure; a quality aftermarket part like Dorman provides a reliable, long-term fix.
Is Your Grand Am Wiper Linkage Failing?
A common problem on the 1999-2005 Pontiac Grand Am is the failure of the wiper linkage. The original plastic bushings at the pivot points wear out, crack, and fall apart. When this happens, the arms of the linkage disconnect from the motor or from the pivots that move the wiper arms. You might hear the wiper motor running, but one or both wipers will stop moving entirely. This is a very common point of failure for this vehicle.
Symptoms of a Bad Wiper Linkage
- One Wiper Stops Moving: Often, the driver's side wiper will stop while the passenger side continues to move, or vice-versa.
- Wipers Won't Move but Motor is Running: You can hear the whirring sound of the wiper motor, but the blades don't move at all.
- Erratic or Stuttering Wipers: The wipers may move in a jerky, unsynchronized motion, or get stuck in the middle of the windshield.
- Wipers Won't Park Correctly: When you turn them off, the wipers stop in the wrong position instead of returning to the base of the windshield.
- Loose Wiper Arms: You can easily move one or both wiper arms by hand, indicating they have become disconnected from the linkage.
Check Your Build Date Before Ordering

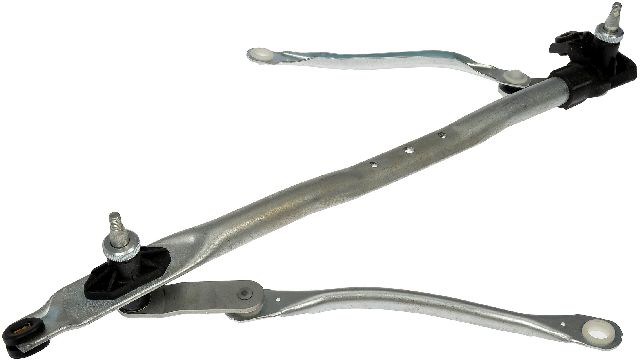

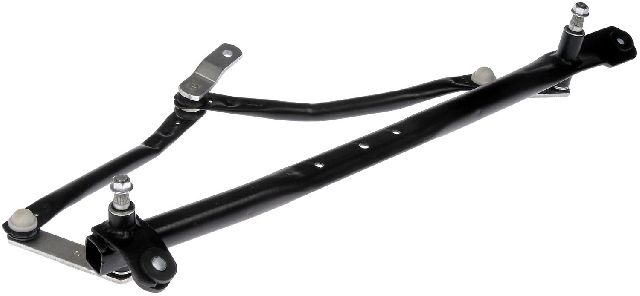

There was a design change during the 2003 model year. You must confirm your vehicle's build date to get the correct part. One linkage assembly fits models from 1999 to early 2003 (built before 02/03/2003), and a different assembly fits models from late 2003 to 2005 (built on or after 02/03/2003). Check the sticker on your driver's side door jamb for the manufacturing date.
Choosing the Right Aftermarket Wiper Linkage
Since the original factory part is known to fail at the plastic bushings, a quality aftermarket replacement is a reliable and cost-effective solution. You do not need to buy a new wiper motor; the motor is a separate part that you will transfer from your old linkage to the new one.
| Brand Tier | Our Brands | Quality & Performance |
|---|---|---|
| Premium Aftermarket | Dorman | Dorman is a well-known aftermarket manufacturer that engineers parts to match original equipment fit and function. They are aware of common failure points and often design their replacements to be more durable than the original. This is a trusted, reliable choice for a lasting repair. |
| Standard Aftermarket | Replacement | The "Replacement" brand offers a direct-fit part that gets the job done at a lower price point. It is designed to meet original specifications and is a good option for budget-conscious repairs. |
Known Issues, Recalls, or TSBs
Searches of the National Highway Traffic Safety Administration (NHTSA) database and for Technical Service Bulletins (TSBs) did not show any specific recalls or bulletins for the wiper linkage failure on the 1999-2005 Pontiac Grand Am. The issue of the plastic bushings failing is a widely known wear-and-tear problem among owners and mechanics.
Pro Tip: Bushing Kits vs. Full Assembly
While small, inexpensive bushing repair kits are sold, they can be very difficult to install without breaking the new plastic pieces. Most mechanics and experienced DIYers recommend replacing the entire wiper linkage assembly. This is a much more straightforward and reliable repair that ensures all pivot points and arms are new.
Frequently Asked Questions (FAQ)
Do I need to replace my wiper motor too?
Probably not. If you can still hear the motor running when you activate the wipers, the motor is working correctly. The problem is the broken linkage that connects the motor to the wiper arms. The new linkage assembly does not include a motor; you will unbolt your old motor and attach it to the new linkage.
Is replacing the wiper linkage a difficult job?
This is a manageable DIY job for someone with basic tools. It involves removing the wiper arms (13mm nuts), popping off the plastic cowl panel, unplugging the motor, and unbolting the linkage assembly (three 10mm bolts). The trickiest part can be transferring the motor from the old assembly to the new one if the bolts are rusted. Expect it to take about 1-2 hours.
Why did my wipers stop working after a snowstorm?
This is a very common cause of failure. If the wiper blades are frozen to the windshield and you turn them on, the motor creates a powerful force that the linkage cannot transfer to the stuck arms. This stress is often enough to break the already-brittle plastic bushings, causing the linkage to fail.
Will the new linkage come with everything I need?
The new linkage assembly includes the arms and pivots. It does not typically include new mounting hardware or a new motor. You will reuse your existing motor and the bolts that hold the assembly to the car body.
Technical Specifications
OEM Part Numbers: 19120840
The assembly consists of metal linkage arms, pivot points, and plastic bushings. It is located in the cowl area between the firewall and the windshield. The wiper motor is a separate component that bolts onto the linkage assembly. There are two distinct versions of this part based on a production change on February 3, 2003.
