Toyota 4Runner Transmission Filter Kit Guide for 1999-2005 Models
Keep your legendary 4Runner shifting smoothly by choosing the right transmission filter kit for your specific year and engine.
- First, identify your transmission: A340F (4-speed, has dipstick) or A750F (5-speed, no dipstick).
- Using the correct fluid type (T-IV for A340F, WS for A750F) is critical for transmission health.
- For reliability, choose an OEM, Beck Arnley, or Wix filter kit.
- Symptoms like delayed shifting, whining, or a burning smell mean you should inspect the filter and fluid immediately.
Understanding Your 4Runner's Transmission
Before buying a transmission filter kit for your 1999-2005 Toyota 4Runner, you must identify which automatic transmission your vehicle has. This year range covers two different 4Runner generations and multiple transmissions, so the parts are not interchangeable.
| Model Year & Engine | Transmission Model | Filter Part Number (OEM) | Fluid Type |
|---|---|---|---|
| 1999-2002 (All Engines) | A340F (4-Speed) | 35330-60030 | DEXRON-III / Toyota Type T-IV |
| 2003-2004 (V6 Engine) | A340F (4-Speed) | 35330-60030 | DEXRON-III / Toyota Type T-IV |
| 2003-2004 (V8 Engine) | A750F (5-Speed) | 35330-60050 | Toyota WS (World Standard) |
| 2005 (All Engines) | A750F (5-Speed) | 35330-60050 | Toyota WS (World Standard) |
Pro Tip: The easiest way to tell the difference is that the A340F transmission has a traditional dipstick to check the fluid level, while the A750F is a "sealed" unit without a dipstick. The service procedure for the A750F is more complex, requiring the fluid level to be checked at a specific temperature.

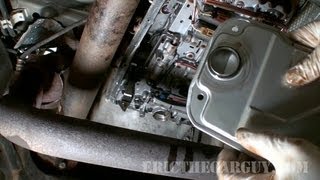

🎬 Watch: Step-by-step transmission fluid and filter change walkthroughSymptoms of a Clogged Transmission Filter
A blocked filter restricts fluid flow, starving the transmission of the pressure and lubrication it needs. Ignoring these signs can lead to serious internal damage.
- Delayed or Harsh Shifting: The vehicle may hesitate before going into gear or shift abruptly.
- Whining or Grinding Noises: Lack of fluid pressure can cause components to make noise.
- Transmission Overheating: A burning smell from the fluid is a major red flag.
- Fluid Leaks: Increased pressure from a clog can force fluid past seals and gaskets.
- Slipping Gears: The transmission may unexpectedly shift out of gear while driving.
Choosing the Right Aftermarket Kit
For a critical component like a transmission filter, quality matters. While OEM is the benchmark, several aftermarket brands offer reliable alternatives.
OEM vs. Aftermarket Quality
Many Toyota enthusiasts prefer using the OEM filter, which is manufactured by Aisin. This is because the fit and filtration media are guaranteed to meet Toyota's specifications. However, reputable aftermarket brands like Wix and Beck Arnley are considered high-quality alternatives that often match OE form and function. Budget-friendly brands like ATP are also available and can be a good option, with some users praising their included gaskets. The key is to avoid unbranded, generic parts that may not fit correctly or provide adequate filtration.
Brand Tiers
- Top Tier (OEM Quality): Beck Arnley and Wix are well-regarded in the automotive community. Beck Arnley focuses on matching OE specifications for foreign nameplates, and their kits often include all necessary gaskets and O-rings. Wix is known for quality filtration media and construction.
- Mid-Tier (Reliable Value): ATP is a popular choice that provides a good balance of quality and price. Their "Third Hand" gaskets, which have undersized holes to hold bolts in place during installation, are a feature some installers appreciate.
- Standard Tier: Brands like Premium Guard and Pioneer Cable offer functional, budget-friendly options. While they meet basic requirements, long-term durability and filtration efficiency may not be on par with top-tier brands.
Frequently Asked Questions (FAQ)
How often should I change my 4Runner's transmission filter?
For the 1999-2005 4Runner, a good interval for a transmission fluid and filter change is every 30,000 to 60,000 miles, especially if you tow or drive in harsh conditions. For the "sealed" A750F transmission, Toyota suggests a 60,000-mile interval under severe use.
Is the filter just a screen or a real filter?
The filters in these Toyota transmissions are technically fine mesh metal or felt-like screens. They are designed to catch larger particles rather than microscopic ones like an oil filter. Even so, they can become clogged over time with clutch material and metal shavings, making replacement necessary.
Do the kits come with a gasket or sealant?
Most kits for the A340F transmission include a pre-formed pan gasket, often made of rubber or cork. The A750F transmission pan does not use a pre-formed gasket from the factory; it uses Form-In-Place Gasket (FIPG) sealant. Some aftermarket kits may still include a reusable rubber gasket as an alternative to sealant. Always verify what your chosen kit includes.
What is the most common mistake when ordering this part?
The most common mistake is ordering a kit for the wrong transmission. An owner of a 2004 V8 model (A750F) might accidentally buy a kit for a 2004 V6 (A340F). Always confirm your vehicle's engine and transmission type before purchasing.
Helpful Videos
Technical Specifications
OEM Part Numbers: 35330-60030 35330-60050
Kit typically includes a transmission filter (strainer) and a pan gasket or O-rings. Filter construction is a metal or plastic body with a fine mesh screen. Two main versions exist for this year range: one for the A340F transmission and one for the A750F transmission.
