A Guide to Spark Plugs for the 1999-2005 Workhorse P32 Chassis
Keep your Workhorse P32's V8 engine running strong by choosing the right spark plugs for the job.
- Use Iridium spark plugs (like the OEM AC-Delco 41-101) for the longest life, which is important due to the difficult installation.
- While changing plugs, inspect the engine wiring harness for any signs of rubbing against the A/C pulley to prevent a common no-start issue.
- Accessing the rear spark plugs is very difficult and requires removing the interior 'doghouse' engine cover.
- Always replace spark plug wires at the same time as the plugs to prevent future misfires caused by heat-damaged wires.
Symptoms of Failing Spark Plugs
Worn-out spark plugs can cause noticeable problems in your RV. Because you are moving a heavy vehicle, even small issues can feel significant. Look out for these common symptoms:
- Rough Idle: The engine may shake or vibrate more than usual when you are stopped.
- Engine Misfires: You might feel a hesitation or stumble from the engine, especially when accelerating. This can trigger a flashing Check Engine Light.
- Poor Fuel Economy: If you find yourself stopping for gas more often, failing spark plugs could be a cause. An inefficient spark wastes fuel.
- Difficulty Starting: A weak spark can make it harder for the engine to turn over and start.
- Check Engine Light: The most common codes for spark plug issues are P0300 (random misfire) or P0301 through P0308 (misfire on a specific cylinder). 🎬 See how to diagnose and fix misfire codes with hand tools.
A Critical Known Issue: Wiring Harness Chafing

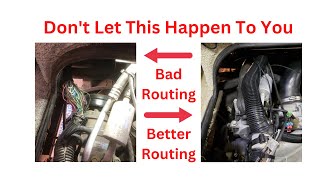

A known issue on the 8.1L Vortec engine is the engine wiring harness rubbing against the air conditioning pulley. Over time, this can wear through the wires, causing a short that shuts the engine down completely, resulting in a "crank, no start" condition. While changing your spark plugs, it is critical to inspect this harness. It is located on the front of the engine. 🎬 Watch: How to inspect and secure your engine wiring harness. Ensure there is adequate clearance and that it is properly secured away from the pulley to prevent future failure.
Choosing the Right Aftermarket Spark Plug
The 1999-2005 P32 chassis used two main engines: the 7.4L V8 (1999-2000) and the 8.1L V8 (2001-2005). While many plugs fit both, the 8.1L engine came from the factory with long-life iridium spark plugs. When choosing a replacement, you have three main types:
- Iridium: This is the best choice for longevity and performance. Brands like NGK and Champion offer iridium plugs, as does the original equipment supplier, AC-Delco. They have a very hard, fine-wire electrode that provides a strong spark for a very long time—often up to 100,000 miles. They are the most expensive option, but they save you from doing this difficult job more often.
- Platinum: Double platinum plugs are a good middle-ground option. They last longer than basic copper plugs but cost less than iridium. They are a solid upgrade for vehicles that originally came with copper plugs.
- Copper/Nickel: These are the most basic and affordable spark plugs. While they provide a good spark, they wear out much faster, sometimes in as little as 20,000-30,000 miles. Given the difficulty of changing plugs on a P32, most owners should avoid copper plugs unless it's for a short-term fix.
Brand Notes: NGK vs. Champion
The original equipment spark plugs for the 8.1L engine are AC-Delco Iridium (Part No. 41-101). In the aftermarket, both NGK and Champion are available. Many mechanics and vehicle owners report a strong preference for NGK plugs, citing better reliability and performance out of the box. Some users have reported immediate misfire issues with Champion plugs that were solved by switching to NGK. While Champion is a well-known brand and offers a budget-friendly option, NGK is generally considered a more reliable choice for this application.
Cost of New Spark Plugs for Workhorse P32
| Part Type | Price Range (Per Plug) | Notes |
|---|---|---|
| Aftermarket Copper/Nickel | $3.91 - $7.00 | Shortest lifespan. Not recommended due to high labor/difficulty. |
| Aftermarket Platinum | $7.99 - $12.00 | Good balance of price and longevity. |
| Aftermarket Iridium | $10.00 - $20.58 | Longest life, best performance. Recommended for the P32. |
Frequently Asked Questions (FAQ)
How often should I change the spark plugs on my Workhorse P32?
If you use iridium spark plugs, like the original equipment AC-Delco 41-101, you can go up to 100,000 miles. If you use platinum plugs, plan on changing them every 60,000 miles. For basic copper plugs, the interval is much shorter, around 20,000-30,000 miles.
What is the correct spark plug gap for the P32?
The recommended AC-Delco 41-101 iridium plugs come pre-gapped at 0.060 inches. While some owners discuss changing the gap, it is now recommended to install them as they come. The iridium tip is very fragile and can be easily damaged if you try to adjust the gap. Always check the gap gently with a feeler gauge to ensure it wasn't damaged in shipping, but do not try to change it.
How hard is it to change the spark plugs myself?
The job is mechanically simple but physically difficult. You must remove the large interior engine cover, often called the "doghouse," to get access. Even then, the rear spark plugs are very hard to reach. It requires patience, extensions, and universal joints for your socket wrench. For this reason, many owners choose to have a shop perform the work.

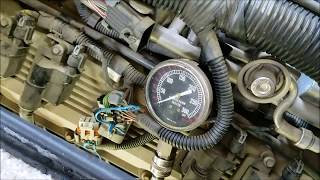

🎬 Watch this walkthrough of a spark plug change on a Workhorse.Should I replace the spark plug wires at the same time?
Yes, it is highly recommended. The engine bay of a motorhome gets very hot, which can make the spark plug wires and boots brittle and prone to failure. Since you have to access the plugs anyway, replacing the wires at the same time is a smart move and can prevent future misfires.
Are there any recalls I should know about?
Yes, but it is not related to the spark plugs. There was a safety recall (NHTSA #06V225000) for some 2004-2006 P32 chassis with the 8.1L engine for a fuel rail clip that could fail and cause a fuel leak. This is a serious fire hazard. You can check with a dealer or use your VIN on the NHTSA website to see if your chassis was affected and if the recall work was completed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 41-101
Engine compatibility: 7.4L Vortec V8, 8.1L Vortec V8. Recommended Spark Plug Gap: 0.060 inches (do not adjust on Iridium plugs). Quantity required: 8.
