A Comprehensive Guide to the 1999-2006 Volvo S80 A/C Compressor
Everything a first-generation S80 owner needs to know before replacing their A/C compressor.
- The most common failure is an intermittent cooling problem caused by the A/C clutch gap widening over time.
- If the compressor is making a grinding noise, it could seize and break the serpentine belt, disabling the car.
- When replacing the compressor, you MUST also replace the receiver/drier and expansion valve to prevent premature failure of the new part.
- Choose a Tier 1 aftermarket brand like Mahle or Nissens for OEM-level quality and reliability.
Is Your S80's A/C Acting Up?
If you own a 1999-2006 Volvo S80, you know it's a comfortable and well-built car. However, a common point of failure is the air conditioning compressor. The most widespread issue isn't a sudden breakdown, but a gradual failure that can be frustrating to diagnose. Understanding the specific problems with these compressors can help you make a smart repair choice.
The Famous A/C Clutch Gap Problem
The single most common failure on this generation of S80 is the A/C compressor's clutch gap growing too wide. Over time, the clutch wears down, and the gap between the clutch plate and the pulley increases. The factory spec is 0.3mm-0.5mm. As it wears past 0.8mm, the electromagnet that engages the clutch becomes too weak to work, especially when hot. 🎬 Watch: How to diagnose why your A/C stops working. This leads to the classic symptom: your A/C works for 10-20 minutes and then starts blowing warm air as the engine bay heats up. After the car cools down, it will work again for a short time.
Symptoms of a Failing A/C Compressor
- A/C Works Intermittently: This is the primary sign of the clutch gap issue. The system blows cold, then warm after driving for a bit.
- Loud Grinding or Squealing Noises: A loud grinding noise when the A/C is on points to a failing internal bearing. If you hear this, stop using the A/C. A seized compressor can break the serpentine belt and disable your alternator and power steering.
- No Cold Air at All: If the air only blows warm or hot, the compressor's clutch may not be engaging at all, or the compressor may have failed internally.
- Visible Leaks: Oily residue on the body of the A/C compressor indicates a seal has failed and refrigerant and oil are leaking out.
Choosing the Right Aftermarket Compressor
When your compressor fails, you don't have to buy an expensive OEM part from the dealer. Several aftermarket brands offer quality replacements. They generally fall into two tiers for your Volvo.
Tier 1: OEM-Quality Brands
These brands are often the original equipment manufacturers for Volvo or other European carmakers. They are known for excellent quality and fitment.

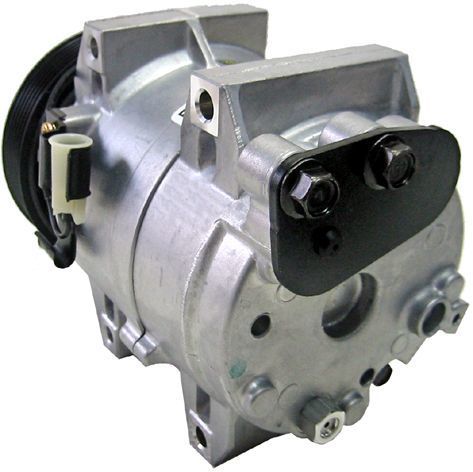

- Mahle: Mahle (who also owns Behr) is a well-respected German company and an OEM supplier. They are known for high-quality parts that meet or exceed factory standards.
- Nissens: A Danish company with a strong reputation in the aftermarket for cooling and climate components. Many Volvo owners and shops trust Nissens for its reliability.
- Bosch: While a household name for quality parts, Bosch can sometimes be more expensive than other OEM-quality brands for this specific application.
Tier 2: Budget-Friendly Brands
These brands offer a lower price point, but their long-term reliability can be inconsistent. Reviews are often mixed.

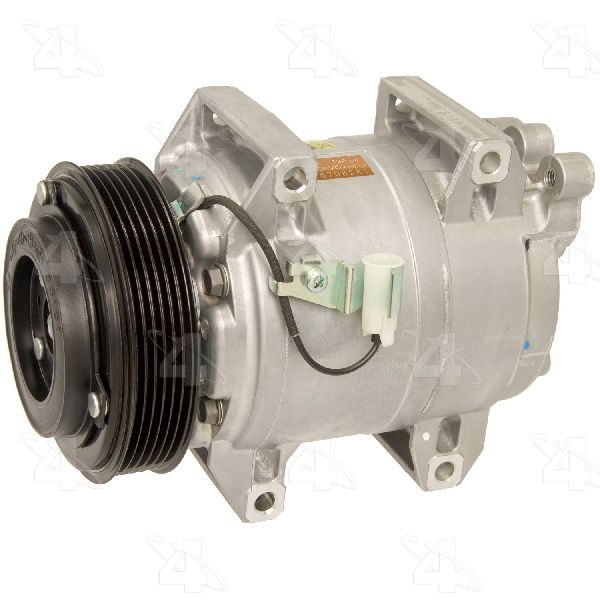

- Four Seasons: One of the largest aftermarket remanufacturers, but owner reviews are very mixed. Many report premature bearing failures, sometimes within a year or two.

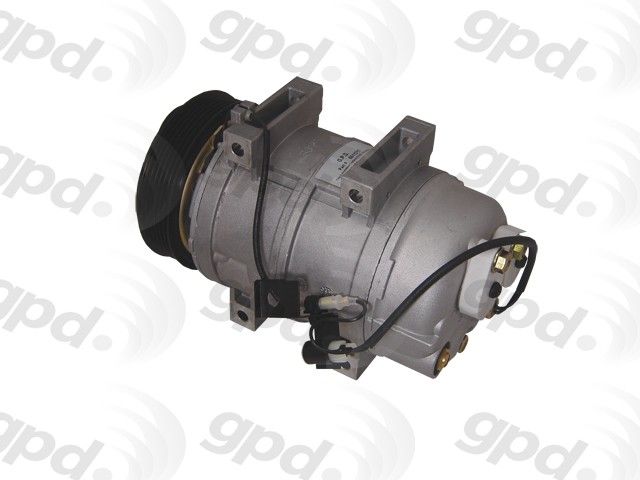

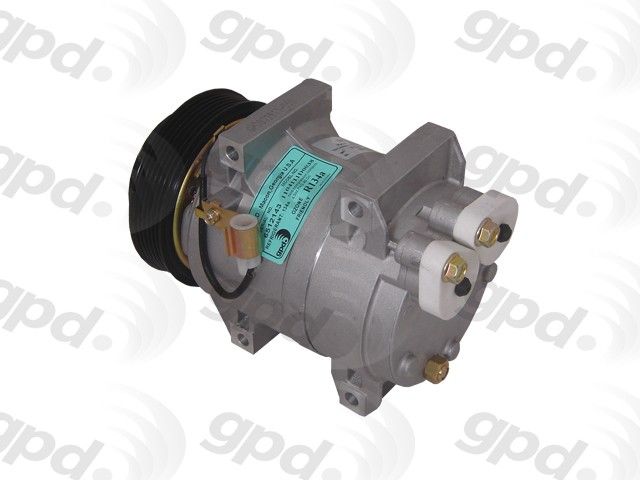

- Global Parts (GPD): Another budget-focused brand. While they offer a wide range of parts, they are not known for the same level of durability as Tier 1 brands.
A Note on Recalls
While there are no major recalls for the A/C compressor on the 1999-2006 S80, there is a critical safety recall for the driver-side airbag inflator, which can rupture and cause serious injury. It is highly recommended to check with a Volvo dealer or the NHTSA website to ensure this free repair has been performed on your vehicle.
Replacement Costs
The cost to replace the A/C compressor involves the part itself, labor, and several essential companion parts.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Compressor | $283 - $514 |
| New OEM Compressor | $850 - $935 |
| Shop Labor | $200 - $300 |
| Receiver/Drier & Expansion Valve | $40 - $100 |
| A/C System Evacuate & Recharge | $150 - $250 |
| Total Estimated Job Cost | $673 - $1200+ |
Frequently Asked Questions (FAQ)
Can I just replace the A/C clutch?
Sometimes, yes. If the compressor itself is fine and only the clutch is worn, you can replace just the clutch assembly. For the common clutch gap issue, it's often possible to fix it by removing shims from the clutch plate, which is a low-cost repair that doesn't require opening the refrigerant system. 🎬 See this clever zip tie fix for the clutch gap. However, if the compressor bearing is noisy or the unit is leaking, the entire compressor must be replaced.
Do I have to replace other parts with the compressor?
Yes. It is mandatory to replace the A/C receiver/drier (also called an accumulator) and the expansion valve anytime a new compressor is installed. Failure to do so will contaminate your new compressor with moisture and debris, causing it to fail quickly and will void the part's warranty.
Can I do this job myself (DIY)?
Replacing the compressor is a mechanically involved job that requires special tools. Most importantly, the refrigerant must be legally and safely recovered with a professional machine before starting the work, and the system must be vacuumed and recharged afterward. For these reasons, it is not recommended for most DIY mechanics.
🎬 Watch: A complete walkthrough of the compressor replacement process.Should I check the clutch gap on a new compressor?
Yes. It is a wise pro-tip to check the air gap on your new aftermarket compressor before installing it. While they should be set correctly from the factory, verifying the gap is between 0.3mm and 0.5mm with a feeler gauge can prevent future headaches.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8602621 36001066
Compressor Type: Zexel/Valeo DKS17D. Clutch Air Gap: 0.3mm - 0.5mm. Refrigerant Oil: PAG 46.
