Volvo S80 Engine Cooling Fan Module Guide (1999-2006)
If your S80 is overheating or the fan won't shut off, the cooling fan module is a likely suspect.
- A failed module can cause overheating, a dead battery, or poor A/C performance.
- For 1999-2001 models, check if Recall #141 for the fan assembly was performed.
- Replacing only the aftermarket module is far cheaper than the dealer's full fan assembly.
- Common symptoms include the fan not turning on, or the fan staying on after the car is off.
Is Your S80 Fan Acting Up?
A faulty engine cooling fan module is a known issue on the first-generation Volvo S80. Early models, from 1999-2001, were subject to a significant recall because the original fan assembly could overheat and become a fire risk. While later models in this generation received an updated part, the module remains a common failure point as these vehicles age. When it fails, it can leave you stranded with an overheating engine or a dead battery.
Recall Notice for 1999-2001 S80 Models
Volvo issued Recall #141 for 1999-2001 S80s due to a defect where the electric cooling fan could overheat, melt components, and in rare cases, cause a fire. The fix was a complete replacement of the fan assembly with an improved design. If you own one of these model years, it is critical to verify if this recall work was performed.
Choosing the Right Aftermarket Part
When this module fails, a Volvo dealer will likely only offer the entire fan assembly (fan, motor, and module) as a single part, which can be extremely expensive. The good news is that aftermarket companies offer the module by itself, allowing for a much more affordable repair.
🎬 Watch: This 1-hour hack can save you hundreds on repairs.When it comes to aftermarket electronics for a European car, quality matters. While there are many cheap, unbranded modules available online, they often have poor reviews and may fail quickly. It is generally better to choose a reputable brand known for quality components.
- Gates: Gates is a well-known aftermarket manufacturer. Their modules are designed to be a direct, plug-and-play replacement for the original. They often incorporate improvements to address the original part's common failure points, offering a reliable and cost-effective alternative to the dealer's full assembly.
What to Expect for Costs
Replacing the fan module can save you hundreds compared to buying the full fan assembly from a dealer.
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM (Full Assembly) | $1000+ | Typically only sold as a complete fan assembly. |
| New Aftermarket (Module Only) | $412.13 | Cost-effective option from a quality brand like Gates. |
| Shop Labor | $110 - $162 | Estimated 1-1.5 hours for installation. |
Frequently Asked Questions
Can I replace the fan module myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical skill. The module is located on the fan shroud. Access can be tight, but it does not typically require draining the cooling system. You will need to disconnect the battery and remove some components like the air filter housing to gain access. Some owners have found creative ways to remove the fan assembly for easier access.

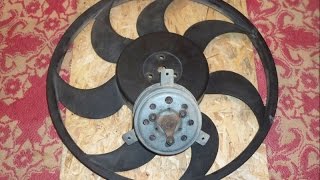

🎬 See how to replace fan brushes and fix the assembly.Why is my fan always running, even with the car off?
This is a classic symptom of a failed fan control module. The internal electronics fail in a way that provides constant power to the fan, which will drain your battery. You should not drive the vehicle like this, as the battery will likely die, leaving you stranded.
My A/C blows warm at stoplights. Could this be the fan module?
Yes. The cooling fan is also responsible for pulling air across the A/C condenser. If the fan isn't running when it should be (like when you're stopped), the A/C system can't get rid of heat and will stop blowing cold air.
What is a P0480 code?
The diagnostic trouble code (DTC) P0480 stands for "Fan 1 Control Circuit Malfunction." This code is triggered when the car's main computer (PCM) detects a problem in the electrical circuit that controls the cooling fan, pointing directly to a potential failure in the wiring, relay, or the fan control module itself.
🎬 Watch: Understanding P0480 code causes and how to fix them.Helpful Videos
Technical Specifications
OEM Part Numbers: 31368867 31686808 9454160
The Engine Cooling Fan Module is an electronic controller, typically mounted directly to the radiator fan shroud. It uses pulse-width modulation (PWM) to vary the speed of the electric cooling fan based on inputs from the engine control module (ECM) and A/C system. It connects via electrical harnesses to the main power, the ECM, and the fan motor(s).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
