Cadillac Escalade 1999-2007 Disc Brake Hardware: A Mechanic's Guide
Don't let worn-out clips and pins ruin your brake job; here's what you need to know for your Escalade.
- Always replace the disc brake hardware kit when replacing brake pads to prevent noise and uneven wear.
- For the 1999-2007 Escalade, sticking caliper slide pins are a common issue; new hardware with lubricated pins is the best prevention.
- You must verify your exact model year (1999-00, 2002-06, or 2007) as brake components are not interchangeable across generations.
- Investing in a quality aftermarket kit from brands like Centric or Raybestos is a small price to pay to protect your entire brake system.
Is it Time to Replace Your Escalade's Brake Hardware?
On the 1999-2007 Cadillac Escalade, the brake system works hard to stop a very heavy vehicle. The small parts in the disc brake hardware kit are under constant stress and are exposed to heat, water, and road salt. Over time, the metal clips lose their tension, rubber boots for the caliper slide pins tear, and everything gets caked with brake dust and rust. This is a common cause of brake problems that are often misdiagnosed.
Symptoms of Worn Brake Hardware
- Rattling or Clunking Noises: If you hear a rattle from the wheels that goes away when you apply the brakes, it's a classic sign of weak or missing anti-rattle clips.
- Squealing or Grinding: While often a sign of worn pads, bad hardware can cause pads to sit at an angle, leading to constant noise.
- Uneven Brake Pad Wear: If you find one pad is worn down much more than another, it's almost always caused by a sticking caliper slide pin. These pins are part of the hardware kit.
- Vehicle Pulling to One Side: A caliper that can't slide freely due to a rusted pin will cause the vehicle to pull when you brake.
- Brake Drag and Overheating: A sticking caliper can cause the brakes to remain partially applied, generating extreme heat and a burning smell.
A Critical Note on Escalade Generations
The 1999-2007 model years cover two completely different Escalade platforms. Brake parts are NOT interchangeable. Ordering the wrong kit is the most common mistake.
- 1999-2000: First generation (GMT400 platform).
- 2002-2006: Second generation (GMT800 platform). There was no 2001 Escalade.
- 2007: This year is tricky. It could be a late second-gen model or the new third-gen (GMT900). You MUST verify which one you own before ordering.
Choosing the Right Aftermarket Hardware Kit
When you buy aftermarket brake pads, they sometimes come with new hardware. However, these included kits can be of lower quality. For a vehicle as heavy as the Escalade, buying a separate, quality hardware kit is a smart investment. It ensures your entire brake job lasts as long as it should.
| Brand Tier | Brands | Notes for Escalade Owners |
|---|---|---|
| Quality Aftermarket | Carlson, Centric, Raybestos, Dynamic Friction | These brands offer reliable, OE-style hardware kits. Many professional mechanics use Centric and Raybestos. They provide the correct tension and fit to prevent noise and ensure proper caliper movement. Kits with coated or stainless steel components offer better corrosion resistance, which is a major plus. |
| Value / Economy | Dorman, Store Brands | Dorman provides a wide range of hardware and is a common choice. While often perfectly functional, some economy kits may use thinner gauge metal or less durable rubber boots. For the demanding job of stopping an Escalade, sticking to the quality tier is recommended for longevity. |
Pro Tip: Always Use New Hardware
Never reuse your old brake hardware. The clips are heat-cycled and lose their spring tension, and the old rubber boots can have microscopic tears that will let in water and cause the caliper pins to seize. For a cost of $10-$40, a new hardware kit is the cheapest insurance for your expensive brake pads and rotors.
Frequently Asked Questions
Do I really need to replace the hardware with every brake job?
Yes. Absolutely. The anti-rattle clips are single-use parts designed to hold tension. Once removed, they will not fit as tightly. The caliper slide pin boots also degrade. Skipping this step is the number one reason for premature brake pad wear and noise complaints after a brake job.
What is the most important part of the hardware kit for my Escalade?
For the 1999-2007 Escalade and related GM trucks, the caliper guide pins and their rubber boots are the most critical components. These vehicles are known for having calipers stick due to corrosion on the pins. A quality hardware kit with new pins (or boots for cleaning your existing pins) is essential for preventing this common and costly problem.
Is there a difference between front and rear hardware kits?

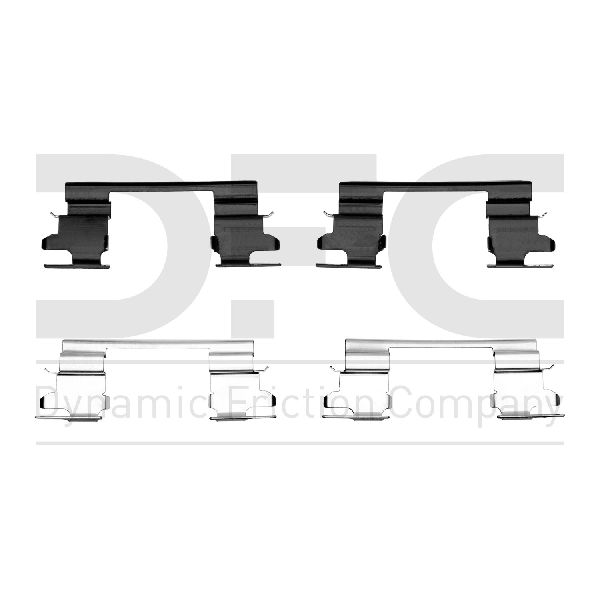

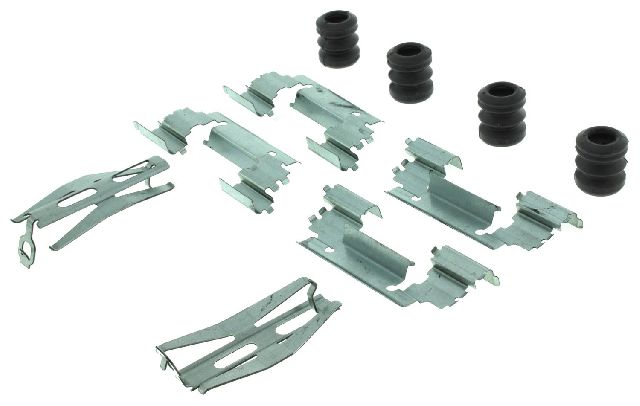

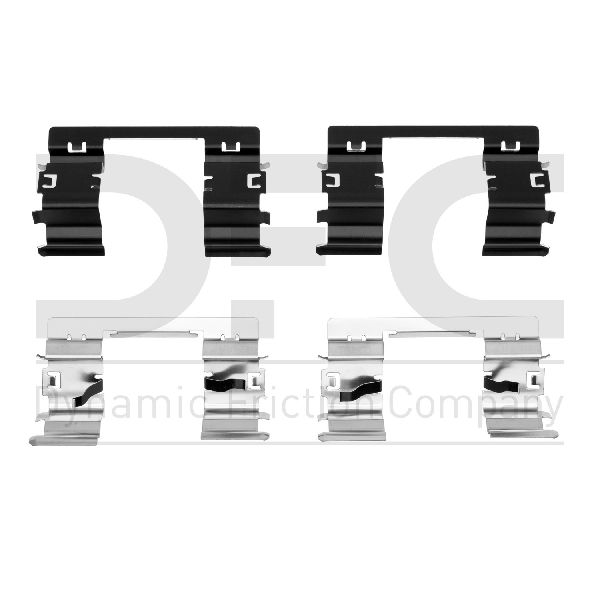

Yes, they are completely different and sold separately. The front brakes on your Escalade do most of the work and have larger components. The rear hardware is specific to the smaller rear calipers. Always verify you are buying for the correct axle.
What happens if I don't use the anti-rattle clips?
Your brake pads will be loose in the caliper bracket. This will cause a metallic rattling or clicking sound, especially when driving over bumps. More importantly, it can cause the pads to wear unevenly and can lead to vibration during braking.
Technical Specifications

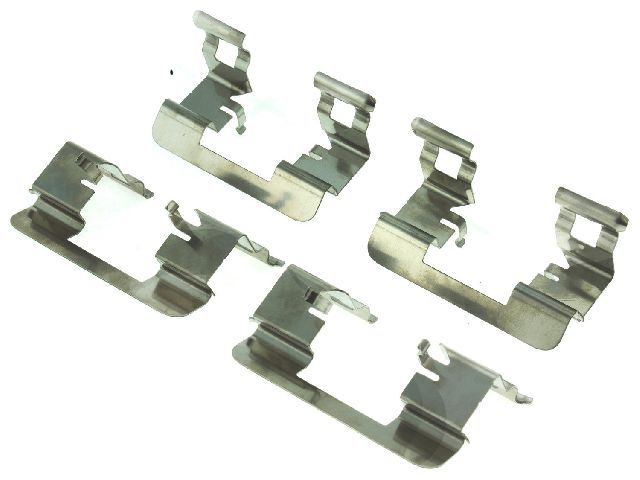

Kit typically includes anti-rattle clips, caliper guide pin boots, and springs. Some kits may include new guide pins. Materials vary from zinc-plated steel to stainless steel for higher quality.
