Guide to the 1999-2007 Cadillac Escalade HVAC Blower Motor Resistor
If your Escalade's climate fan only works on high or not at all, this guide is for you.
- Verify if your Escalade has a simple resistor (manual AC) or an electronic module (automatic AC) before buying.
- The most common symptom of failure is the fan only working on the 'High' setting.
- Always inspect the wiring connector for melting; if it's damaged, it must be replaced to prevent repeat failure.
- Consider replacing the blower motor at the same time, as a failing motor is the primary cause of resistor burnout.
Is Your Escalade's Fan Acting Up?
A failing blower motor resistor is a very common issue in the 1999-2007 Cadillac Escalade. The symptoms are usually easy to spot and point directly to this part. Understanding these signs can help you confirm the problem before you buy a replacement.
Common Failure Symptoms
- Fan Only Works on High: This is the most classic sign of a bad resistor. The highest fan setting is wired to bypass the resistor and send full power directly to the blower motor. If low and medium speeds don't work but 'high' does, the resistor has almost certainly failed. 🎬 Watch: Why your fan only works on high and how to fix it.
- No Fan at Any Speed: A complete failure of the resistor or module can stop the fan from working entirely. This can also be caused by a dead blower motor or a blown fuse, so a little more diagnosis may be needed.
- Erratic Fan Speed: The fan speed might change on its own, speeding up or slowing down without you touching the controls. This points to a failing electronic module.
- Burning Plastic Smell: A burning odor coming from your vents is a serious warning sign. It often means the resistor, module, or its wiring connector is overheating and melting. You should stop using the fan and inspect the parts immediately to avoid a fire risk.
Important: Check the Climate Control Type
A common mistake is ordering the wrong part. Escalades with manual climate controls use a traditional, coil-style resistor. However, most Escalades in this generation have automatic climate control and use a solid-state electronic 'Blower Motor Control Module'. A forum user with a 2005 Escalade noted they couldn't find a matching part until they realized their auto-climate system required the module, not the common resistor. Always visually inspect your original part before ordering to ensure you get the correct one.
Choosing the Right Aftermarket Resistor
Since the original GM part can be expensive, many owners choose an aftermarket replacement. Quality can vary, so it's important to know the brands.
| Brand Tier | Brands | General Assessment |
|---|---|---|
| Premium Aftermarket / OEM Supplier | ACDelco | ACDelco is the original equipment manufacturer for General Motors. Choosing ACDelco ensures a direct fit and performance equivalent to the factory part. While some owners have reported premature failures even with this brand, it is generally considered the most reliable option. |
| Quality Aftermarket | Dorman, Four Seasons, Standard Ignition (SMP) | These brands offer a good balance of price and quality. Dorman is well-known for engineering aftermarket solutions and often includes a new wiring harness, which is critical if the old one is melted. Standard Motor Products and Four Seasons are also reputable names in the industry. |
| Economy Brands | URO Parts, True Tech, Global Parts | These brands provide a budget-friendly option. While they can get your fan working again, their long-term durability may not match that of the premium brands. They are a viable choice if cost is the primary concern. |
Pro Tip: Replace the Blower Motor and Wiring Harness
The number one reason a new blower motor resistor fails prematurely is a worn-out blower motor. An old motor draws too much electrical current, which overheats and burns out the new resistor. If your Escalade has high mileage or the blower motor was noisy before it failed, it is highly recommended to replace the blower motor at the same time as the resistor. Always inspect the wiring connector. If you see any signs of melting, browning, or corrosion, you must replace the connector (pigtail) to prevent repeat failures.
🎬 See how to replace the blower motor, resistor, and plug.Frequently Asked Questions (FAQ)
Is this a difficult part to replace myself?
No, this is a very DIY-friendly job. The resistor or module is located under the passenger-side dashboard, usually attached to the HVAC housing near the blower motor. Replacement typically involves removing a lower cover panel, unplugging two electrical connectors, and removing two screws. The entire job can usually be done in under 30 minutes with basic hand tools.
🎬 Watch this step-by-step Escalade blower motor and resistor replacement guide.Why did my new resistor burn out after only a few months?
This is almost always caused by an old blower motor drawing too many amps. The resistor's job is to handle a specific electrical load. A failing motor exceeds that load, causing the resistor to overheat and fail quickly. Always inspect the blower motor and replace it if it's the original, high-mileage unit.
Do I need the front or rear resistor?
Many Escalade ESV and EXT models have a separate, auxiliary HVAC system for the rear passengers. This system has its own blower motor and resistor. The symptoms of failure are the same, but they will only affect the rear vents. Make sure you are ordering the correct part for the front or rear system as needed.
Are there any recalls for this part on my Escalade?
A search of the NHTSA database did not show any safety recalls specifically for the HVAC blower motor resistor on 1999-2007 Cadillac Escalade models. Any failures are considered general maintenance or repair items.

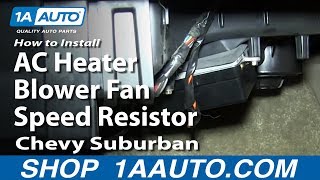

Helpful Videos
Technical Specifications
OEM Part Numbers: 89019351 15-80567 52495874 93803635 89018964 15-81638
Varies between a coil-based resistor for manual climate control and a solid-state electronic module for automatic climate control. Typically has a 2-screw mounting design and connects via one or two electrical plugs.
