A Mechanic's Guide to 1999-2008 Cadillac Escalade Engine Head Bolts
Replacing your Escalade's head gasket? Don't reuse the bolts—here's how to choose the right new set.
- Head bolts on the 1999-2008 Escalade are Torque-to-Yield (TTY) and MUST be replaced every time the cylinder heads are removed.
- Symptoms that require new head bolts are actually symptoms of a failed head gasket, such as overheating, white smoke, and milky oil.
- A known issue with cracked "Castech" cylinder heads on 2001-2006 models can cause coolant loss and requires head replacement, which includes new bolts.
- Stick with premium aftermarket brands like Fel-Pro or Victor Reinz for this critical part to ensure a long-lasting repair.
Is It Time to Replace Your Head Bolts?
You almost never replace head bolts on their own. Head bolt replacement is a required step in a much larger job: replacing the head gaskets. If your Escalade shows signs of a blown head gasket, you will need a new set of head bolts to complete the repair correctly. The bolts themselves don't typically fail, but they are a single-use part that cannot be reused once loosened.
Symptoms of a Blown Head Gasket:
🎬 Watch: How to diagnose a blown head gasket on your truck- Engine Overheating: The temperature gauge climbs into the red, especially when towing or climbing hills. This can happen if coolant leaks into a cylinder.
- White Exhaust Smoke: A major sign is constant, thick white smoke coming from the tailpipe, which often has a sweet smell. This is coolant burning in the engine.
- Milky Engine Oil: If you check your dipstick and the oil looks like a coffee-with-too-much-creamer, coolant is mixing with your oil. This is a critical symptom that can lead to total engine failure.
- Coolant Loss with No Visible Leak: You find yourself topping off the coolant reservoir frequently, but there are no puddles under the truck. The coolant may be leaking internally.
- Bubbling in Coolant Reservoir: With the engine running, you may see bubbles in the coolant overflow tank. This is exhaust gas being forced into the cooling system.
A Known Issue: Castech Cylinder Heads
Some 2001-2006 Escalades with 5.3L and 6.0L engines were built with cylinder heads from a manufacturer called "Castech." A small percentage of these heads were prone to developing porosity cracks, leading to a slow, internal coolant leak that mimics a head gasket failure. GM issued a Technical Service Bulletin (TSB 06-06-01-019C) about this issue. If you have unexplained coolant loss, it's worth investigating if you have Castech heads, which can be identified by a logo under the valve covers. 🎬 See how to identify and inspect cracked Castech cylinder heads The repair for a cracked Castech head is to replace the cylinder head, which also requires a new set of head bolts.
Choosing the Right Aftermarket Head Bolts
For a critical component like head bolts, quality is not something to compromise on. Since they are essential for a very labor-intensive job, saving a few dollars on a lesser-known brand is not worth the risk of having to do the job all over again. Fortunately, top-tier aftermarket brands offer OEM-level quality and reliability.
| Brand Tier | Brands | Quality & Performance Notes |
|---|---|---|
| Premium Aftermarket | Fel-Pro, Victor Reinz | Both Fel-Pro and Victor Reinz are highly respected OEM suppliers and aftermarket brands. They are trusted by professional mechanics and considered a safe, reliable choice for the Vortec engines in the Escalade. You can't go wrong with either of these brands for this repair. |
| Standard Aftermarket | Apex, other store brands | While brands like Apex may offer a lower price point, there is less consistent feedback on their long-term reliability for such a critical application. Given the difficulty of a head gasket job, it is strongly recommended to invest in a premium brand to ensure a lasting repair. |
Pro Tip: It's All About the Installation
The success of a head gasket job depends heavily on proper procedure. Always use a new set of Torque-to-Yield (TTY) bolts. The bolt holes in the engine block must be perfectly clean and dry—any debris or fluid can prevent the bolts from torquing correctly and cause the gasket to fail. Follow the specific, multi-step torque sequence and angle specifications from the service manual exactly. Using a torque-angle gauge is not optional; it's required for TTY bolts.

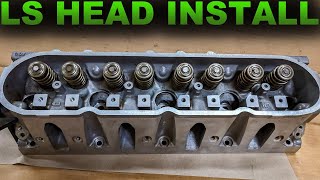

🎬 Watch this walkthrough for the correct head gasket installation procedureFrequently Asked Questions (FAQ)
Why can't I just reuse my old head bolts?
The head bolts in your Escalade are Torque-to-Yield (TTY). They are designed to be permanently stretched during the tightening process to provide a very specific clamping force. Once they have been stretched and then removed, they are compromised and will not provide the correct clamping force if reused. Reusing them can lead to a failed head gasket, stripped threads, or a broken bolt.
Are aftermarket head bolts as good as OEM for my Escalade?
Yes, premium aftermarket brands like Fel-Pro and Victor Reinz are often the same manufacturers that supply GM. Their quality and materials meet or exceed OEM specifications, making them a reliable and cost-effective alternative to dealer parts.
Do I need to put sealant on the new bolt threads?
It depends on the bolt and where it goes. Some bolts for your Escalade's engine go into "blind holes" that don't open to any fluid passages, while others go into holes that open into the coolant jackets. Bolts that go into coolant passages will often come with a sealant pre-applied to the threads. Bolts for blind holes should have a light coat of clean engine oil on the threads and under the washer to ensure a correct torque reading. Always follow the instructions included with your new bolt set.
Are there any recalls for head bolts on the 1999-2008 Escalade?
No, there are no specific recalls from the NHTSA for engine cylinder head bolts on the 1999-2008 Cadillac Escalade. Most issues requiring their replacement are related to general head gasket failure or the specific Castech head TSB. Later model Escalades have been part of recalls for other engine issues, but not for head bolts in this year range.

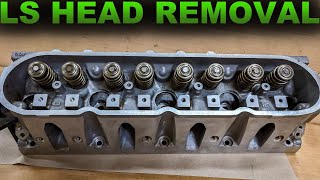

Helpful Videos
Technical Specifications
OEM Part Numbers: 12558840 12577329 19258707
Torque-to-Yield (TTY) bolt design. Requires a multi-stage torque procedure involving specific torque values followed by angle-of-rotation specifications. One-time use only.
