Guide to the 1999-2008 Cadillac Escalade Transmission Filter Kit
Keep your Escalade's automatic transmission shifting smoothly by choosing the right filter kit.
- You must identify your specific transmission (4L60E, 4L65E, or 6L80) and pan depth before buying a kit.
- Symptoms like shifting delays, whining noises, or a burnt smell point to a needed filter change.
- For best results, choose a kit from a trusted brand like ACDelco or Wix that includes a high-quality gasket.
- Regularly changing your filter and fluid is the best way to prevent major transmission problems.
Understanding Your Escalade's Transmission
The 1999-2008 Cadillac Escalade models used a few different automatic transmissions. It's crucial to know which one is in your truck before buying a filter kit. Early models (1999-2000) typically have the 4L60E transmission. From 2002 to around 2006, many Escalades were equipped with the stronger 4L65E. Later models in this range (2007-2008) introduced the 6-speed 6L80 transmission. While the filters for the 4L60E and 4L65E are often similar, they can differ based on pan depth (shallow vs. deep). The 6L80 uses a completely different filter design. Always verify your specific transmission type to ensure you buy the correct part.
Signs of a Clogged Transmission Filter
When the transmission filter gets clogged, it restricts fluid flow, leading to noticeable problems. Ignoring these signs can lead to expensive transmission damage. Look out for these common symptoms:
- Shifting Problems: You might feel hesitation, delays, or rough, hard shifts between gears. In some cases, the transmission might feel like it's slipping.
- Unusual Noises: A whining or buzzing sound from the transmission area can indicate the pump is straining to move fluid through a clogged filter. You might also hear rattling or clunking noises.
- Fluid Leaks: Increased pressure from a blockage can cause seals or gaskets to fail, leading to red or brown fluid spots under your vehicle.
- Burnt Smell: Restricted fluid flow causes the transmission to run hotter, which can burn the fluid and create a distinct burnt smell.
- Check Engine Light: A clogged filter can trigger various transmission-related trouble codes, illuminating the check engine light.
Known Issues for This Generation
Some 1999-2008 Escalades with 4L60E/4L65E transmissions may experience a harsh 1-2 shift or get stuck in third gear. These issues can be caused by worn valve bodies or faulty wiring. While not directly a filter problem, dirty fluid from a neglected filter can make these problems worse. Regular fluid and filter changes are key to a long transmission life.
Choosing the Right Aftermarket Filter Kit
For a part like a transmission filter, a quality aftermarket kit is often a smart and affordable choice. The main differences come down to the quality of the filter media and, most importantly, the pan gasket. Here’s a breakdown of available brands:
- Tier 1 (OEM Equivalent): ACDelco is GM's official parts brand and is considered the original equipment manufacturer (OEM) benchmark. Their kits provide a guaranteed fit and quality. Wix is another top-tier brand, well-respected for its quality construction and filtration. Many mechanics trust Wix as an equal, and sometimes better, alternative to OEM.
- Tier 2 (Quality Aftermarket): ATP (Automatic Transmission Parts) is a well-known aftermarket brand. They offer kits with quality filter media and are known for their “3rd Hand” pan gaskets, which have special holes to hold bolts in place during installation, making the job easier.
- Tier 3 (Value Options): Brands like Premium Guard and Pioneer Cable fall into the value category. They are often the most affordable and are widely used by independent shops. While they meet basic requirements, the gasket quality may not be as high as premium brands. For a vehicle like the Escalade, sticking with a Tier 1 or Tier 2 brand is recommended for better long-term reliability.
Pro Tip: The Gasket Matters
The most common complaint with value-tier kits is a poor-quality pan gasket that may be folded in the box or made of a material that doesn't seal well. A leaking pan gasket will undo all your hard work. Brands like ACDelco and ATP often provide higher-quality, reusable-style or form-fitting gaskets that prevent leaks.
Cost of a New Aftermarket Transmission Filter Kit
| Part Type | Price Range |
|---|---|
| New Aftermarket Kit | $26.59 - $85.07 |
| Shop Labor | $100 - $250 |
Cost estimates are for parts and labor and may vary by location and vehicle specifics.
Frequently Asked Questions
How often should I change my Escalade's transmission filter?
Most manufacturers suggest replacing the transmission filter and fluid every 30,000 to 60,000 miles. If you frequently tow or drive in heavy stop-and-go traffic, you should consider servicing it more often.
Is a deep pan filter different from a shallow pan filter?
Yes. On 4L60E/4L65E transmissions, some trucks came with a deep transmission pan and some with a shallow one. The filters are different lengths. You must check which pan your Escalade has to get the correct filter.
Can I just change the fluid without the filter?
While changing the fluid is good, it's best to change the filter at the same time. The old filter holds dirty fluid and contaminants. Skipping the filter change means you are leaving debris in the system that will immediately mix with the new, clean fluid.
Are there any recalls for the 1999-2008 Escalade transmission?
Searches did not find any specific recalls for the transmission filter or widespread transmission failure on these models. Most transmission issues are related to wear and tear or specific component failures outlined in Technical Service Bulletins (TSBs).
Technical Specifications
OEM Part Numbers: 24208576

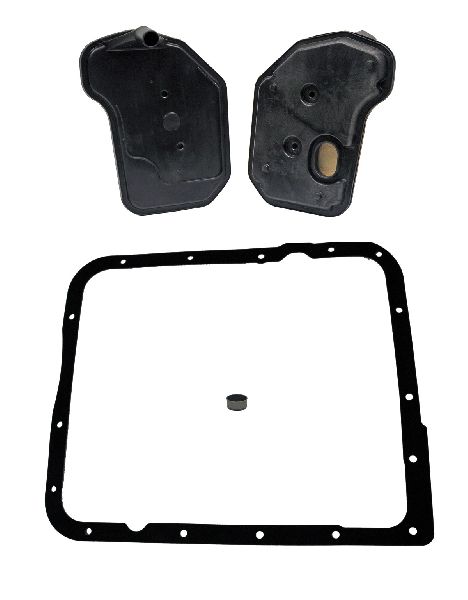

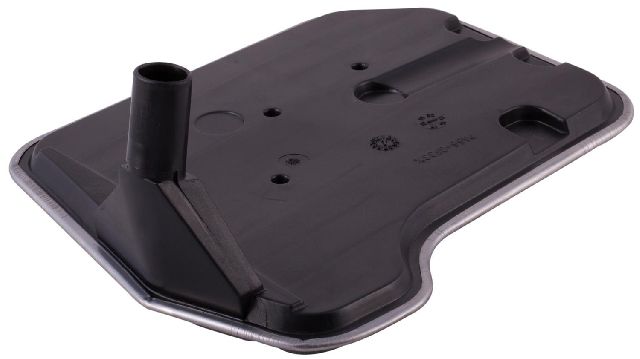

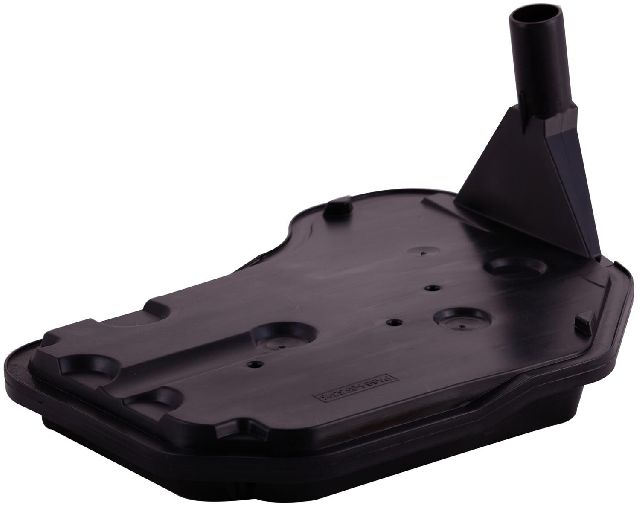

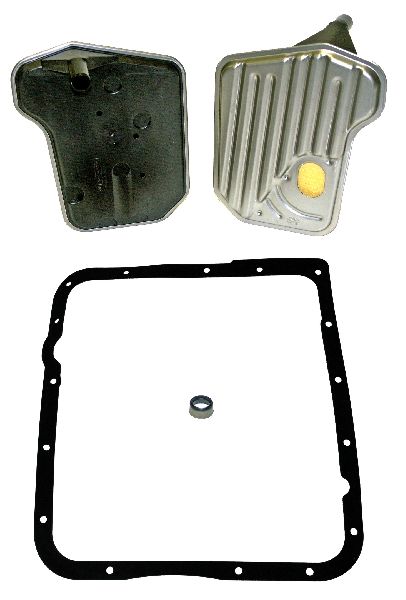

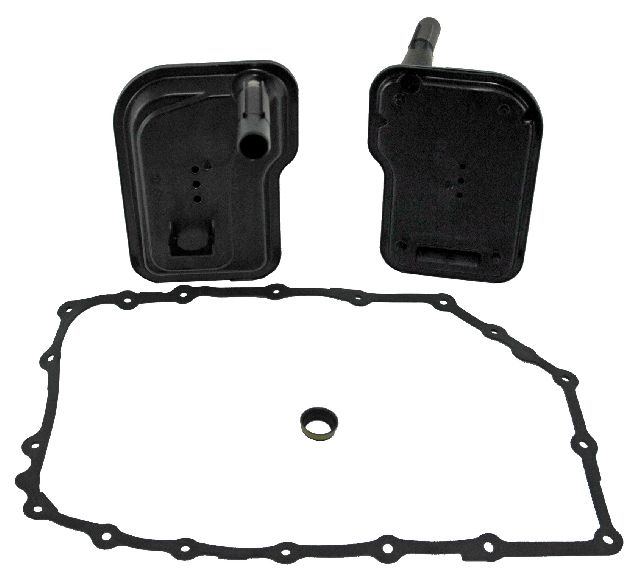

Kit typically includes a filter, pan gasket, and filter seal/o-ring. Filter media can be paper, felt, or a synthetic blend. Gasket material is either cork/rubber composite or molded rubber. Compatibility depends on the specific transmission model (4L60E, 4L65E, 6L80) and pan depth (deep or shallow).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
