Chevrolet Silverado 1500 Spark Plug Wire Set Guide (1999-2009)
Choosing the right spark plug wires for your Silverado 1500 is key to keeping your V8 or V6 engine running smoothly.
- Bad wires cause misfires, rough idle, and a check engine light (P0300-P0308 codes).
- Expect original wires to break upon removal; have a new set ready before you start the job.
- Visually check if you have 'round' or 'square' ignition coils to order the correct length wires.
- For reliability, most owners and mechanics recommend sticking with ACDelco or Delphi brand wires.
Is Your Silverado Telling You It Needs New Wires?
Spark plug wires don't last forever. The constant heat from the engine and exhaust, combined with oil and vibration, causes them to wear out. When they fail, your truck will let you know. The most common signs are a rough idle, a noticeable hesitation when you accelerate, and a general loss of power. You will almost certainly see your 'Check Engine' light come on, often with a code like P0300 for a random misfire, or a specific cylinder code like P0301, P0302, etc.
🎬 Watch: How to diagnose and fix a P0300 misfire codeA Word of Warning Before You Start

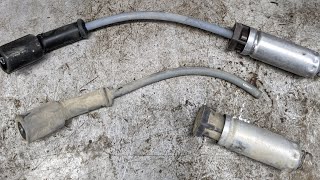

On the 1999-2009 Silverado V8 engines, the original spark plug wires are famous for breaking when you try to remove them. The boots become seized to the spark plugs over time, and the metal heat shields make it nearly impossible to get a good grip to pull them off. 🎬 See this pro tip for removing stuck wires without breaking them It is highly recommended that you have a new set of wires ready before you attempt to remove the old ones. Otherwise, you risk being stranded with a truck that won't run.
Choosing the Right Aftermarket Spark Plug Wires
When shopping for new wires, you have several good options. For these trucks, sticking close to the original equipment (OEM) design is almost always the best choice for reliability and performance in daily driving.
Tier 1: OEM & OEM-Quality Replacements
These brands are the go-to for most Silverado owners. They provide the same fit, performance, and durability as the parts your truck came with from the factory. Many mechanics and long-time owners strongly recommend using only these brands to avoid issues.
- ACDelco: This is the original GM parts brand. You cannot go wrong with ACDelco wires. They are the benchmark for quality and fit. Note that some ACDelco parts are manufactured by NGK or Denso.
- Delphi: Delphi was an original parts supplier to GM and is considered by many to be equivalent to ACDelco in quality.
- NGK: While famous for their spark plugs, NGK also makes high-quality wire sets that are a trusted choice for GM trucks.
Tier 2: Performance Wires
These brands offer wires that are often thicker (e.g., 8.5mm vs. the 7mm stock wire) and have different core materials designed to offer lower electrical resistance. They may provide a slight performance edge in highly modified engines (turbo, supercharged) but are generally considered unnecessary for a stock or lightly modified truck. Some users report they are more durable for repeated removal, while others have had issues with them coming apart.
- MSD (Superconductor): A popular performance brand with 8.5mm wires.
- Taylor Cable: Known for their thick 10.4mm wires, often used in racing applications.
Tier 3: Standard Aftermarket
These brands meet basic replacement needs and are often more budget-friendly. They are a functional choice if OEM-quality brands are not available.
- Standard Motor Products (SMP)
- Denso
- Karlyn STI, Prenco, Walker Products
Common Ordering Mistake: Check Your Coils!
GM used two different ignition coil styles on this generation of Silverado, and they require different length spark plug wires. Before ordering, look at your engine. If you have "round" coils (often made by Delphi), you need the shorter wire set (ACDelco P/N 9748GG). If you have "square" coils (often made by Mitsubishi), you need the longer wire set (ACDelco P/N 9748HH). Choosing the wrong set will mean the wires won't reach.
Spark Plug Wire Replacement Cost
Replacing spark plug wires is almost always done at the same time as replacing the spark plugs. The cost can vary depending on who does the work.
| Service | Estimated Cost |
|---|---|
| DIY (Parts Only) | $40 - $120 |
| Independent Repair Shop | $450 - $600 |
| Chevrolet Dealership | $570 - $700+ |
Costs are estimates and include both spark plugs and wires. Labor rates vary by location. 🎬 Watch: Step-by-step walkthrough for changing your own plugs and wires
Frequently Asked Questions
Do I have to replace my wires when I replace my spark plugs?
It is highly recommended. The service interval for plugs is around 100,000 miles, and the wires degrade over that same period. Given the high likelihood that the old wires will break during removal on these specific trucks, it's smart and efficient to replace them at the same time.
Are expensive performance wires worth it for my stock Silverado?
For a daily-driven truck with no major engine modifications, the answer is generally no. OEM-quality wires from ACDelco or Delphi are more than adequate and are what the ignition system was designed for. Performance wires won't provide a noticeable power gain on a stock engine.
What is dielectric grease and should I use it?
Dielectric grease is a non-conductive, silicone-based grease applied to the inside of the spark plug wire boots. It helps seal out moisture, prevent corrosion, and makes the wires much easier to remove in the future. Using it is a professional technique that is highly recommended.
What's the difference between 7mm, 8.5mm, and 10.4mm wires?
This measurement is the diameter of the wire's outer insulation. Stock wires are typically 7mm. Performance brands like MSD and Taylor use thicker insulation and different core materials to advertise lower resistance and better heat protection. For a stock engine, the benefits of thicker wires are minimal.
Helpful Videos
Technical Specifications

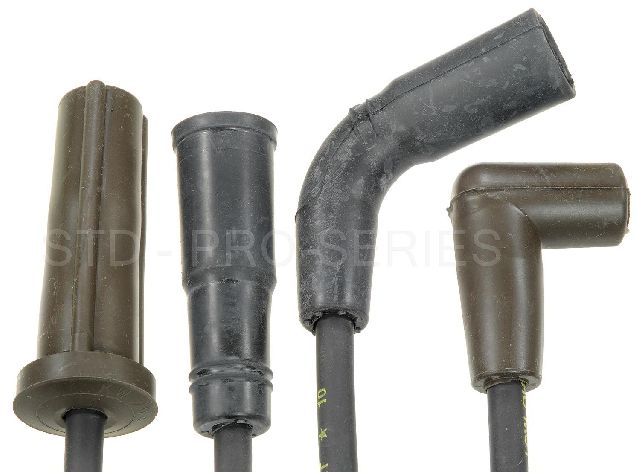

OEM Part Numbers: 9748HH 9748GG
Wire lengths differ based on ignition coil type. 'Round' coils use shorter wires (ACDelco 9748GG), while 'square' coils use longer wires (ACDelco 9748HH). OEM wires are typically 7mm in diameter with a fiberglass reinforced latex graphite core and silicone insulation.
