Ford F-350 (1999-2009) Universal Joint Replacement and Diagnosis
Address the common clunks, squeaks, and vibrations from your Super Duty's drivetrain by understanding its U-joints.
- A clunking noise when shifting or a vibration at highway speeds are the most common signs of a failing U-joint.
- Do not ignore symptoms; a complete failure can cause the driveshaft to detach, leading to a loss of control and major damage.

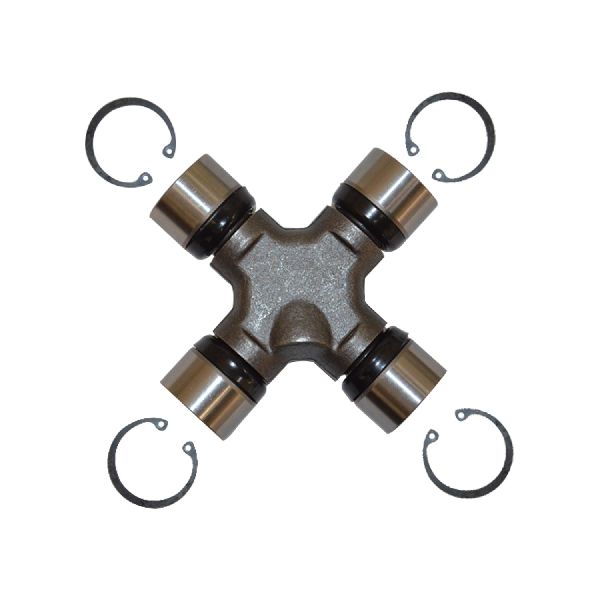

- Aftermarket U-joints are available in greasable (like GMB) and stronger, non-greasable (like Spicer) versions.
- Verify the exact size and part number for your truck's specific configuration (4x4, bed length, etc.) as they are not all the same.
Is Your F-350's U-Joint Failing? Common Symptoms
A failing U-joint gives several warning signs. Ignoring them can lead to the driveshaft disconnecting, which can cause a loss of control, severe vehicle damage, and leave you stranded. Pay attention to these symptoms:
- Clunking or Popping Noises: A loud "clunk" when you shift into drive or reverse is a classic sign of a worn U-joint with excessive play. You might also hear it when accelerating.
- Vibrations at Speed: A vibration that you can feel through the floor or seats, especially at highway speeds, often points to a failing U-joint. This happens because the worn joint throws the driveshaft out of balance.
- Squeaking or Chirping: A rhythmic squeaking that changes with your speed is a sign that the U-joint has lost its lubrication and the internal needle bearings are failing.
- Visible Rust or Looseness: If you can get under the truck and physically move the driveshaft back and forth at the joint, it's worn out and needs immediate replacement. You may also see rust dust around the U-joint seals, indicating the internal bearings are breaking down.
Safety Warning: Do Not Ignore a Failing U-Joint
A complete U-joint failure can cause the driveshaft to detach from the vehicle. At speed, a loose driveshaft can damage the exhaust, fuel tank, and transmission, or even cause you to lose control of the truck. If you suspect a bad U-joint, it's critical to get it inspected and replaced promptly.
Choosing the Right Aftermarket U-Joint for Your F-350
When replacing U-joints on your 1999-2009 F-350, you'll find two main types of aftermarket options: greasable and non-greasable. The original factory U-joints are typically non-greasable Spicer units.
- Non-Greasable (Sealed) U-Joints: These are often considered stronger because the cross (the main body of the joint) is solid steel, without the channels drilled for grease. They are filled with a high-quality grease at the factory and sealed for life. Many owners prefer these for their strength and for being maintenance-free. Spicer is a top-tier brand for this type.
- Greasable U-Joints: These have a zerk fitting that allows you to add new grease periodically. This can help flush out contaminants and extend the life of the joint if maintained properly. However, the grease channels can make the joint slightly less strong than a solid-body equivalent. Brands like Moog and GMB offer popular greasable options.
Pro Tip: For heavy towing, hauling, or aggressive off-road use, many F-350 owners prefer the superior strength of a non-greasable Spicer U-joint. For general use, a quality greasable joint from a reputable brand like GMB or Moog is a perfectly reliable and cost-effective choice, provided you perform regular maintenance.
| Item | Estimated Cost |
|---|---|
| New Aftermarket U-Joint (Single) | $20.60 - $42.32 |
| New OEM U-Joint (Single) | $54 - $75 |
| Shop Labor (per joint) | $155 - $227 |
| Total Professional Replacement (per joint) | $209 - $281 |
Frequently Asked Questions (FAQ)
Are all the U-joints on my 1999-2009 F-350 the same size?
No, not always. The U-joint sizes can vary depending on your truck's configuration (4x4 vs. 4x2, single rear wheel vs. dual, cab/bed length) and the position on the vehicle (front axle shafts vs. rear driveshaft). It is critical to verify the exact part numbers for your specific vehicle before ordering. Some trucks use different sizes for the joint at the differential versus the one at the transmission or transfer case.
Can I replace just one bad U-joint?
Yes, you can replace only the failed joint. However, it's often good practice to replace them in pairs on the same driveshaft. If one has failed due to age and mileage, the others are likely not far behind. For 4x4 models, replacing both front axle shaft U-joints at the same time is also recommended.
Do I need to balance my driveshaft after replacing the U-joints?
Typically, if you are only replacing the U-joints and you mark the driveshaft's orientation before removal and reinstall it in the exact same position, you do not need to rebalance it. However, if you still have a vibration after the replacement, the driveshaft may have been out of balance previously or was not reinstalled correctly, and a visit to a driveshaft shop for balancing may be necessary.
Were there any recalls for U-joints on the 1999-2009 F-350?
Searches of NHTSA data and other sources did not show any specific U-joint or driveshaft recalls for the 1999-2009 Ford F-350 model years. Recalls found were for much newer model years and different components.
Helpful Videos
Technical Specifications
U-joints for the 1999-2009 Ford F-350 can vary. Common series include 1350 and 1410, but sizes must be verified for the specific application (front axle, rear driveshaft, etc.). The front axle shafts on 4x4 models use different U-joints than the rear driveshaft.
