Isuzu NPR Engine Oil Pressure Switch Guide: 1999-2009
Understanding the signs of a failing oil pressure switch is key to protecting your NPR's engine from serious damage.
- Never ignore an oil pressure warning light; always stop and check your oil level immediately.
- Symptoms of a bad switch include a flickering light, an erratic gauge, or oil leaking from the sensor itself.
- Replacement is simple and can be done by a DIYer with basic tools in under 30 minutes.
- Quality aftermarket brands like Standard Ignition and Walker Products offer a reliable and cost-effective alternative to OEM parts.
Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can either fail to warn you of a real problem or create a false alarm. It's important to know the difference. Never ignore an oil pressure warning light; always check your oil level immediately before assuming the switch is bad.
- Oil Pressure Light On or Flickering: The most common symptom is the red oil pressure light on your dash coming on, staying on, or flickering, especially at idle.
- Incorrect Gauge Reading: If your NPR has an oil pressure gauge, a bad sensor can cause it to read zero, max out, or jump around erratically.
- Check Engine Light: A faulty switch can trigger the Check Engine Light and store diagnostic trouble codes like P0520, P0521, P0522, P0523, or P0524.
- Visible Oil Leak: The switch itself can fail and leak oil. You may notice oil residue on the sensor or drips underneath the engine in that area.
Choosing the Right Aftermarket Part
For a critical but simple part like an oil pressure switch, a quality aftermarket brand is a perfectly reliable and cost-effective choice compared to a more expensive OEM part. The key is to choose a brand with a reputation for quality control.
Brand Quality Tiers:
- Standard Ignition / Standard Wires: Often considered a top-tier aftermarket brand. Standard manufactures many of its parts in North America in IATF 16949 certified facilities, emphasizing OE-level performance and durability. They are a trusted choice for professional mechanics.

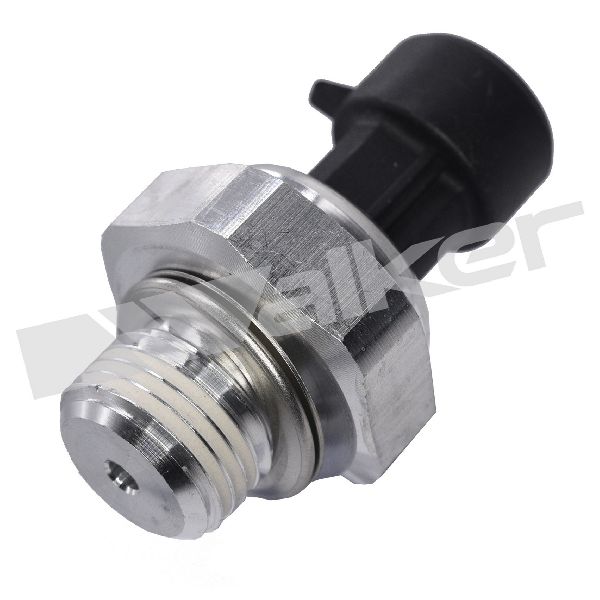

- Walker Products: Another reputable brand that engineers its products to meet or exceed OEM specifications. They focus on durable construction and providing accurate, reliable sensor readings.
- Rostra Powertrain: Known primarily for transmission components, Rostra also produces various sensors and switches. They are an IATF-16949 & ISO-9001 certified manufacturer, indicating a commitment to quality processes. While less known for engine sensors, their certifications suggest a reliable product.
Pro Tip: When replacing the switch, it's a good time to perform an oil and filter change if it's near its service interval. This ensures the entire lubrication system is fresh.
🎬 Watch: How to replace the sensor and the internal screen.Typical Replacement Costs
The cost to replace an oil pressure switch on an Isuzu NPR is generally low. The part itself is inexpensive, and labor is minimal for an experienced mechanic.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Switch | $7.85 - $71.37 |
| New OEM Switch | $40 - $90 |
| Shop Labor | $50 - $120 |
| Total Estimated Cost (Aftermarket) | $58 - $192 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on a 1999-2009 Isuzu NPR?
The oil pressure switch is typically screwed into the engine block, often located near the oil filter housing for easy access. Its exact position can vary slightly depending on whether you have the 4.8L, 5.2L diesel engine or the 6.0L gas engine.
🎬 Watch: Step-by-step sensor replacement for the 6.0L gas engine.Can I replace the oil pressure switch myself?
Yes, this is a DIY-friendly job for most people with basic tools. It involves locating the switch, unplugging the electrical connector, and using a wrench or a special oil pressure switch socket 🎬 See this pro tip for using a specialized sensor tool. to unscrew the old unit and install the new one. Be prepared for a small amount of oil to drip out during the swap.
What happens if I ignore a bad oil pressure switch?
Ignoring it is a major risk. If the switch has failed and your oil pressure light is always on, you won't know if a real, catastrophic drop in oil pressure occurs. If the switch fails to detect a low-pressure event, your engine can be destroyed from lack of lubrication in minutes.
Was there a recall for the Isuzu NPR oil pressure switch?
There have been no specific recalls for the oil pressure switch on the 1999-2009 Isuzu NPR. However, there was a significant recall (NHTSA 22V-434) for certain 2022 models where the sensor was wired incorrectly from the factory, preventing it from warning the driver of low oil pressure. This highlights how critical this sensor's proper function is to engine safety.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8-97072-947-0 8970729470
The oil pressure switch is a single-wire or multi-wire sensor that threads into the engine block. It is calibrated to activate a warning light or send a pressure reading when oil pressure falls outside the normal operating range for the specific engine (e.g., 4.8L Diesel, 5.2L Diesel, 6.0L Gas).
