Ford Explorer Windshield Washer Pump Guide for 1999-2010 Models
Everything you need to know about diagnosing and replacing the windshield washer pump on your 1999-2010 Ford Explorer.
- The washer pump is a very easy and quick part to replace yourself, often in under 30 minutes.
- Most 1999-2010 Explorers use a single, dual-outlet pump for both front and rear washers.
- Before buying a new pump, confirm the fluid reservoir is full and check the fuse.
- A quality aftermarket pump from a brand like Trico is a cost-effective and reliable alternative to an expensive OEM part.
Is Your Explorer's Windshield Washer Pump Failing?
A non-working windshield washer might seem like a small problem, but it can become a serious safety issue when dirt, salt, or insects obstruct your view. For 1999-2010 Ford Explorer owners, a failed washer pump is a common and thankfully, straightforward fix. Before you buy a new part, here’s how to be sure the pump is the problem.
Common Symptoms of a Bad Washer Pump
- No Spray from Nozzles: You press the button, the wipers move, but no fluid comes out. First, check if your reservoir is empty. If it's full, the pump is the next likely culprit.
- Motor is Silent: Activate the washer and listen carefully. You should hear a distinct humming or whirring sound from the front passenger side of the vehicle. If you hear nothing, the pump's motor has likely failed or isn't receiving power.
- Weak or Inconsistent Spray: If the fluid just dribbles out, the pump's internal impeller might be worn out and unable to build enough pressure. This can also be caused by clogged nozzles, so it's a good idea to clean them with a small pin first. 🎬 Watch: How to replace clogged or broken windshield wiper nozzles
- Pump Runs, But No Fluid Sprays: If you can hear the pump motor running but nothing comes out, the pump itself might be internally broken, or the lines could be clogged or disconnected.
Pro Tip: Before replacing the pump, check the fuse. On many Explorer models, the fuse and relay for the washer system are located in a small power distribution box under the hood, sometimes hidden under the air intake box. Also, if your wipers don't move at all when you try to wash the windshield, the problem may be the multi-function switch 🎬 Watch: Troubleshooting tips if your washer fluid isn't spraying on the steering column, not the pump.
Choosing a New Aftermarket Washer Pump
When replacing the washer pump on an older vehicle like the 1999-2010 Explorer, you don't need to spend a fortune at the dealership. A quality aftermarket pump is a reliable and cost-effective solution.
- OEM Parts: An original equipment (OEM) pump from Ford will be a perfect match, but it's the most expensive option.
- Aftermarket Parts (Trico): Brands like Trico specialize in wiper and washer system components. Their pumps are designed as direct-fit replacements, meaning they install easily without any modifications. For a part like this, a reputable aftermarket brand offers performance and reliability that is very close to the original for a fraction of the price.
A Note on Vehicle Generations: This guide covers the end of the second generation (1999-2001), the entire third generation (2002-2005), and the fourth generation (2006-2010) Explorer. While there are major differences in other parts of these trucks, the windshield washer pump is a relatively simple and consistent component across these years, typically located in the reservoir at the front passenger side.
Cost of Replacing a Ford Explorer Washer Pump
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Pump (DIY) | $25 - $45 |
| New OEM Pump (DIY) | $65 - $85 |
| Shop Labor | $99 - $146 |
| Professional Replacement (Aftermarket Part) | $124 - $191 |
| Professional Replacement (OEM Part) | $164 - $231 |
Frequently Asked Questions
Is replacing the washer pump a difficult DIY job?
No, this is one of the easiest repairs you can do. For most 1999-2010 Explorers, the pump is accessible by turning the front passenger wheel and reaching behind the fender liner. It simply pushes into a rubber grommet on the reservoir. The entire job can often be done in under 30 minutes with no special tools.

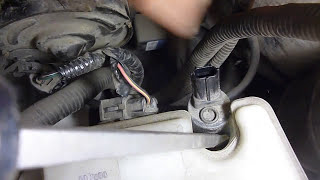

🎬 See this step-by-step walkthrough for replacing the pumpDoes one pump operate both the front and rear washers?
Yes, on models with a rear washer, a single pump with two outlets is typically used. One hose runs to the front nozzles and the other runs to the rear liftgate. If only one of your washers is working, the issue could be a clog in that specific line rather than the pump itself.
I replaced the pump and it still doesn't work. What now?
If a new pump doesn't solve the problem, re-check the fuse. If the fuse is good, the issue is likely electrical. Use a multimeter to test for 12-volt power at the pump's electrical connector when the switch is activated. If there's no power, the problem could be the relay or the multi-function switch.
Were there any recalls for the washer pump on these Explorers?
No, searches of the NHTSA database show no recalls specifically for windshield washer pump failure on the 1999-2010 Ford Explorer. A recall existed for 2020 models due to contaminated fluid, but it does not apply to this generation.
Helpful Videos
Technical Specifications

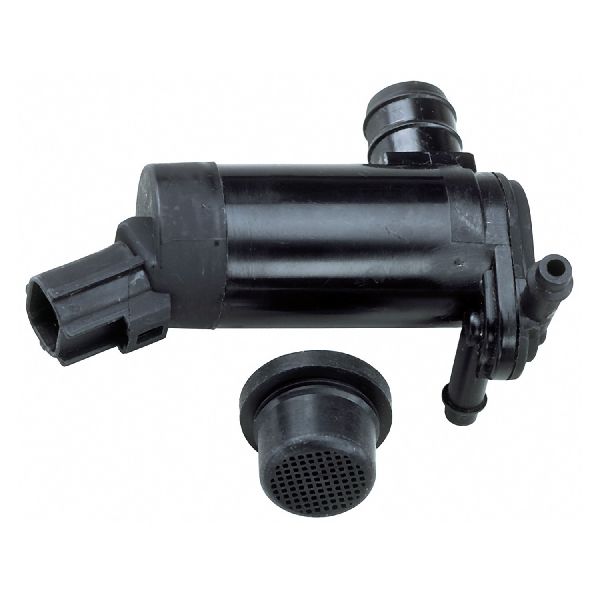

OEM Part Numbers: 7L2Z-17664-A 6F9Z-17664-A F75Z-17664-BA
Dual outlet pump for front and rear washer systems. Mounts directly to the washer fluid reservoir with a push-in grommet seal.
