A Guide to Disc Brake Hardware for the 1999-2011 Saab 9-3
Don't let worn-out clips and pins ruin your brake job; new hardware is essential for quiet, even braking.
- You must identify your Saab 9-3 generation: 1999-2002 (Gen 1) or 2003-2011 (Gen 2), as parts are not interchangeable.
- For Gen 2 cars, verify your specific rotor size (e.g., 285mm, 302mm, 314mm) before ordering to ensure correct hardware fitment.
- Always replace brake hardware when installing new pads and rotors to prevent noise and uneven wear.
- Sticking rear calipers are a common issue; new hardware and lubricated slide pins are critical for proper function.
Understanding Your Saab 9-3's Brake Hardware
The 1999-2011 Saab 9-3 spans two very different generations, and their brake systems are not the same. It is critical to know which car you have before buying parts.
- First Generation (1999-2002, and 2003 Convertible): These models are based on the older Saab 900 platform. Their brake hardware is specific to this generation and not interchangeable with newer models. The hardware often includes pins and simple anti-rattle clips. 🎬 Watch this guide for first-generation front brake and rotor replacement.
- Second Generation (2003-2011): These cars are based on a General Motors platform and have several different brake options depending on the trim level (Linear, Arc, Vector, Aero, Turbo X). Aero and Turbo X models, in particular, often have larger brakes that require specific hardware. The most common mistake is ordering parts without first confirming your car's specific brake size (e.g., 285mm, 302mm, 314mm, 345mm front rotors). 🎬 See a step-by-step walkthrough for second-generation front brake service.
Pro Tip: For second-generation 9-3s, check the sticker in your driver's side door jamb for a brake code or measure your rotor's diameter to ensure you order the correct hardware kit. The front and rear hardware kits are different and sold separately.
Symptoms of Worn Brake Hardware
Old, rusty, or missing brake hardware can cause problems that are often mistaken for bad pads or rotors. Replacing the hardware is a simple step that can solve many common brake issues.
- Brake Noise: Rattling, clicking, or squealing noises, especially over bumps or during light braking, 🎬 Watch this video to identify common causes of brake noise. often point to weak or missing anti-rattle clips.
- Uneven Pad Wear: If the inner pad wears out faster than the outer one, it's a classic sign of sticking caliper slide pins. The hardware kit often includes new boots to protect these pins.
- Sticking Brakes: Corroded hardware can prevent brake pads from retracting properly, causing them to drag on the rotor. This leads to excess heat, poor fuel economy, and premature wear.
OEM vs. Aftermarket Hardware Quality
For a part like a brake hardware kit, the difference between OEM (Original Equipment Manufacturer) and a quality aftermarket brand is minimal. Saab's original parts were often made by European brands like Textar or ATE, which are now available in the aftermarket. The key is to avoid the cheapest, no-name options and stick with reputable brands that use quality materials like stainless steel, which resists corrosion better than the plated steel used in lower-end kits. For the Saab 9-3, a good aftermarket kit will perform just as well as the original.
Choosing the Right Aftermarket Brand
With 24 different options available, it's helpful to group them by quality and reputation. All the brands listed offer kits that will fit and function correctly, but there are differences in materials and manufacturing consistency.
| Tier | Brands | Assessment |
|---|---|---|
| Standard Quality | Dorman, Dynamic Friction | These brands provide functional, budget-friendly hardware that meets basic requirements. They are a suitable choice for daily driving and are widely available. |
| Good Quality | Carlson, Centric, Raybestos | These are well-regarded mainstream brands. Centric, in particular, is often praised for good fit and finish. Raybestos and Carlson are also dependable choices that have been used by shops for years. Many of these companies are now related. |
| Premium Quality | Beck Arnley | Beck Arnley focuses on sourcing parts that match the form, fit, and function of original equipment, often from the same manufacturers that supplied Saab. This is a great choice if you want to ensure OEM-level quality. |
Known Issues, Recalls & TSBs
There are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA for the disc brake hardware itself on the 1999-2011 Saab 9-3. However, the Saab 9-3 platform is known for issues with sticking rear calipers, which is often related to corroded slide pins and old hardware. A TSB was issued for some 2003 and later models regarding a sinking brake pedal when stationary, but this was described as a normal characteristic of the vacuum pump system and not a hardware fault. Any recalls found for this vehicle range relate to airbags or other components, not the brake hardware.
Frequently Asked Questions
Do I really need to replace the hardware with every brake job?
Yes. It is highly recommended. The old clips lose their tension from thousands of heat cycles, and rust can prevent them from holding the pads correctly. For a small cost, a new hardware kit ensures your new pads and rotors work properly and quietly.
What is included in a typical disc brake hardware kit?

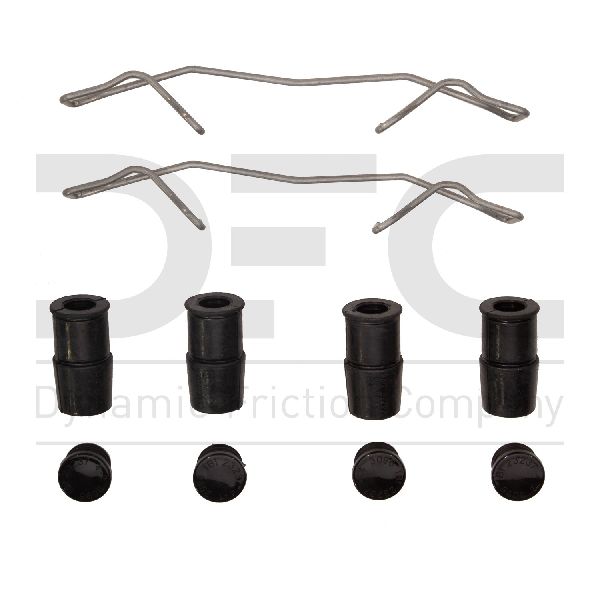

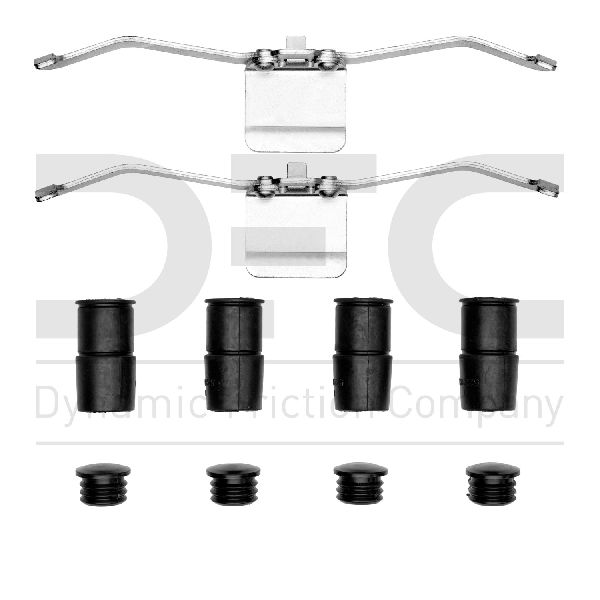

A kit usually contains anti-rattle clips (which look like small metal springs) that fit on the caliper bracket, and sometimes new caliper guide pin boots. The clips hold the pads, and the boots protect the lubricated pins that the caliper slides on.
Can I just clean and reuse my old hardware?
While you can try to clean old hardware with a wire brush, it's not a good long-term solution. Metal clips lose their spring tension over time and can't be restored. Given the low cost of a new kit, replacement is the safer and more reliable option.
My new brakes are squeaking. Is it the hardware?
It could be. Squeaking after a brake job can be caused by the pads bedding in, but it can also be due to a lack of lubrication on contact points or improperly installed or missing hardware. Ensure that a high-temperature brake lubricant was used on the back of the pads and where the clips touch the caliper bracket.
Helpful Videos
Technical Specifications
Kit typically includes anti-rattle clips for caliper brackets and may include caliper guide pin boots. Materials vary from plated steel to stainless steel.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
