Saab 9-3 Suspension Strut Bellows (1999-2011): A Replacement Guide
Protect your Saab's struts from damage by replacing torn or worn-out bellows before it leads to a more expensive repair.
- A torn strut bellow exposes the strut to dirt and moisture, leading to premature and more expensive strut failure.
- Always replace strut bellows in pairs and use the opportunity to inspect or replace the strut mounts and bearings.
- This is a difficult DIY job that requires a spring compressor, a dangerous tool if used improperly. Professional installation is recommended for safety.
- Aftermarket brands like KYB offer OEM-quality or better performance and are a reliable choice for your Saab 9-3.
Symptoms of a Failing Strut Bellows
A strut bellow doesn't have electronic sensors, so you won't see a warning light on your dash. Instead, you need to rely on a visual inspection and listen for unusual noises. A torn bellow is a common issue that is often found when investigating other suspension noises.
- Visible Damage: The most obvious sign is a visual one. Look behind your front wheels at the strut assembly. If the rubber or plastic boot is cracked, torn, or missing, it needs to be replaced.
- Clunking or Banging Noises: While often caused by other worn parts like sway bar links or control arm bushings, a clunking sound over bumps can also mean the internal bump stop has disintegrated or the strut mount has failed.
- Leaking Strut: If you see oily, damp fluid on the strut body, it means the strut's main seal has failed. A torn bellow is the most common cause of this failure, as it allowed dirt and water to wear out the seal. At this point, you will need to replace the entire strut, not just the bellow.
Don't Ignore a Torn Bellow
While you can still drive with a torn strut bellow, it's a serious warning sign. The strut is now unprotected and will wear out much faster. Replacing a simple, inexpensive bellow now can save you from a much more expensive strut replacement job down the road.
Choosing the Right Aftermarket Bellows
For the 1999-2011 Saab 9-3, you don't need to find a rare Genuine Saab part. High-quality aftermarket brands provide excellent protection and value. When replacing struts or just the bellows, it's a good time to consider other related components.
Brand Quality: KYB vs. Skyward
When shopping for aftermarket parts, you'll often see different brand tiers. For your Saab 9-3's strut bellows, here's what to consider:

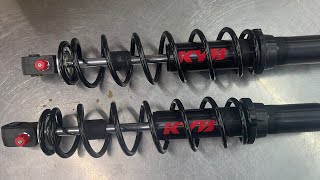

- KYB: KYB is a well-respected brand that is an Original Equipment Manufacturer (OEM) for many car brands, including Subaru and Toyota. Their aftermarket parts are known for meeting or exceeding OEM quality. Many Saab owners and mechanics trust KYB for suspension components, considering them a reliable choice that offers good performance and durability. A KYB bellow is an excellent choice for a long-lasting repair. 🎬 Learn more about KYB suspension component quality and performance.
- Skyward (and other budget brands): Skyward represents a more budget-friendly option. While it will cover the strut, the material quality and longevity may not match that of a premium brand like KYB. For a car you plan to keep and drive for many more years, investing a few extra dollars in a higher-quality bellow from a brand like KYB is a wise choice.
Pro Tip: Replace More Than Just the Bellow
The labor to replace a strut bellow is the same as replacing the entire strut assembly. Since you have to take everything apart, it's the perfect time to replace other wear items. Always replace bellows in pairs (both front wheels at the same time). Also, strongly consider replacing the strut mounts, bearings, and bump stops. These parts wear out at a similar rate and are a common source of suspension noises on the Saab 9-3.

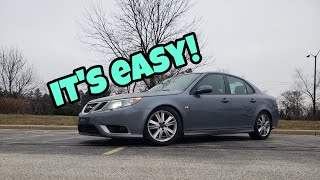

🎬 See how to properly replace and modify front suspension components.Known Issues, Recalls, and TSBs
Searches for the 1999-2011 Saab 9-3 did not find any recalls or Technical Service Bulletins (TSBs) specifically for the suspension strut bellows. However, owners of the first-generation (1999-2002) 9-3 have reported a "popping" noise from the front suspension that can be addressed by re-torquing specific suspension bolts. General suspension noises are common, often pointing to worn control arm bushings or sway bar end links.
Frequently Asked Questions
Do I need to get a wheel alignment after replacing strut bellows?
Yes. Any time the front struts are removed from the steering knuckle, a wheel alignment is necessary to ensure proper handling and prevent uneven tire wear. The bolts connecting the strut to the knuckle are what set the camber angle.
Can I replace just one strut bellow?
It is highly recommended to replace them in pairs. If the bellow on one side has failed from age and exposure, the other side is likely in similar condition and will fail soon. Replacing both at the same time saves you from doing the same job twice.
Is a spring compressor required for this job?
Yes, a spring compressor is absolutely required to safely disassemble the strut assembly to access the bellow. Compressing a coil spring stores a massive amount of energy. This step is extremely dangerous if not done correctly with the proper tool. If you are not experienced or comfortable using a spring compressor, it is best to leave this job to a professional mechanic.

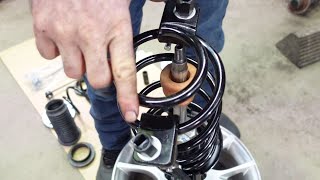

🎬 Watch a step-by-step guide on replacing Saab 9-3 front struts.What's the difference between a strut bellow and a bump stop?
The bellow is the flexible boot that covers the strut rod. The bump stop is a foam or rubber cushion, usually located inside the bellow, that prevents the strut from bottoming out. Many aftermarket bellow kits, like those from KYB, include a new bump stop.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90538936 13257361
This part is specific to the front suspension. The rear suspension uses separate shocks and springs, which have their own dust covers.
