Cadillac Escalade Brake Light Switch Guide (1999-2012)
Fix common brake light, cruise control, and shifting problems on your Escalade.
- A bad brake light switch can cause more than just lighting issues; it commonly affects cruise control and the ability to shift from Park.
- Symptoms can be confusing, but this is an inexpensive and easy part to replace for a DIYer.
- A faulty switch is a common cause for cruise control failure on these Escalades, even if the brake lights still work.
- For best results, choose a premium aftermarket brand like Standard Ignition or an OEM ACDelco part to ensure compatibility with the truck's electronics.
Symptoms of a Failing Brake Light Switch
A bad brake light switch can cause confusing problems. You might think you have a major transmission or electrical issue, but it could just be this simple, inexpensive part. Watch for these signs:
- Brake Lights Don't Work or Stay On: The most obvious sign is your brake lights not lighting up when you press the pedal, or they are stuck on all the time, even when the truck is off.
- Cruise Control Won't Set: If the switch is faulty, it may constantly send a signal that the brakes are being applied, which will prevent the cruise control from engaging. This is a very common symptom in Escalades.

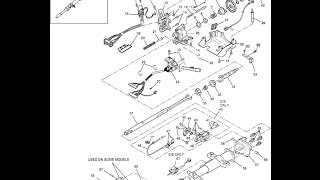

- Can't Shift Out of Park: Your Escalade has a safety feature called a shift interlock that requires the brake to be pressed before you can move the gear selector from Park. If the switch fails, the system doesn't get the signal, and your shifter will be stuck. 🎬 Watch a video on fixing an Escalade stuck in park.
- ABS or StabiliTrak Warning Lights: The vehicle's computer uses the brake switch signal for the anti-lock brake (ABS) and stability systems. A bad signal can trigger warning lights on your dashboard.
Choosing the Right Aftermarket Brake Light Switch
When picking a new switch, you have several options. Not all aftermarket parts are created equal. Here’s a breakdown of the brands to help you choose.
| Brand Tier | Brands | Quality & Cost Assessment |
|---|---|---|
| Tier 1: OEM & Premium Aftermarket | ACDelco, Standard Ignition (SMP) | ACDelco is the original GM parts supplier, so it's the closest you can get to the factory part. However, be aware they have different lines like "Professional" or "Gold" (high-quality) and "Advantage" (budget). Standard Ignition is a highly respected aftermarket brand known for making quality components that often meet or exceed OEM specs. For a critical part like this, these brands are a reliable choice. |
| Tier 2: Standard Aftermarket | Dorman, Rostra | Dorman is a huge name in aftermarket parts. They sometimes re-engineer parts to fix original flaws, but quality can be inconsistent depending on the specific part. Rostra is another established manufacturer of automotive electronics and switches. These brands are generally a good, cost-effective alternative to premium brands. |
| Tier 3: Economy | Replacement, Vemo, various store brands | These are budget-focused brands. While they offer the lowest price, their long-term reliability and materials may not match the higher-tiered brands. They can be a good option if you're on a tight budget, but for the small price difference and the importance of the part, considering a Tier 1 or 2 brand is often a better investment. |
Known Issues, Recalls, and Service Bulletins
For the 1999-2012 model years, there are no major active recalls specifically for the brake light switch itself on the Escalade. However, GM has issued recalls and bulletins for similar issues on other vehicles and model years.
- NHTSA Campaign 99V-025: This older recall affected some 1999 GM trucks for premature brake light switch wear. While it specifically targeted other models, the issue is relevant to the technology of the era. 🎬 See how to replace the switch on 1999-2006 trucks.
- TSB PIT5122C: For 2012 models, GM issued a technical service bulletin related to a "Service Stability" message and cruise control issues tied to the brake pedal position sensor, which replaced the traditional switch design.
Pro Tip: When replacing the switch, it's a good idea to disconnect the battery. After installation, make sure the switch is adjusted correctly. An improperly installed switch can cause the brake lights to stay on or not work at all.
Frequently Asked Questions (FAQ)
Is replacing the brake light switch a DIY job?
Yes, for most people. The switch is located above the brake pedal arm and is usually held in by a clip or a single 10mm bolt. It's in a tight space, so it can be awkward to reach, but it typically doesn't require special tools and can be done in under 30 minutes.
🎬 Watch this step-by-step replacement guide for 2007-2012 models.Do I need to calibrate the new brake light switch?
Most aftermarket switches for the Escalade are self-adjusting or have a simple adjustment procedure. The key is to make sure it's installed correctly so the plunger is fully depressed when the brake pedal is at rest and released as soon as you press the pedal. If installed incorrectly, your brake lights might stay on.
Why did my cruise control stop working but my brake lights are fine?
This is a very common scenario. The brake light switch often has two separate internal circuits: one for the brake lights and one for the cruise control/computer signal. It's possible for the cruise control circuit to fail while the brake light circuit continues to work perfectly.
Should I buy an OEM ACDelco part or is aftermarket okay?
For this part, a high-quality aftermarket brand like Standard Ignition or even a standard one like Dorman is usually fine and can save you money. Some forum users insist on ACDelco to avoid any potential issues with the vehicle's computer. Given the low cost of the part, choosing a premium ACDelco or Standard Ignition part offers peace of mind for a small price increase.
Helpful Videos
Technical Specifications

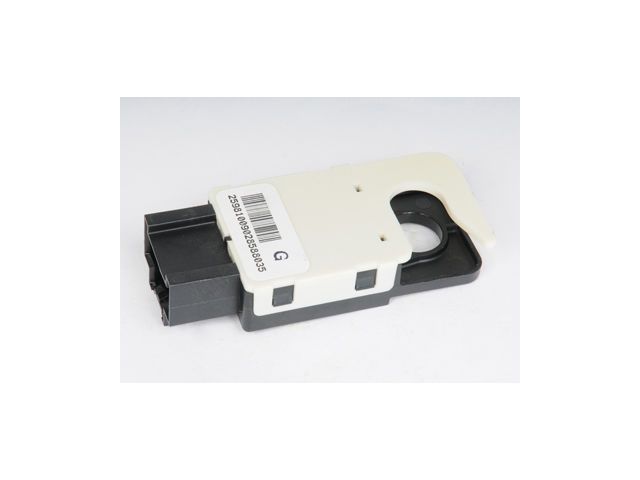

OEM Part Numbers: 25981009 15045983 D1539J
The switch is located on the brake pedal support bracket. It is a plunger-style switch with a multi-pin electrical connector. Depending on the year, it is secured with either a metal clip or a 10mm bolt.
